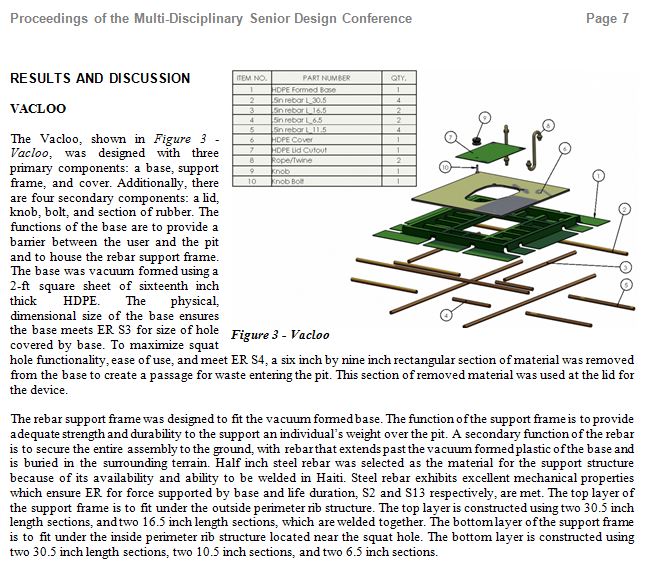

This was the final version of the Vacloo.
This is the actual construction of the Vacloo.

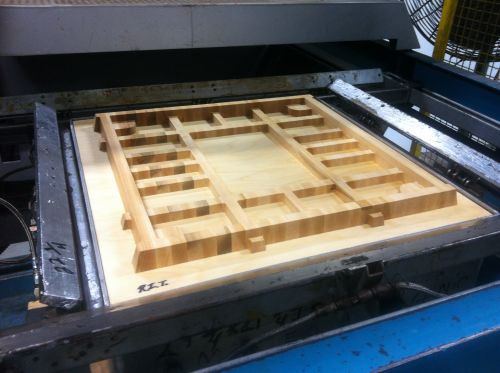

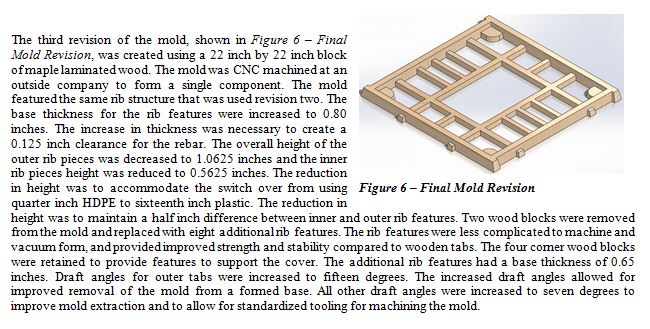

This was the mold that we designed which was used to vacuum form the plastic sheets for the vacloo.

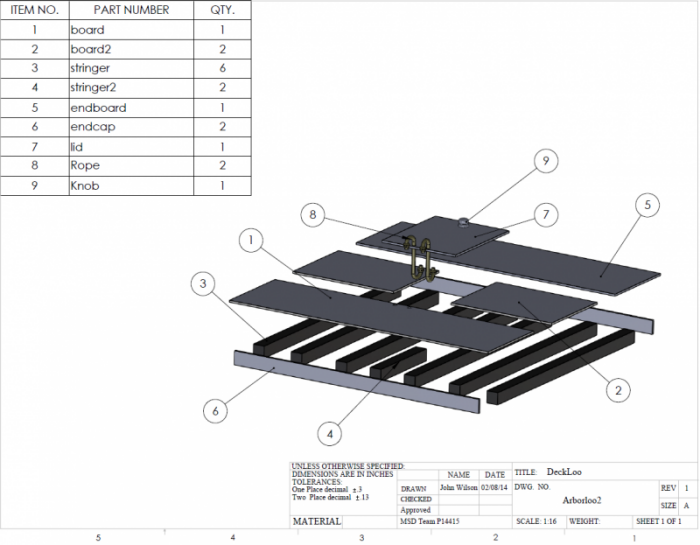

This was the final design for the Deckloo.

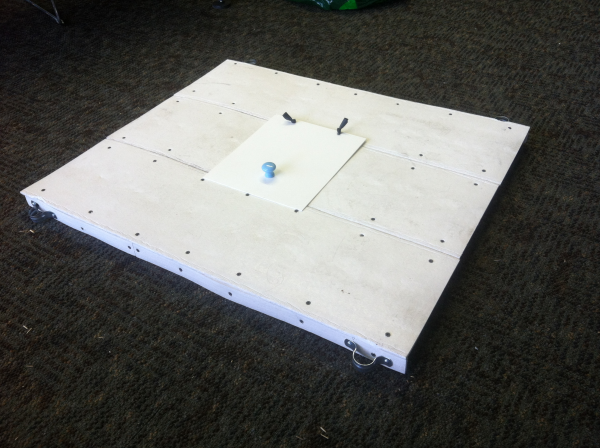

This was the final construction of the Deckloo.

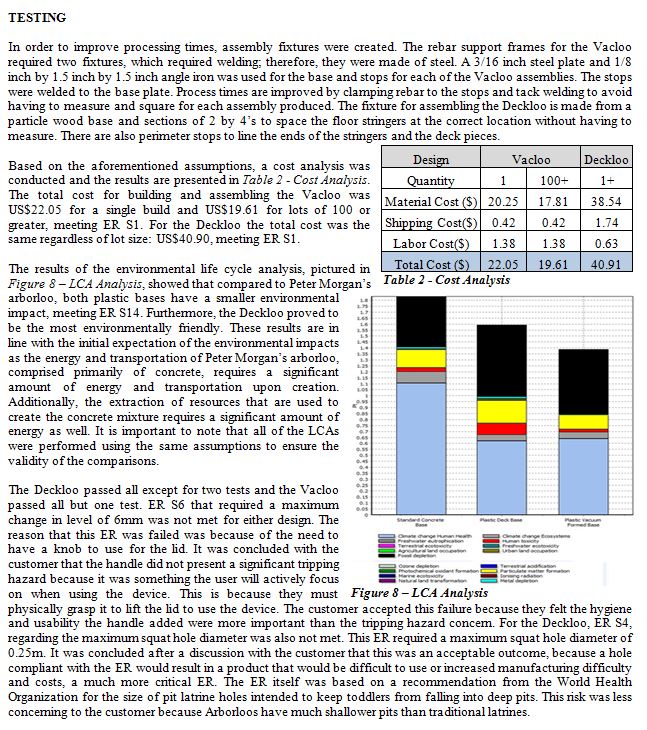

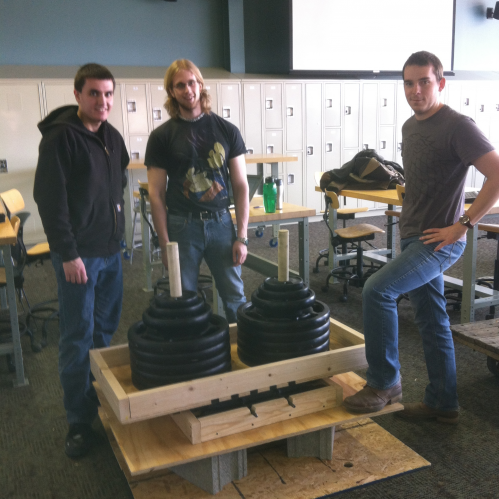

This is a picture of our load testing for our designs. Our Vacloo can been seen under the test fixture that we designed and built for loading, and is currently supporting a total of 572lbs.
gLike

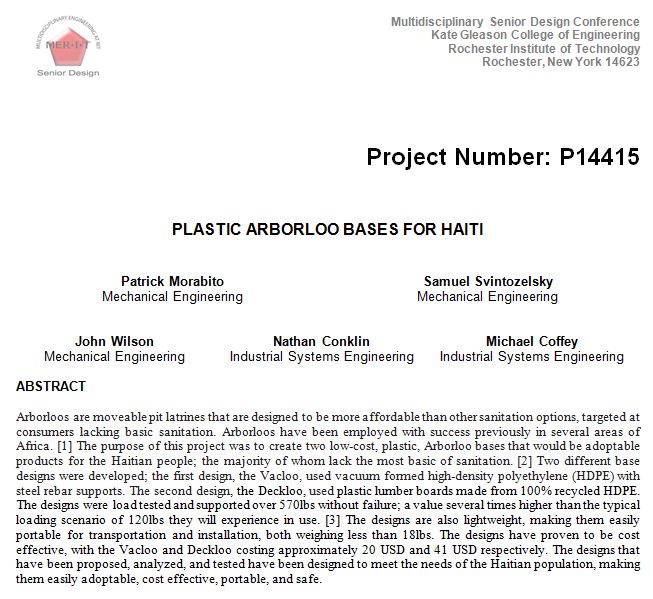

Engineering: Plastic Arborloo Bases
This project was my capstone design project. The purpose was to design two plastic arborloo bases (pit latrines) for Haiti.

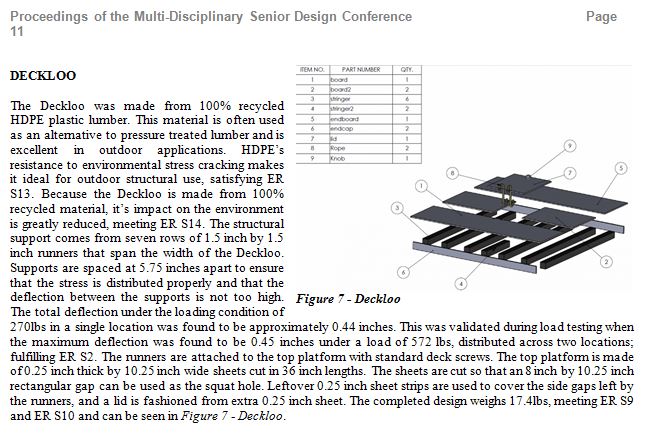

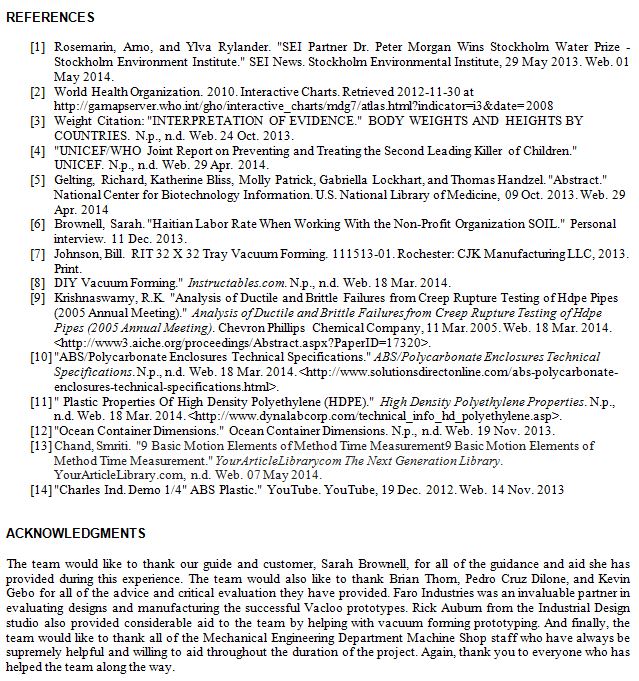

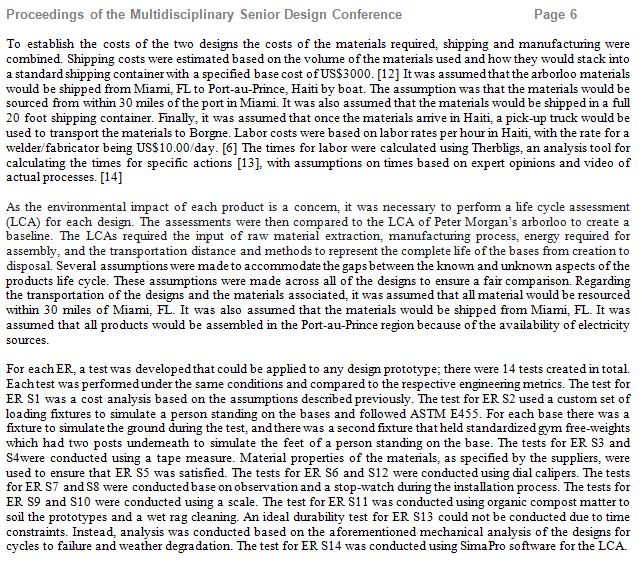

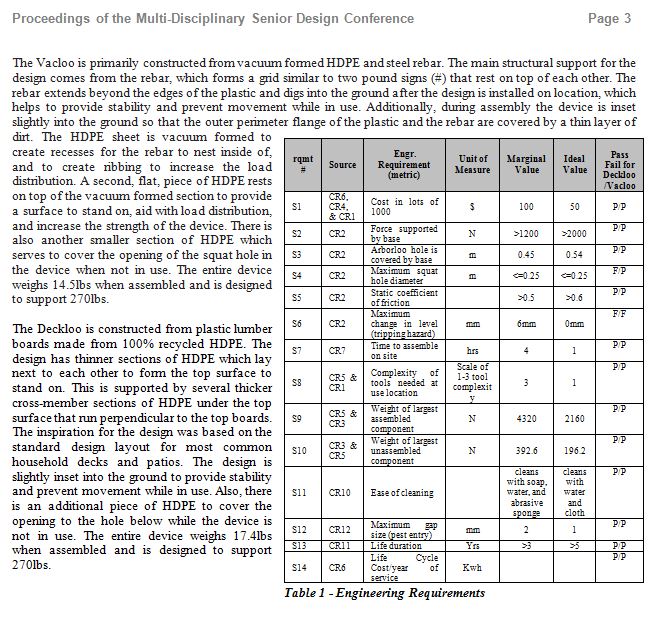

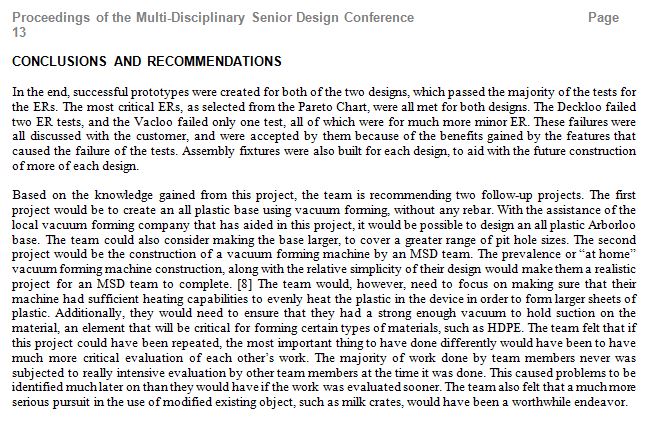

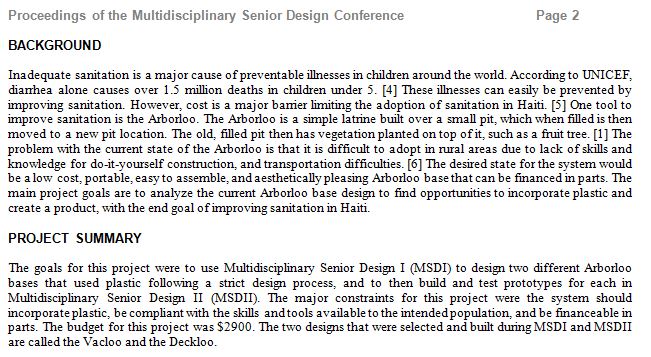

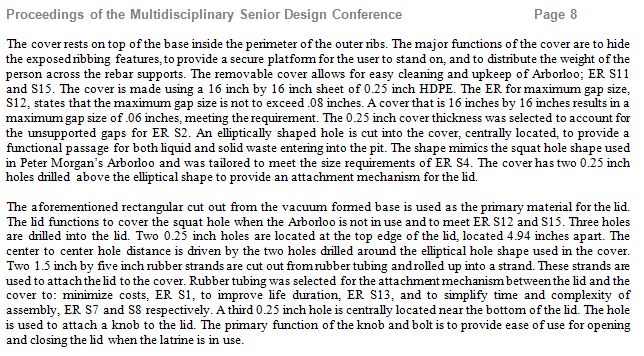

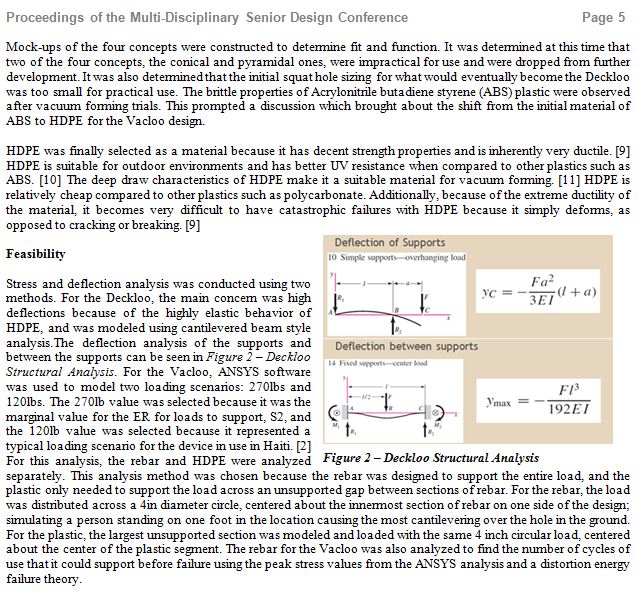

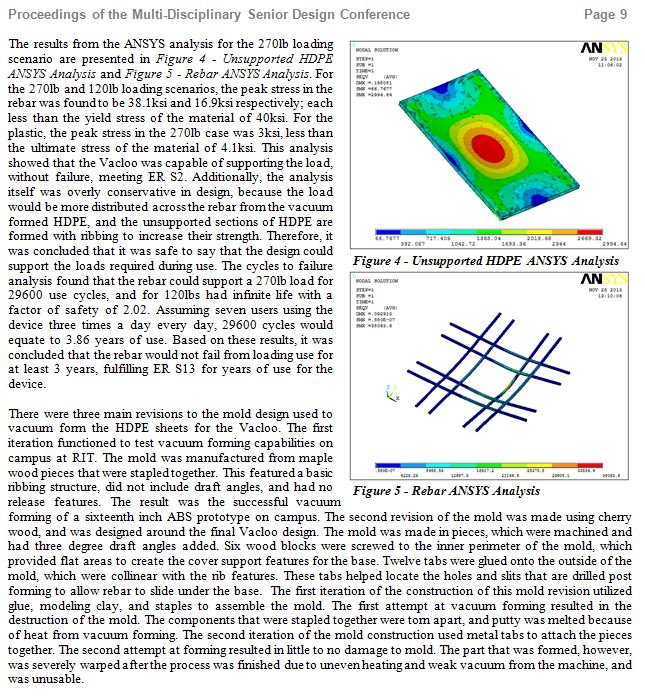

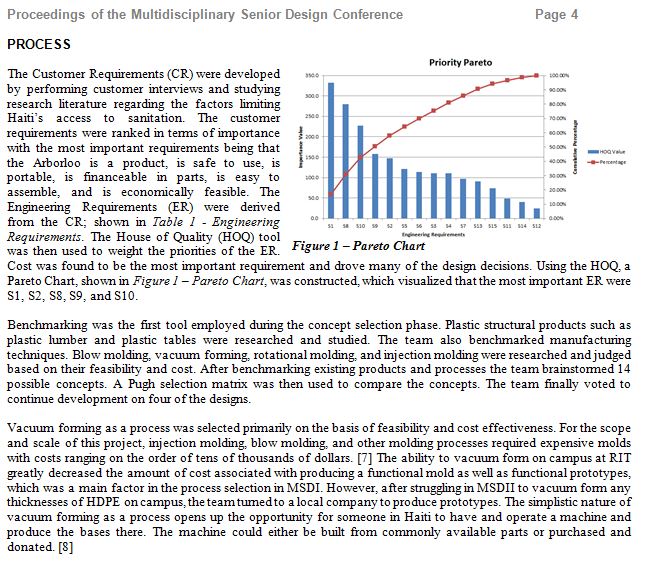

I was the Team Leader for the project, and was responsible for: assigning tasks, running meetings, and the main structural analysis for the project. Presented here is the technical paper for the project which I wrote.
The final products from this project were presented at the 2014 EPA P3: People, Prosperity and the Planet Student Design Competition for Sustainability, and the 2014 RIT Imagination and Creativity Festival.
