Community Rowing Boathouse
Community Rowing Boathouse from Sydney Thiel
Community Rowing Boathouse

completed: 2008
size: 30,000 gsf
construction cost: $14.1m
role: Project Architect
phases of involvement: PD, SD, DD, CD, CA, FFE, close-out
architect: Anmahian Winton Architects
contractor: Consigli
delivery method: CM-at risk

The CRI Boathouse is characterized by rigorous repetition and measured pattern-making. Operable ventilation shutters provide natural light and air-circulation to the boat storage area, a wave-like pattern of louvered panels provide privacy to locker rooms fronting the street, and tempered glass shingles at the detached sculling pavilion serve as a three-dimensional billboard for the organization’s public activities. All systems were developed in a unitized fashion including custom aluminum supporting elements.

Project Awards:
2014 AIA Honor Award
2010 Research + Development Award Citation, Architect Magazine
2009 Harleston Parker Honor Award
2008 Progressive Architecture Award, Architect Magazine

View Website
Harry Parker Boathouse (left) and Ruth Somerville Sculling Pavilion (right). photo by Jane Messenger Photography
Floor Plans
View PDF

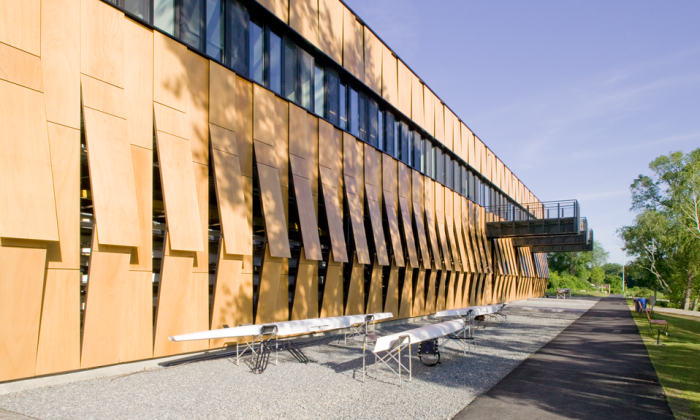

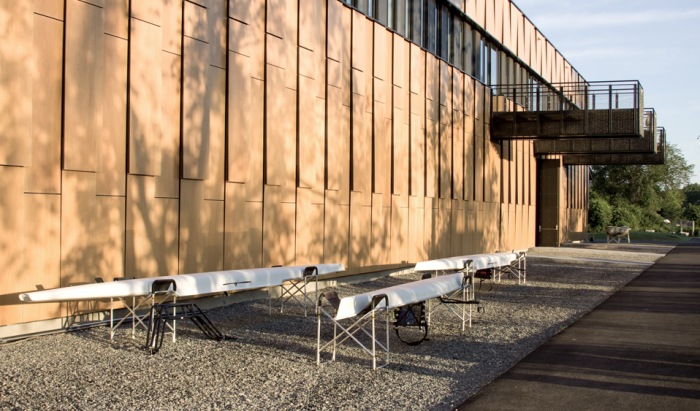

Boat bay ventilation panels (closed position). photo by Jane Messenger Photography
Boat bay ventilation panels (open position). photo by Jane Messenger Photography

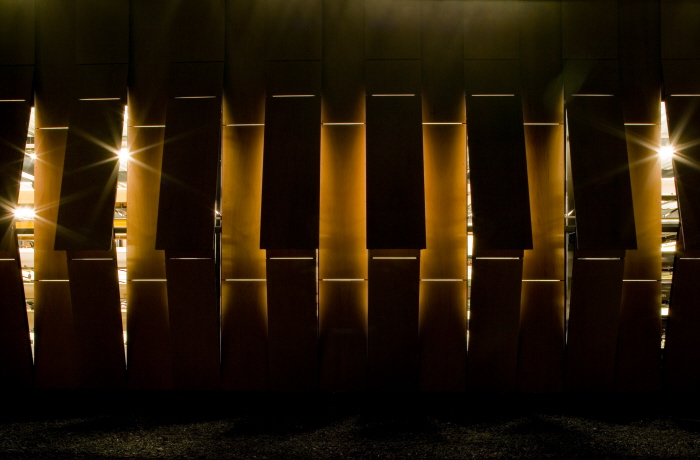

Boat bay ventilation panels (open position at night). photo by Jane Messenger Photography

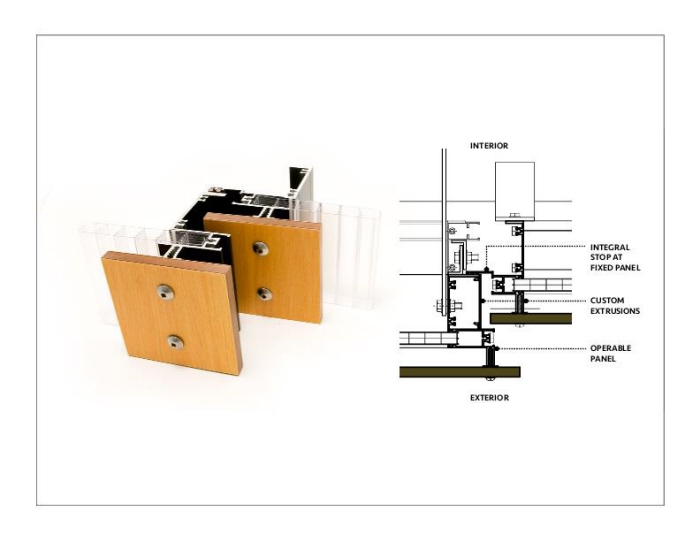

Detail of custom extrusions of operable ventilation panel assembly. photo by Jane Messenger Photography
View PDF

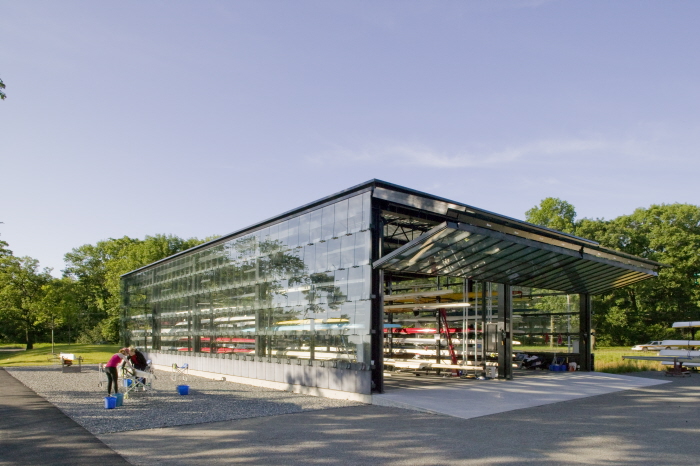

Glass-clad sculling pavilion. photo by Jane Messenger Photography

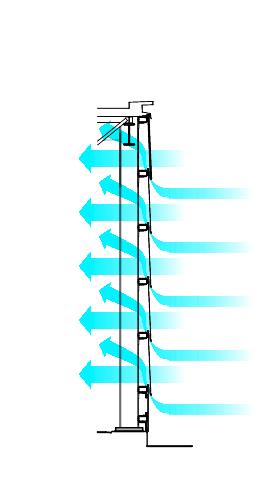

Sculling pavilion wall section and ventilation diagram
View PDF

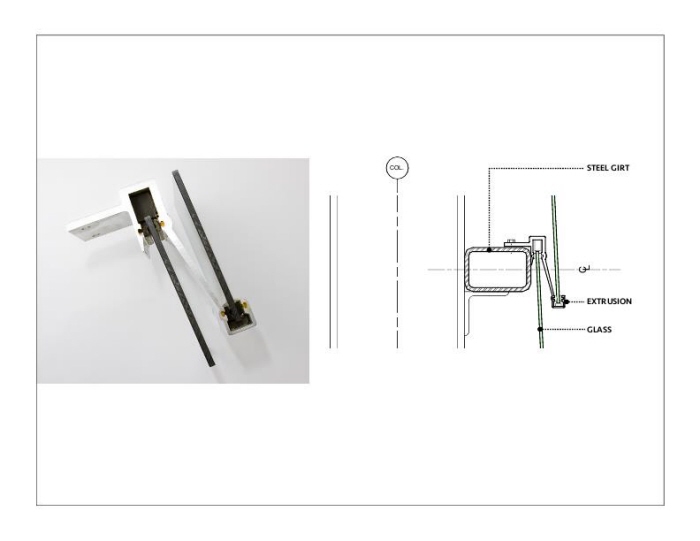

Detail of custom extrusions of glass shingles. photo by Jane Messenger Photography
View PDF
gLike
Community Rowing Boathouse

completed: 2008
size: 30,000 gsf
construction cost: $14.1m
role: Project Architect
phases of involvement: PD, SD, DD, CD, CA, FFE, close-out
architect: Anmahian Winton Architects
contractor: Consigli
delivery method: CM-at risk

The CRI Boathouse is characterized by rigorous repetition and measured pattern-making. Operable ventilation shutters provide natural light and air-circulation to the boat storage area, a wave-like pattern of louvered panels provide privacy to locker rooms fronting the street, and tempered glass shingles at the detached sculling pavilion serve as a three-dimensional billboard for the organization’s public activities. All systems were developed in a unitized fashion including custom aluminum supporting elements.

Project Awards:
2014 AIA Honor Award
2010 Research + Development Award Citation, Architect Magazine
2009 Harleston Parker Honor Award
2008 Progressive Architecture Award, Architect Magazine
