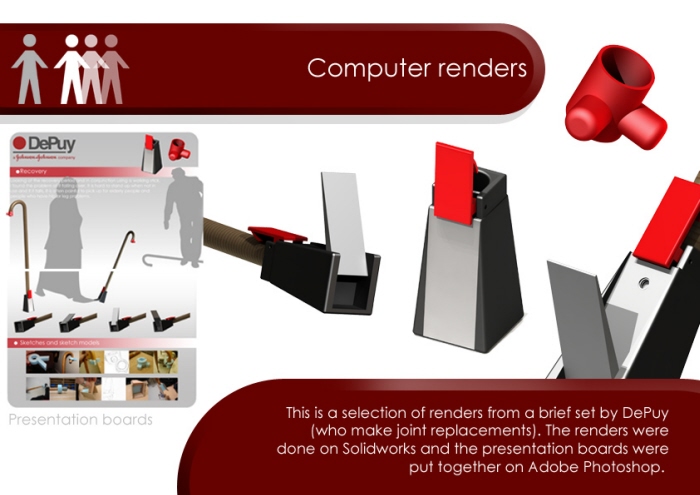

DePuy product renders and boards - This is from a brief which was given to my course by DePuy. It was to design a product to do with either JOINT REPLACEMENT or RECOVERY.
I decided to develop a walking stick, which is very difficult to knock over if leaned against something but if it was dropped was easily retrieved.
It’s designed to be used by hip and knee replacement patients along with the elderly and disabled people.
Halo Ketal 01 - This was a first year project on boiling water.
The product had a constant halo light on the exterior of the ketal, this was so you always knew how much water was in the jug.
I rendered ithis model on solid works.

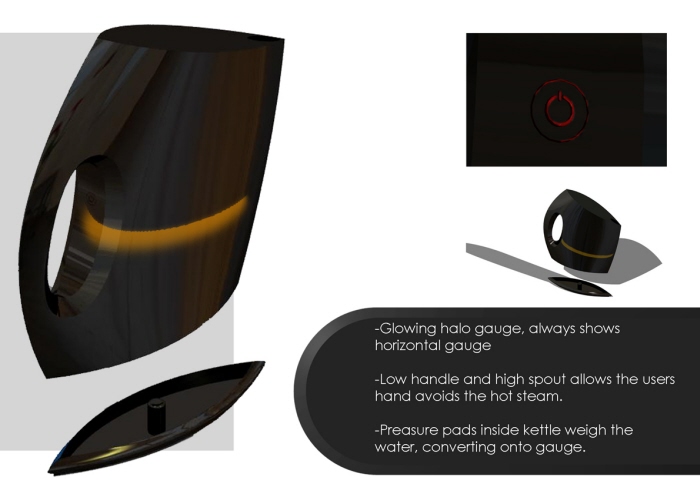

Halo Ketal 02 - This sheet shows some detail of the sleek design. This was one of my early Solidworks models, the presentation was done on Photoshop.

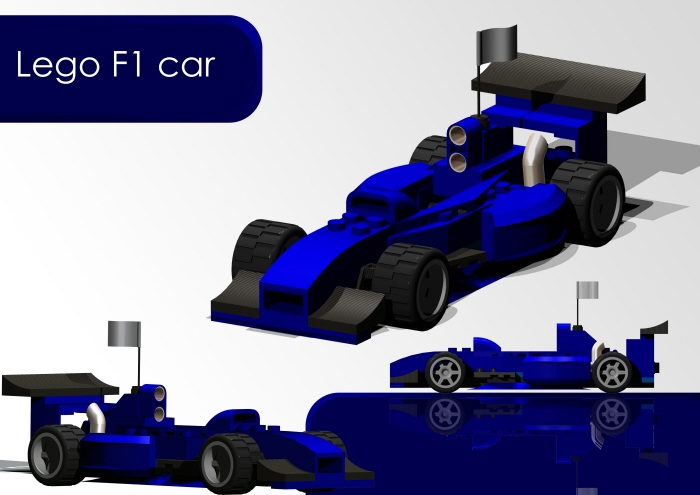

LEGO F1 car - This is a Solidworks model which i did in my 1st year. I made all the parts seperatly and assembled them. I also applied materials to each part.

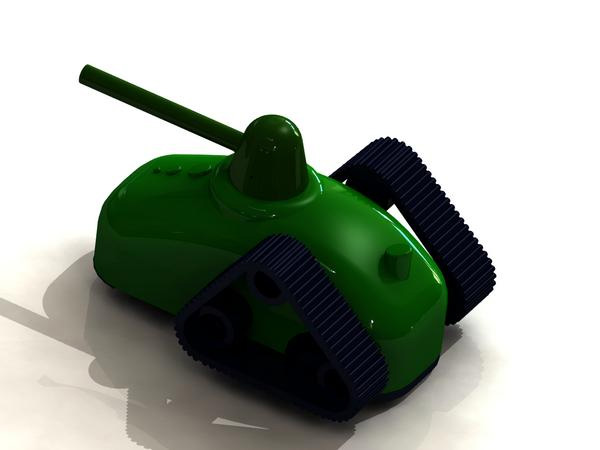

Tank Crane - This is a crane which i helped design, we did it in a group of 4. This was a visual produced using the CAD model on solidworks.

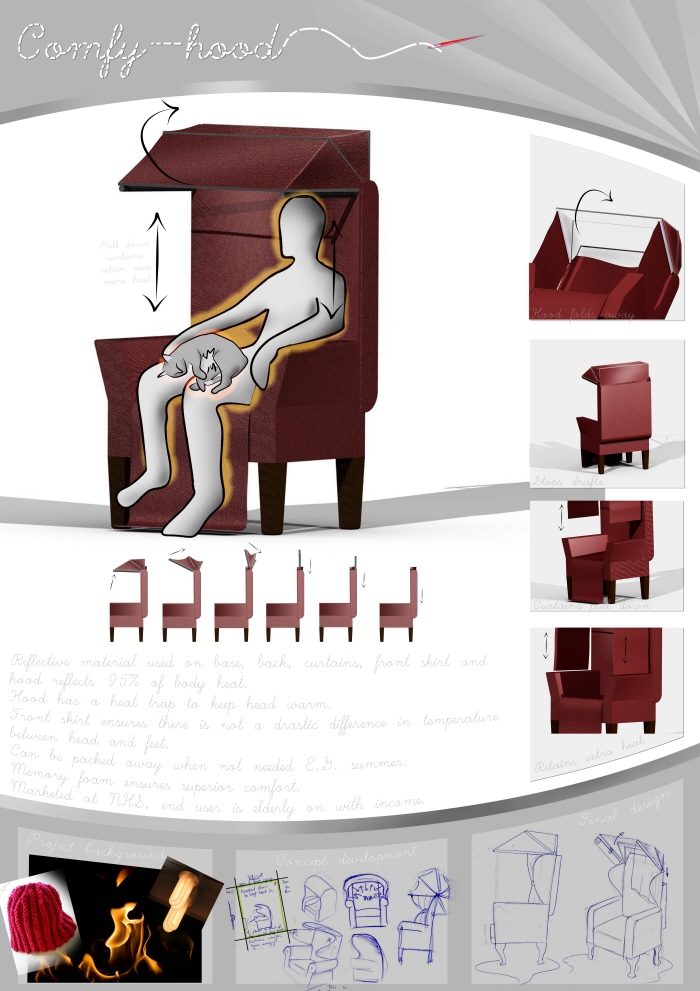

Minor project final year - This is a hooded chair to retain heat which i designed in my final year. I did testing and it worked extremely well, it was marketed at the NHS.

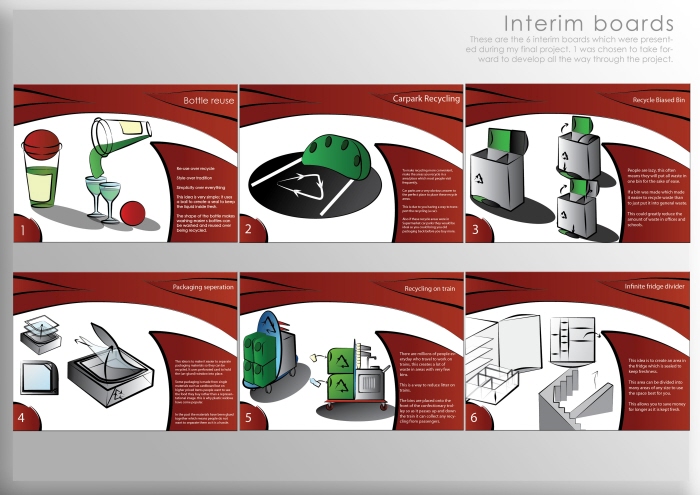

Illustrator images - These are my interim boards for my final project in my 3rd year. This was done to practice my illustrator skills
