Ground Floor Bubble Diagram
Ground Floor Block Diagram

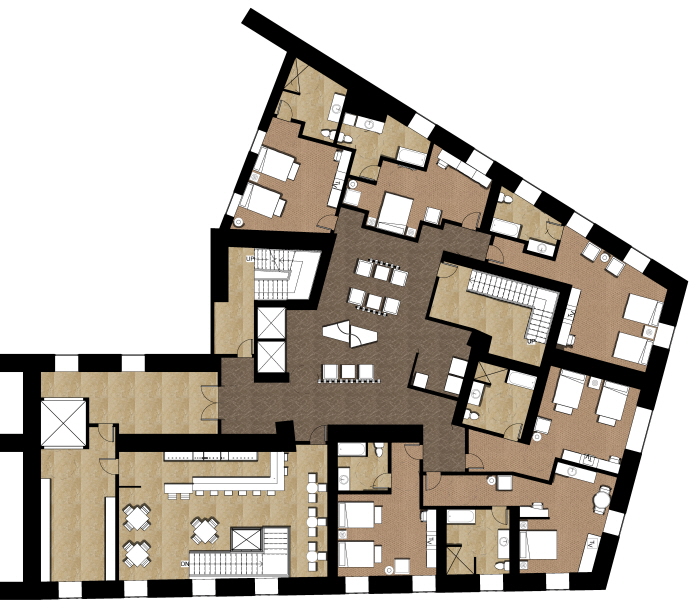

Ground Floor Floor Plan
Second & Third Floor Bubble Diagram

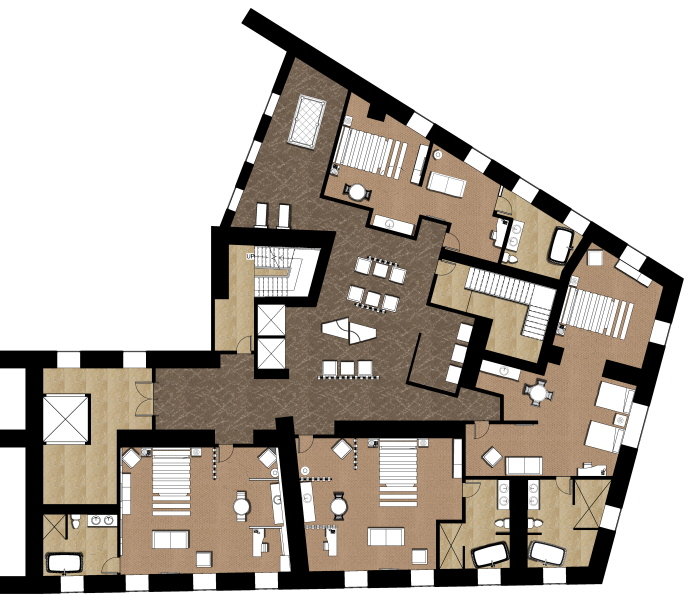

Second & Third Floor Plan
Fourth & Fifth Floor Bubble Diagram
Fourth & Fifth Floor Plan
Hotel Lobby Rendered Perspective
Restaurant Rendered Perspective
Bar Rendered Perspective
Enlarged Suite Rendered Perspective
Enlarged Suite Rendered Perspective

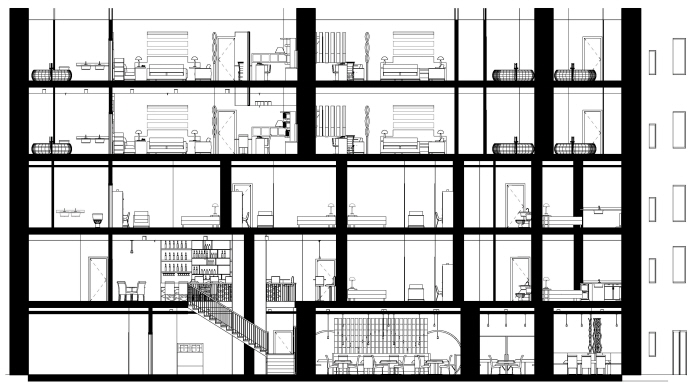

Building Section

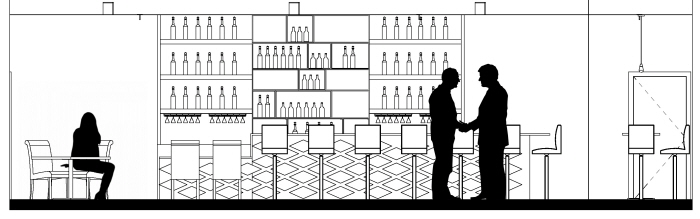

Bar Elevation

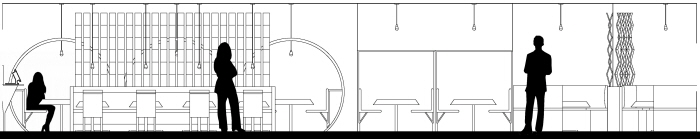

Restaurant Elevation

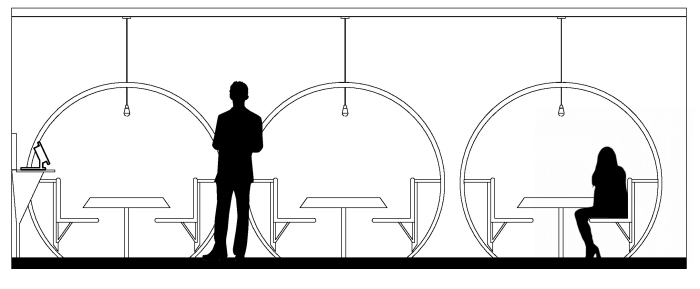

Barrel Booth Elevation

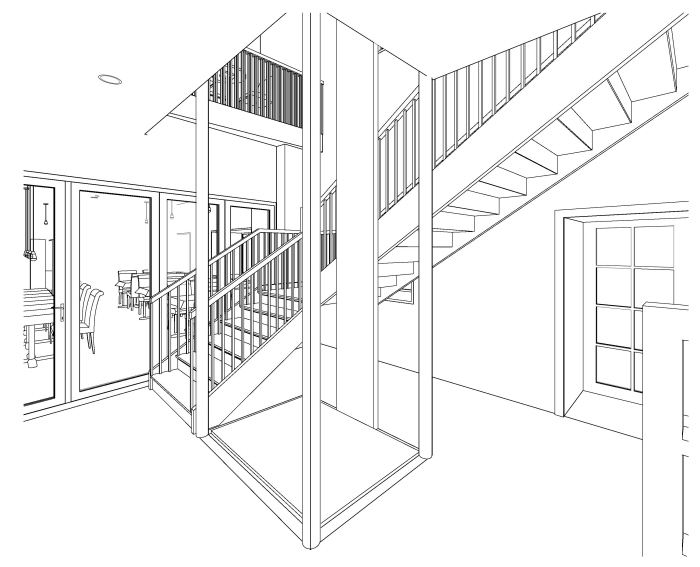

This line perspective displays an elevator shoot that can easily transport someone who cannot use the stairs. When the restaurant closes at night, customers can still get to the bar by using the entrance from the street. The glass sliding doors shut the restaurant from the public but still have access to the bathroom.

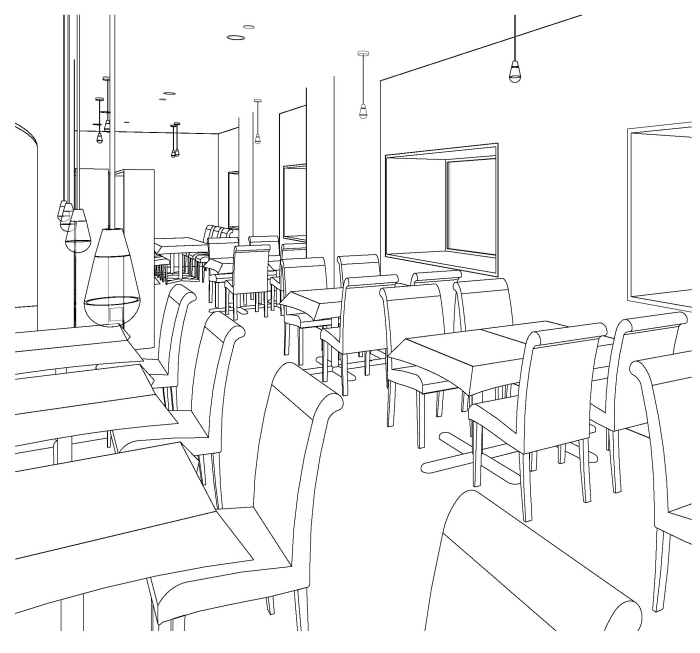

Restaurant Line Perspective
Hand Sketch of the Coffee Shop
gLike
Hospitality: Boutique Hotel & Restaurant
My concept for this project is geometry. I used geometric shapes for the custom built furniture and wall features throughout the hotel and restaurant. The second and third floors are family style suites while the fourth and fifth floors are exclusive suites for two people. The restaurant and bar are designed to be accessed from inside and outside of the hotel.
Skills Used: Revit, Photoshop, & Illustrator
