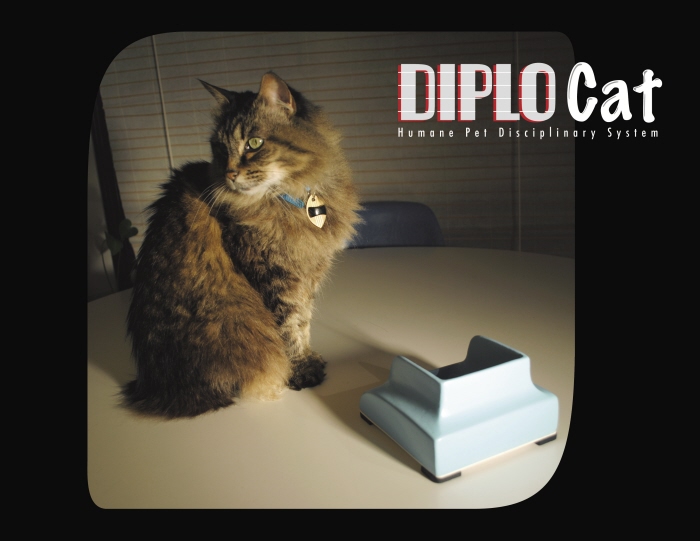

Diplocat System Logo - Diplocat is a pet disciplinary system, which uses proximity sensors--built into a collar tag and food dish--and a noise deterrent--emitted from the collar tag--to keep one pet from stealing another's food. The collars can also be used in pairs, to keep pets from fighting each other.
Design Opportunities - As a result of interviewing and observing three couples in three different households, these two problems stood out as important issues that I wanted to try and solve. The statements on the right are my initial ideas for solving these problems and I used these as a starting point for sketching out initial concepts.
Illustrations of Two Issue Sequences - These comic-strip style illustrations were drawn in pen and finished in photoshop. I wanted to present the two issues in a way that wasn't really possible through observational photographs.
Early Design Development - These sketches illustrate some of my initial attempts to solve the primary and secondary issues, using trap doors, modular dishes, collar sensors and protective lids.
More Design Development - Two early concepts show a bubble top lid, activated by a proximity sensor and a larger unit with a hopper and a trap door. The trap door is to clean up any excess food, left behind after a feeding.
Later Design Development - I eventually realized that the dish lid was unnecessary if an ultrasonic noise was activated by the dish sensor, instead of a lid release, which is why these dish concepts are lidless.

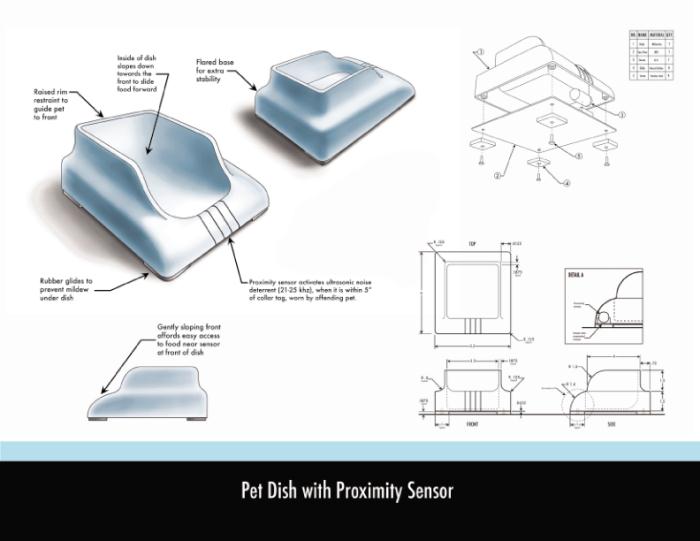

Digital and Technical Drawings of Dish - This final concept was rated the most aesthetically pleasing out of three that I presented to people in an online poll. With the removal of the 4 screws that secure the glides and baseplate to the body, the dish can be washed and the sensor battery can be changed.
View PDF

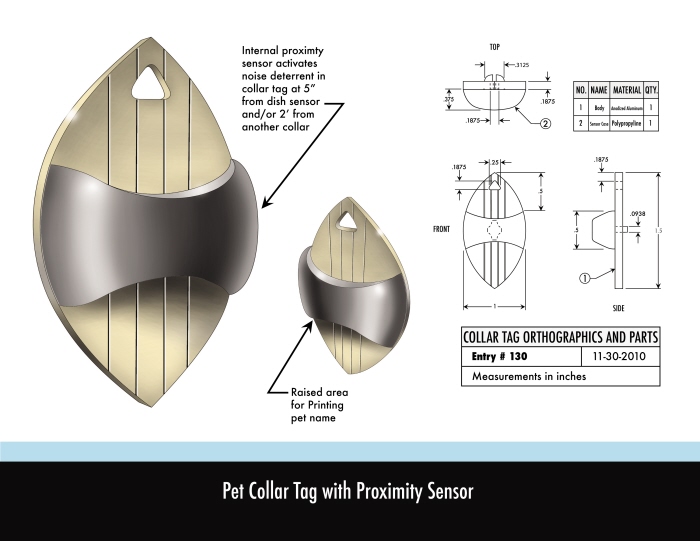

Collar Tag Digital Renderings and Orthographics
Collar Tag Sensor Removal and Assembly Sequence - This prototype is snapped together using a pinch-and-twist action to pop the sensor into the quatrefoil-shaped cutout in the collar tag plate.

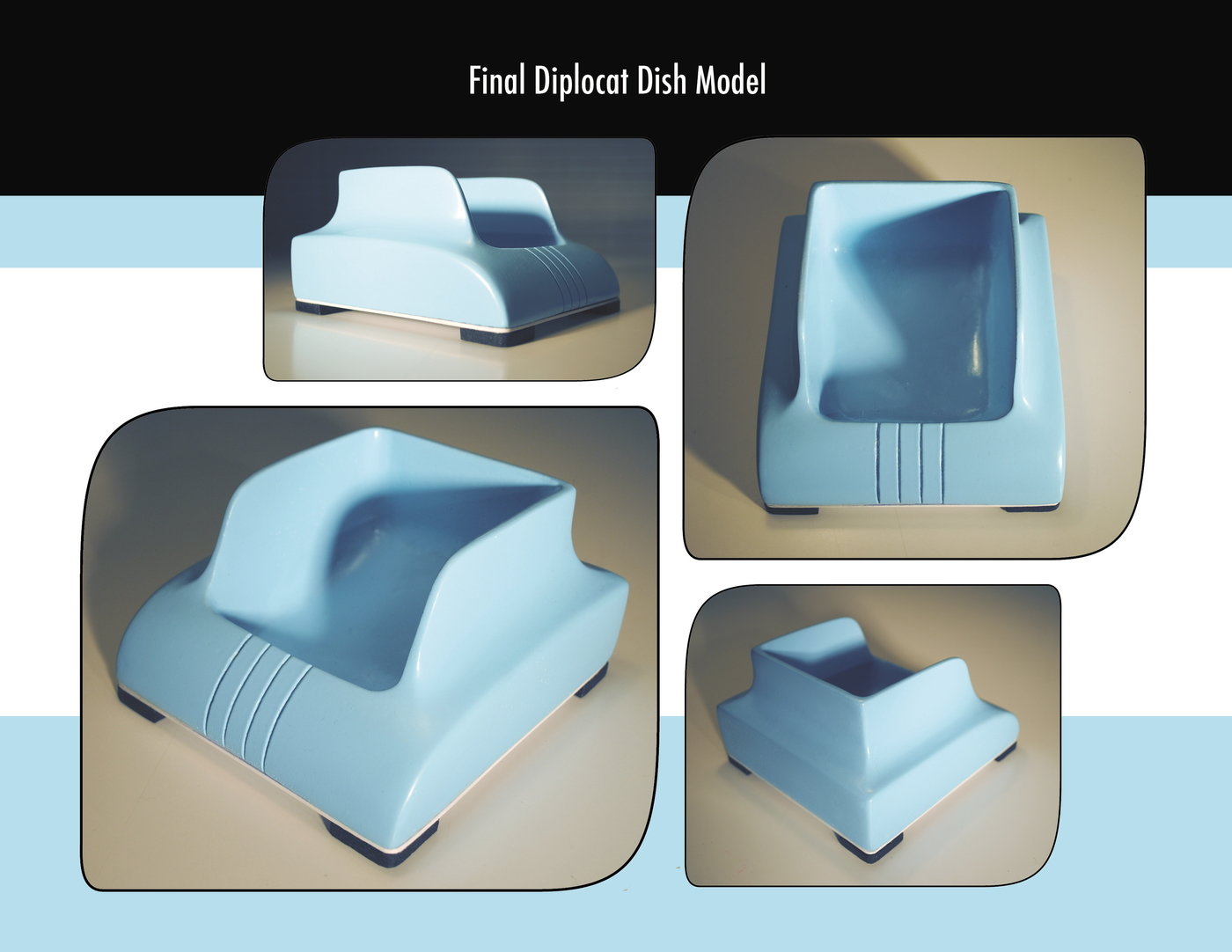

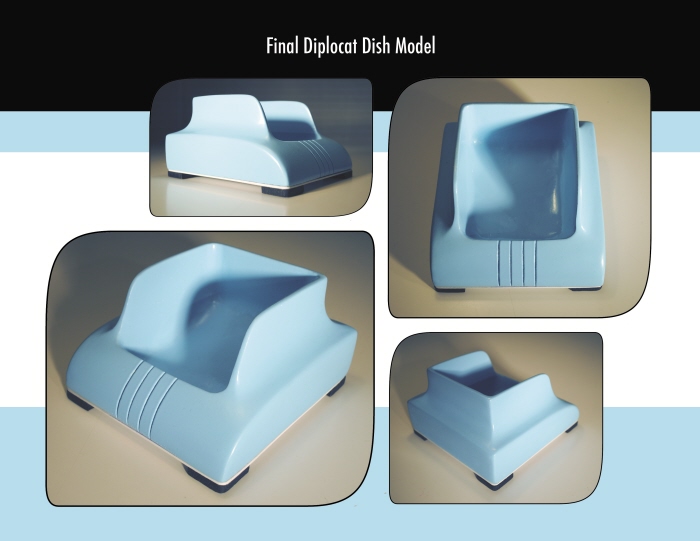

Final Dish Model - This model is made of a high density, polyurethane foam with a polystyrene base. The foam was milled, sanded, coated in primer and painted.

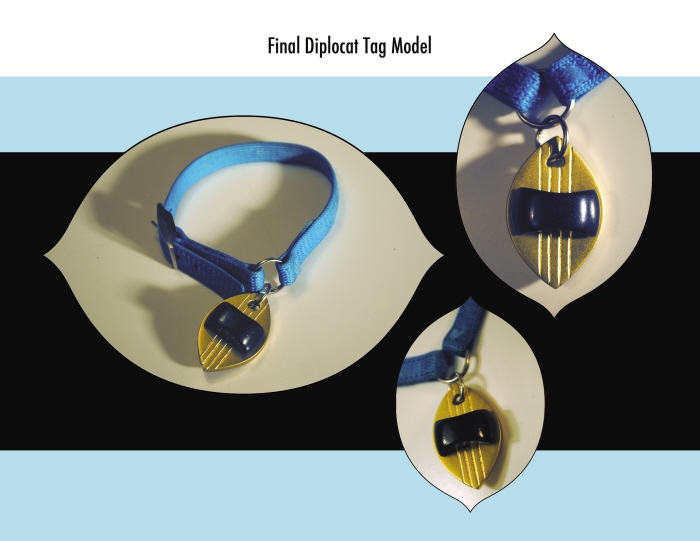

Final Collar Tag Model - This model is also made out of polystyrene--the back plate--and polyurethane foam--the sensor.
Solution Sequences
Diplocat Ad - A Pet Disciplinary system, which uses proximity sensors--built into a collar tag and food dish--to activate a noise deterrent--emitted from the collar tag--, which keeps one pet from stealing another's food. The collars can also be used in pairs, to keep pets from fighting each other.
