An individual panel of the bridge.

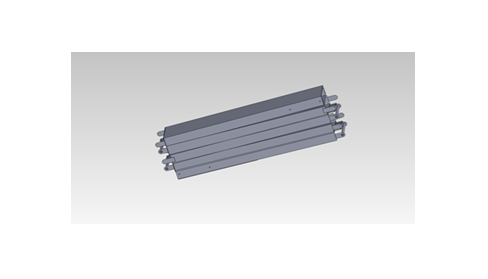

The bridge in the folded form

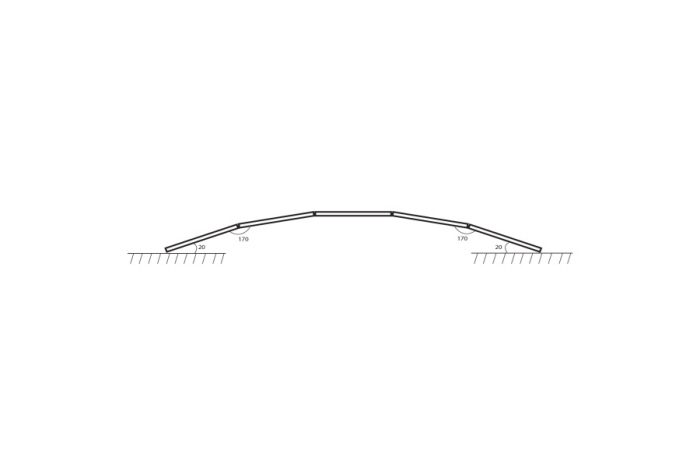

schematic diagram of the working of the bridge.
The base of the bridge which shows the support and the folding mechanism.
The bridge in the fully deployed form .
The folding and locking mechanism of the bridge.
Folding of the bridge.
gLike
DRDO Project- Bridge Design 2
This project was also part of my Internship at DRDO . This is the concept model for a portable bridge that can be used by the infantry for crossing crevasses in the ice.
the bridge which spans 7.5 m consists of 5 panels, which when not in use can be folded into a single panel.
