Desk Clock Design

Designed, 3D-modeled, and created on a CNC mill. My design of a foldable desk clock able to stand in an open position and lay in a closed position

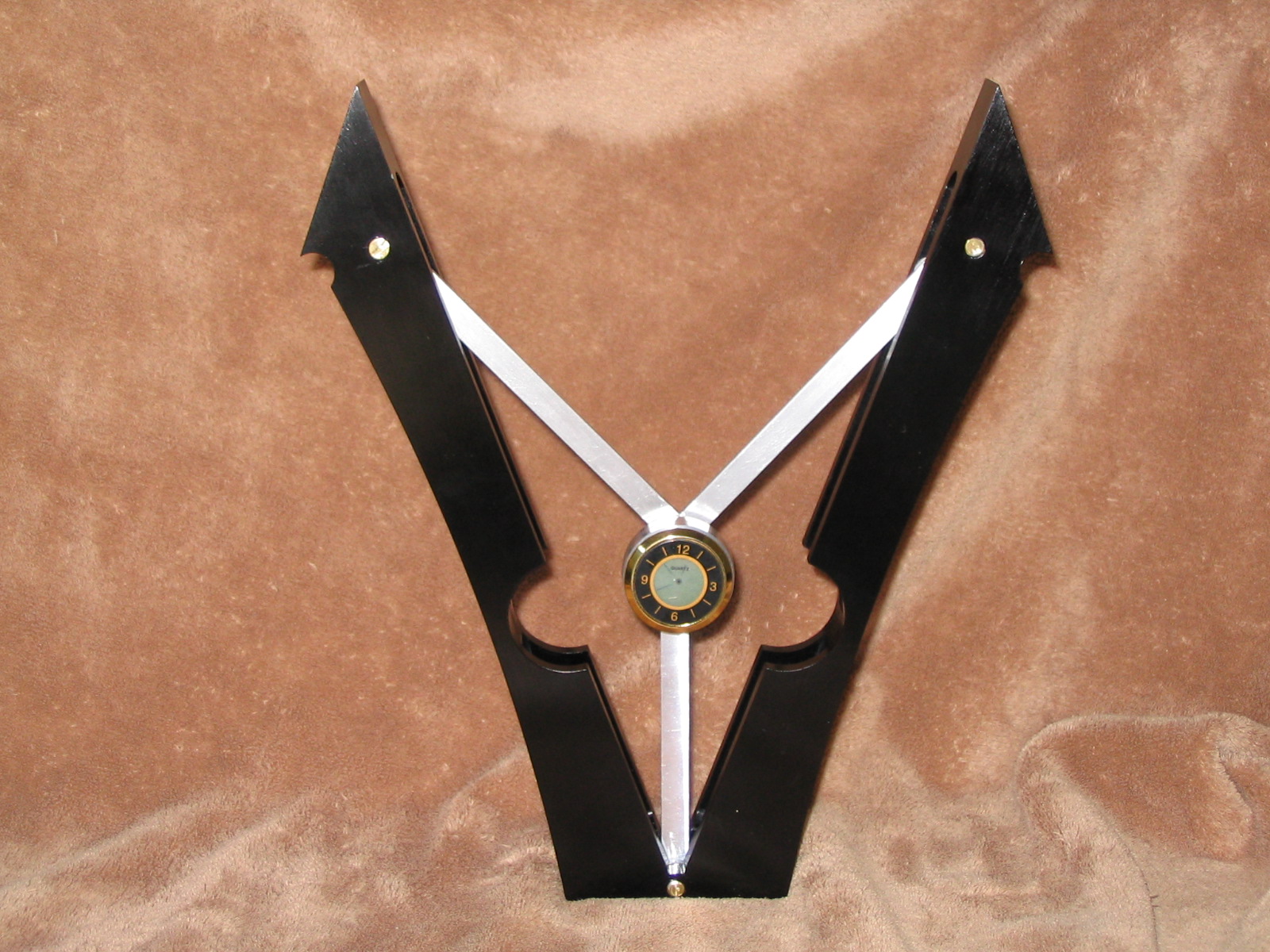

Finished desk clock opened front view

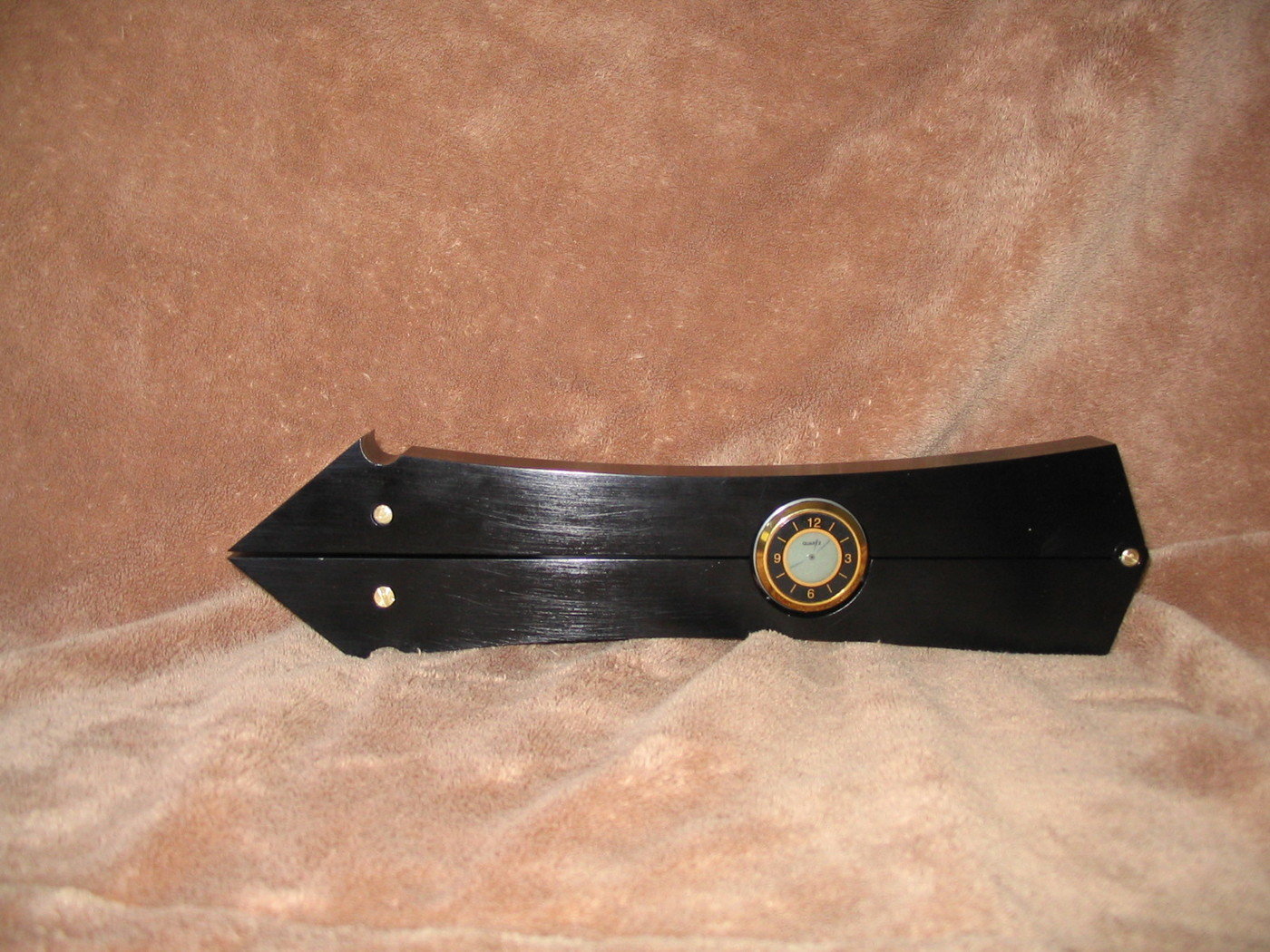

Folding Desk Clock - A clock about the size of a silver dollar will be placed into to center holder. It can fold down and lie on its side, or unfold and stand open. It can be placed on a desktop or counter. As the holder is opened or closed the clock will rotate to the proper display position.
View PDF
Folding Desk Clock - A clock about the size of a silver dollar will be placed into to center holder. It can fold down and lie on its side, or unfold and stand open. It can be placed on a desktop or counter.
View PDF
Folding Desk Clock - A clock about the size of a silver dollar will be placed into to center holder. It can fold down and lie on its side, or unfold and stand open. It can be placed on a desktop or counter.
View PDF

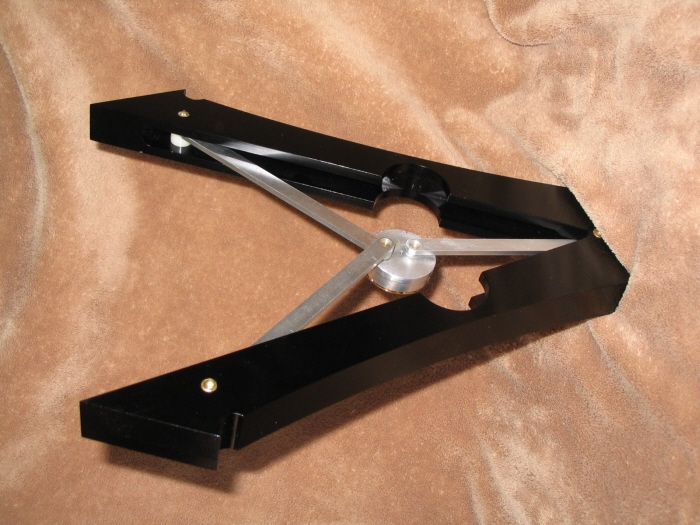

Finished Desk Clock Pic's - After I designed on Solidworks I programmed with MasterCam and machined the parts and assembled.
Finished Desk Clock Pic's - After I designed on Solidworks I programmed with MasterCam and machined the parts and assembled.

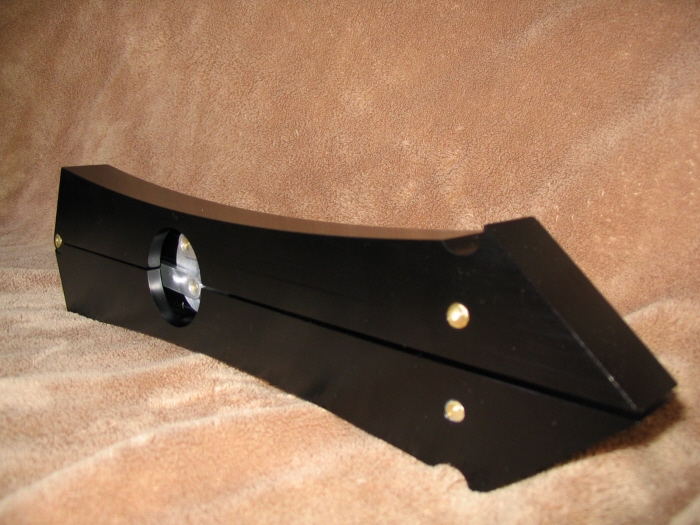

Finished desk clock opened back view
