Pool light lens was developed in Grasshopper. Spheres change in depth depending on distance from edge

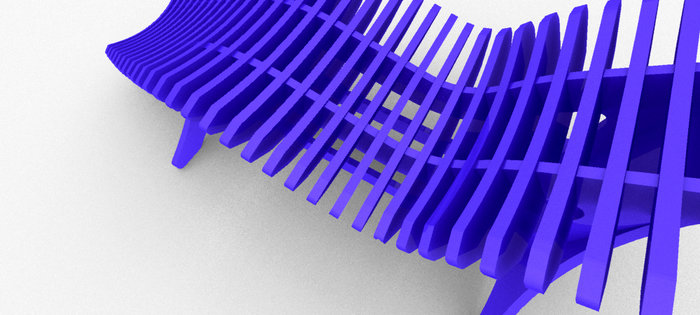

Recliner intended to be CNC cut from plywood

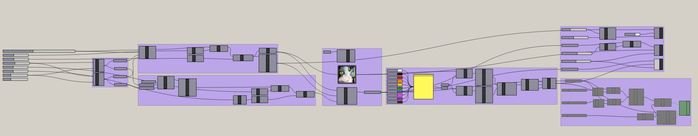

Recliner definition allows complete parametric control

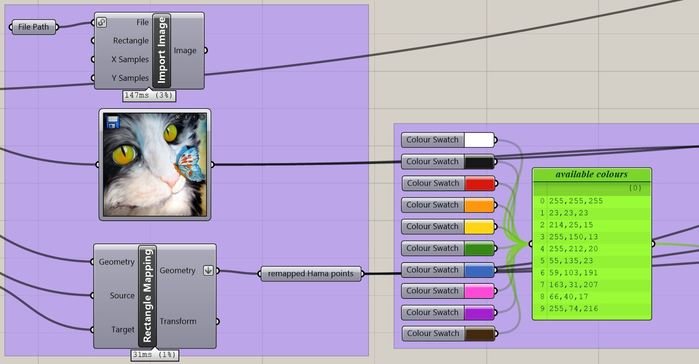

HAMA bead definition turns input image into printable HAMA bead instruction sheet for kids
Input photo shown left, available real world bead colours shown right. GH definition samples the image and selects the closest available colour.
HAMA bead instruction page is 1:1 scale, and can be printed and placed under the clear panel to replicate the image with beads. Code allows for multiple panel images in order to improve resolution.
PIXALUX light panels use my home made dot matrix code to achieve a flat light output from edgelit acrylic panels
Products placed on PIXALUX shelves float - they have no shadow

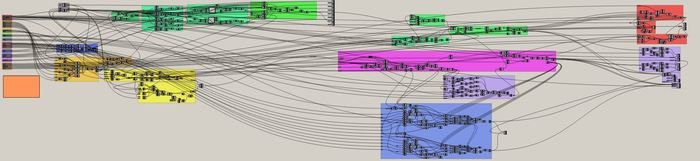

An edited version of my GH code can cope with curved panel shapes. Parametric control over density and change in density with distance from edge.
McDonald's logo prototype shows brighter output further from the edge, which is a good problem to have.
