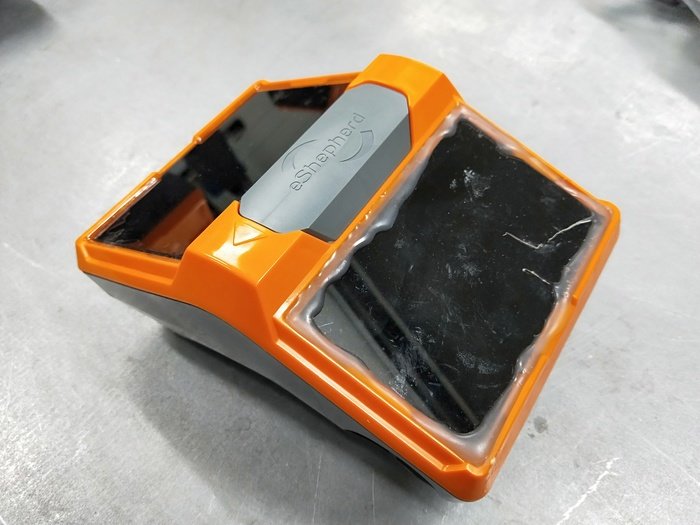

I built the CAD for the Eshepherd enclosure in Onshape (this is NOT my design work, just the 3D CAD)

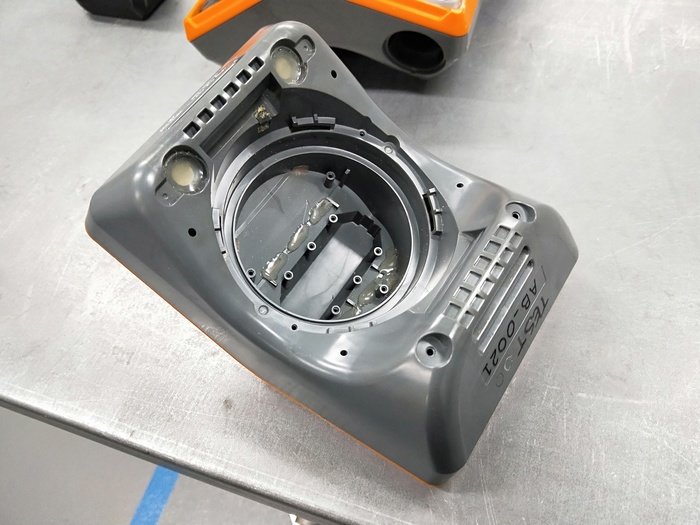

Underside view showing some internal details. Complex shutoff required to get electrode mount points into LOD

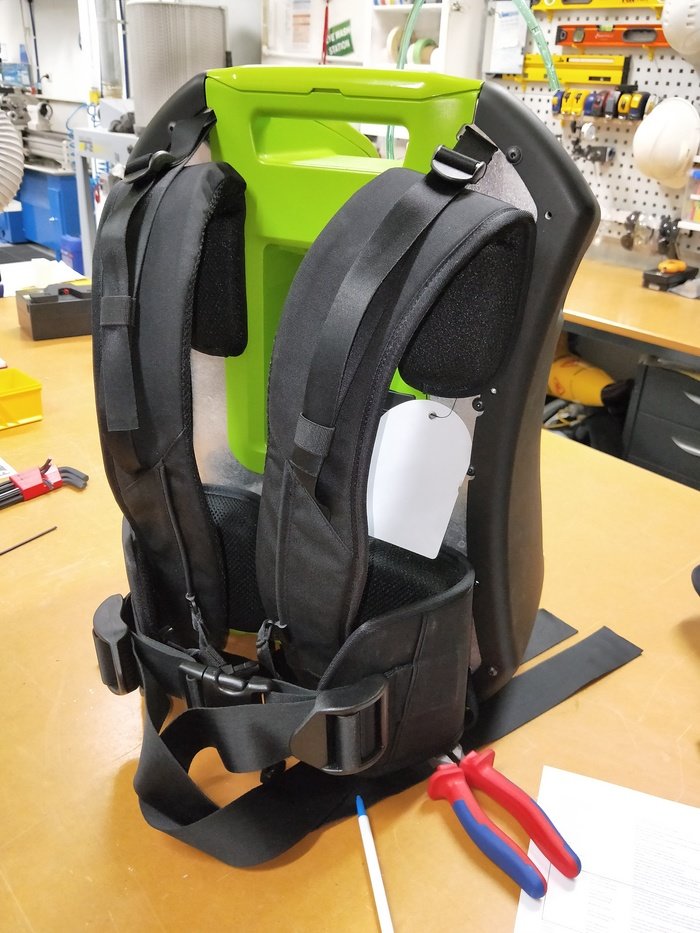

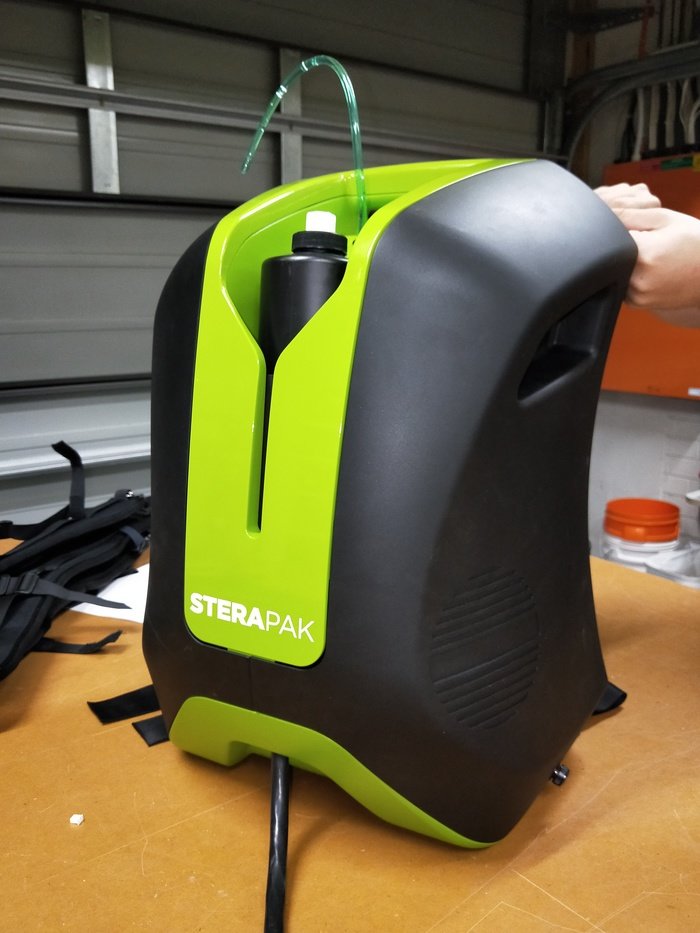

First sample of a backpack spraying product. I developed the internal sheetmetal components, mounting positions for compressor, LCD and other OEM parts, ans also worked on the enclosure CAD
I made the CAD for all the enclosure elements on this product, this is NOT my design.

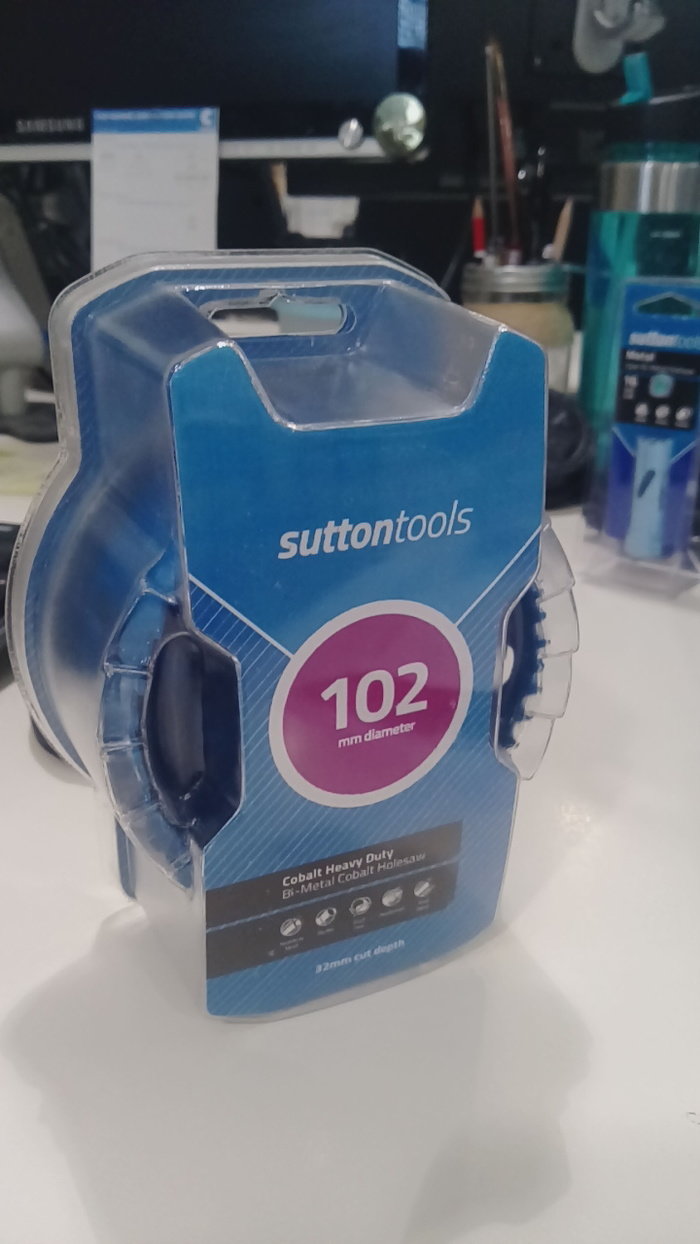

Packaging for Sutton hole saws, now in Bunnings stores. I made the CAD for the whole range.

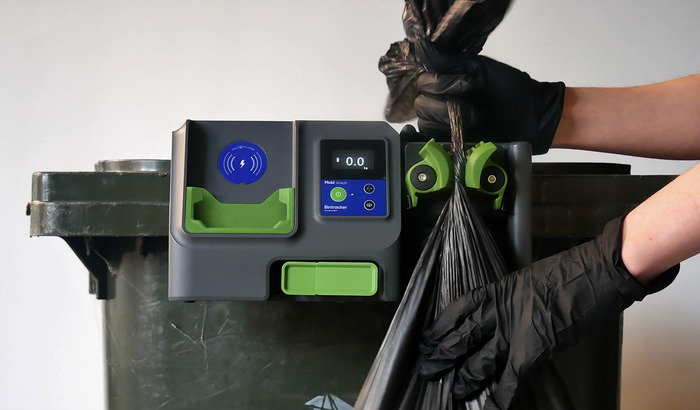

showing the bag grippers

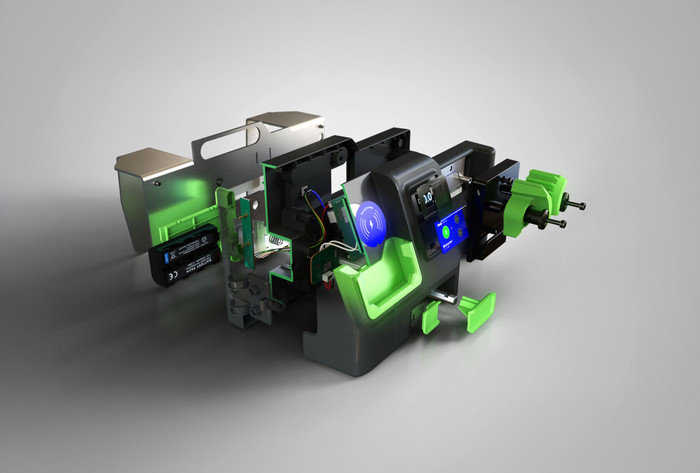

Exploded render. I worked mostly on mechanical components (clamps, sheetmetal etc) but was also involved in the enclosure design

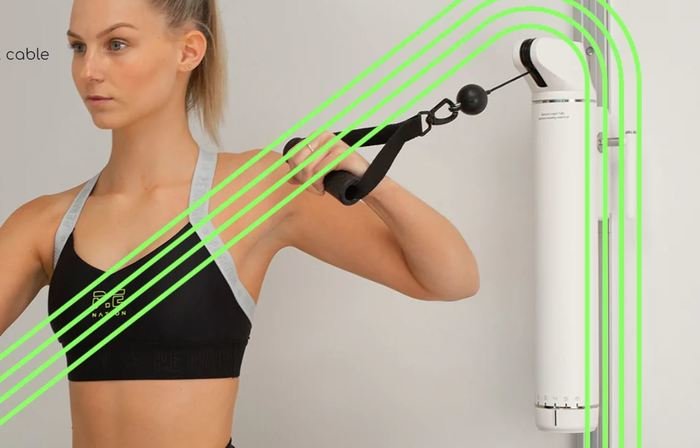

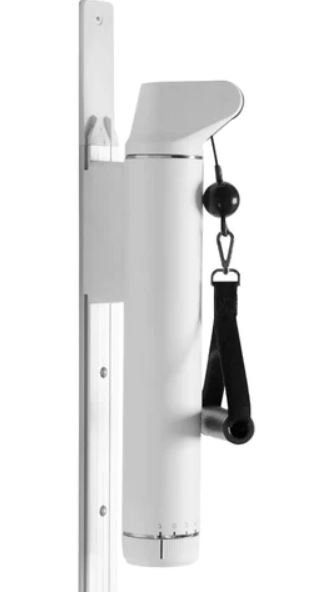

Adaptfit Cable trainer for fitness. Users can select resistance level by rotating the cap at the bottom. Lead engineer for internal mechanism and co-named in patent for this product.

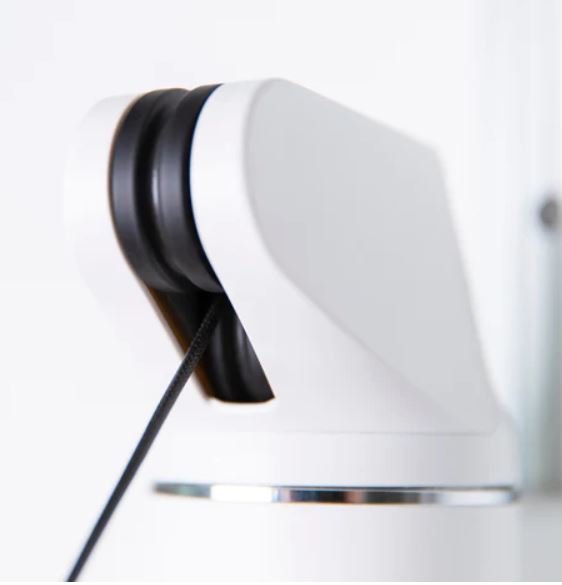

Cowling is designed to be moulded as a single part
Unit is attached to wall bracket and can be re-positioned at different heights for different routines
gLike
Product Design: CAD and structural engineering
