Rendering ideas for the handle
Rendering ideas for the handle

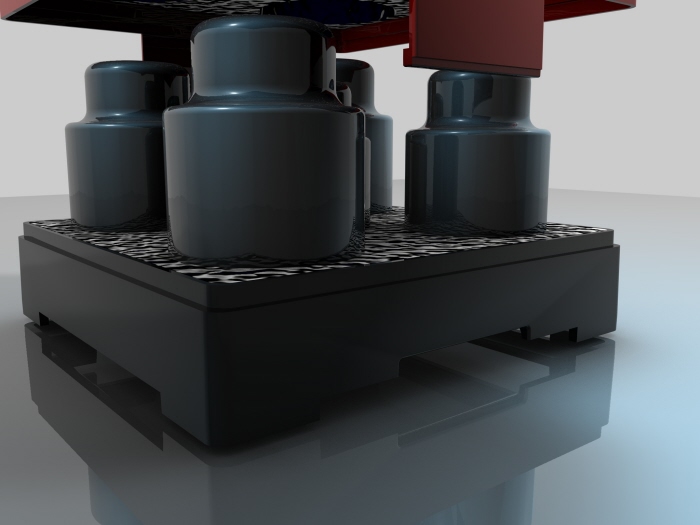

Socket rendering
A sample cover page from a magazine selling the product

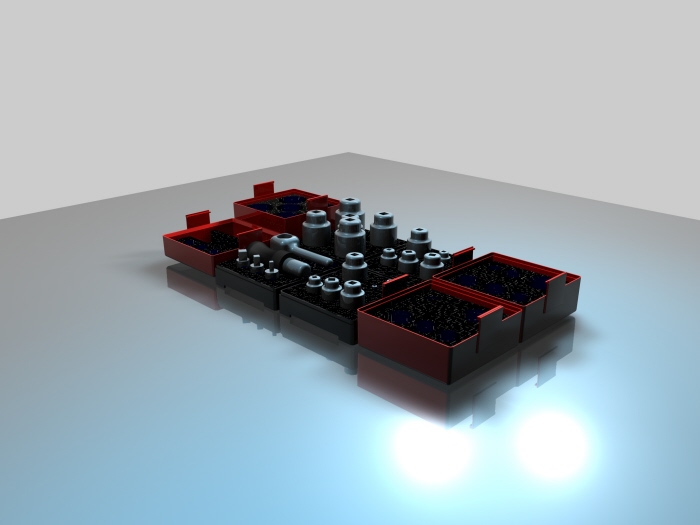

The four different versions of the socket set rendered in Cinema 4D
The four different versions of the socket set opened up and rendered in Cinema 4D
The four different versions of the socket set opened up and rendered in Cinema 4D
The four different versions of the socket set opened up and rendered in Cinema 4D
The four different versions of the socket set opened up and rendered in Cinema 4D
Opening the socket set
Rendered and photoshopped image of the sets in a garage
gLike
Socket Set
A project to show the use of configurations in Solidworks. The ratchet set was constructed in Solidworks with all appropriate formulas and when the hexagon size is updated for the appropriate bolt size the ratchet head updates itself. A container for the set was then built from the configurations and designed to be bought separately where required and can stack on top of each other.
The sets were then rendered in Cinema4D and finally advertising was made in photoshop.
