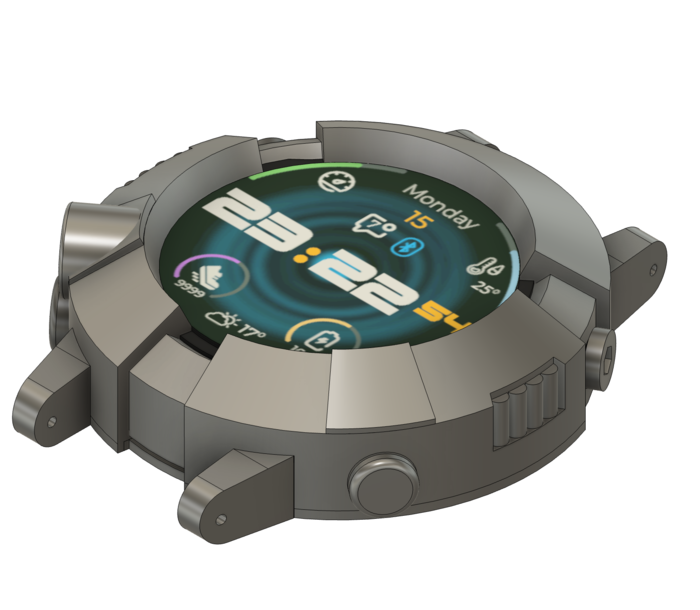

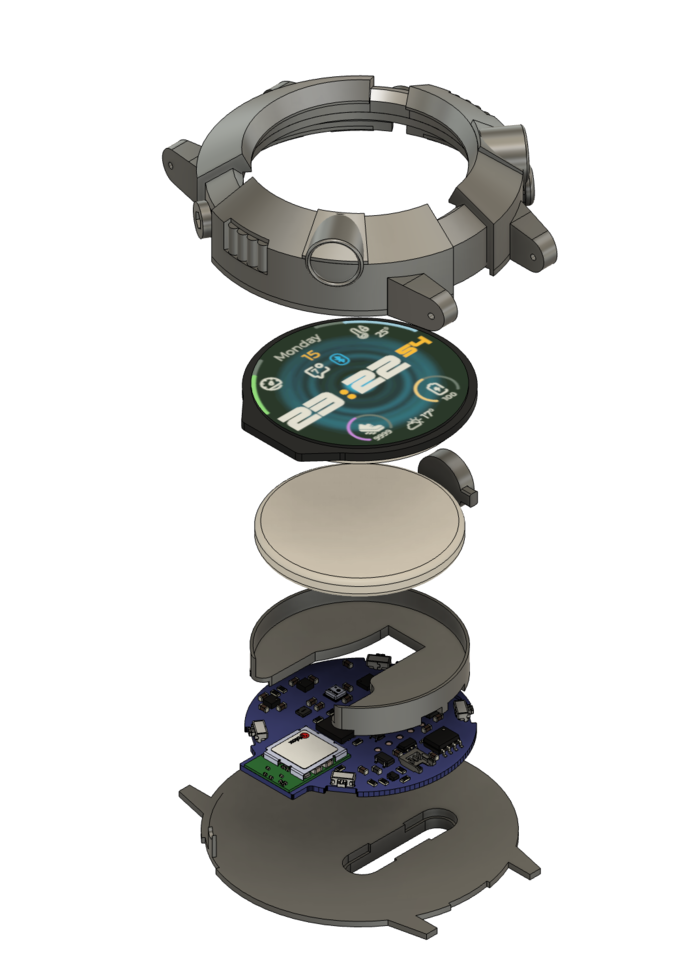

This project involved transforming a conceptual 3D model of a Tom Clancy's Devision 2 watch, created in Blender, into a functional and manufacturable enclosure design for the open-source smartwatch hardware ZSWatch. The client sought to adapt a game-inspired concept into a real-world product, requiring innovative design solutions and attention to detail.
Key Responsibilities:
•Adaptation of Game Concept to Reality: The provided 3D model had misaligned dimensions and lacked functional design for key components such as buttons. I reworked the design to align with the real-world hardware dimensions and created proper seating locations for buttons as separate, functional parts.

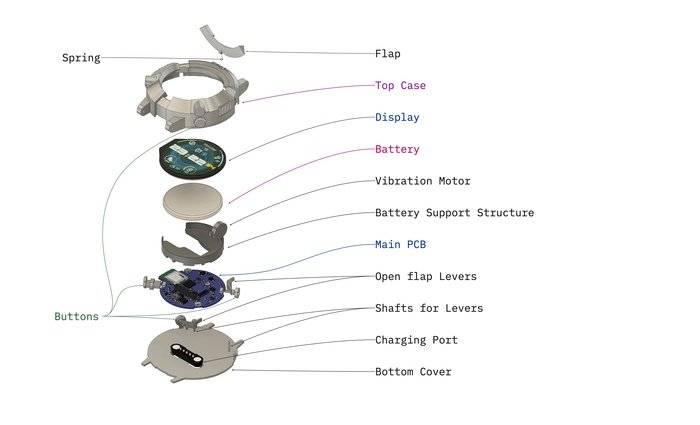

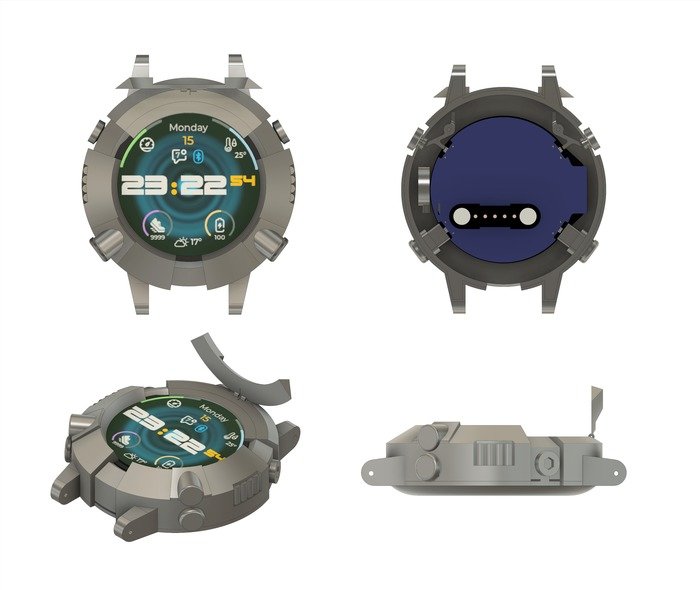

•Custom Flap Mechanism Design: Based on client input, I designed a specialized flap to cover the camera and microphone. This flap included a unique mechanical system allowing control via the same buttons used for the smartwatch interface.
