Industrial Automotive Illustrations

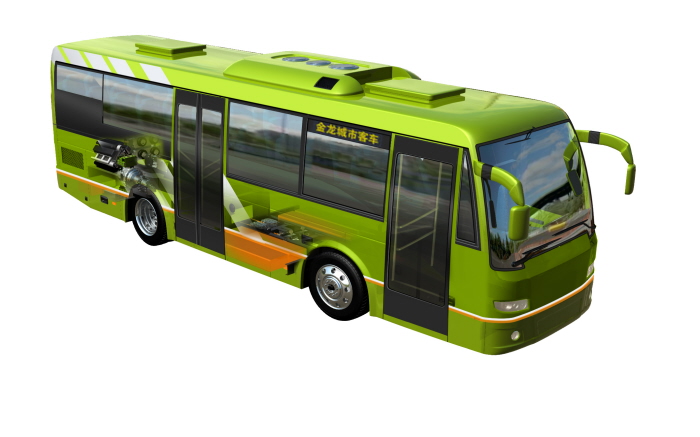

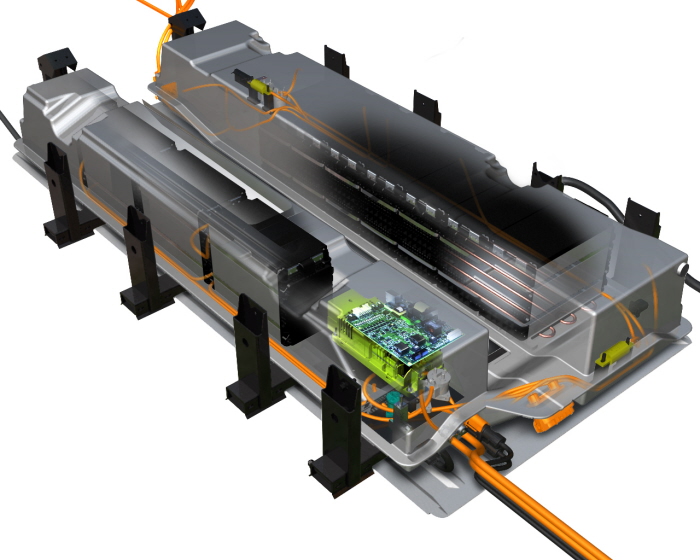

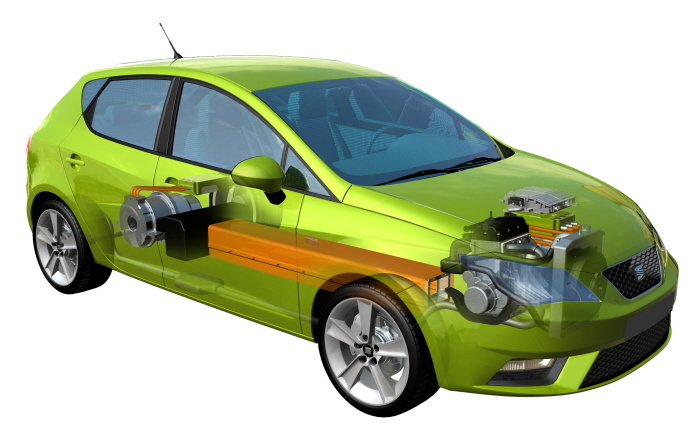

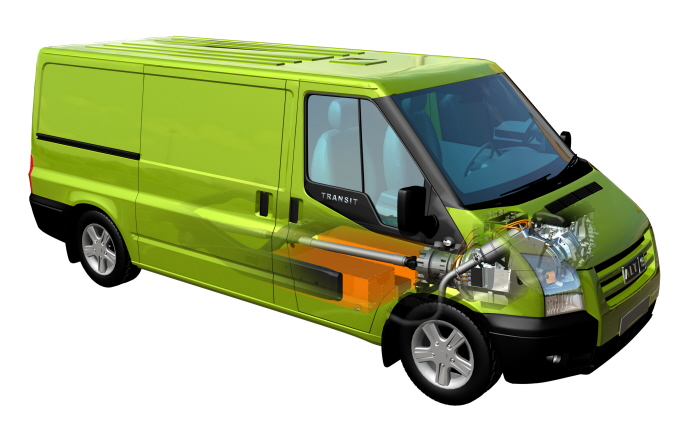

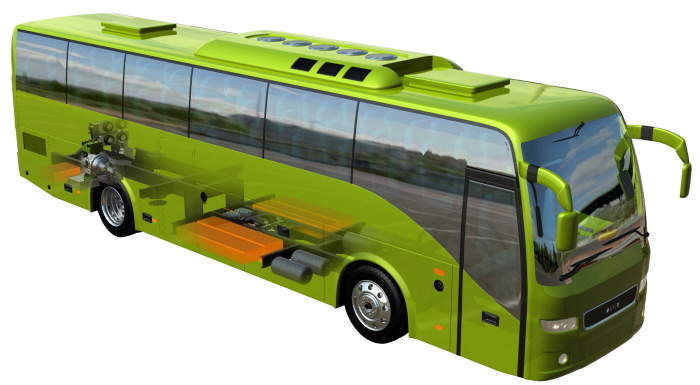

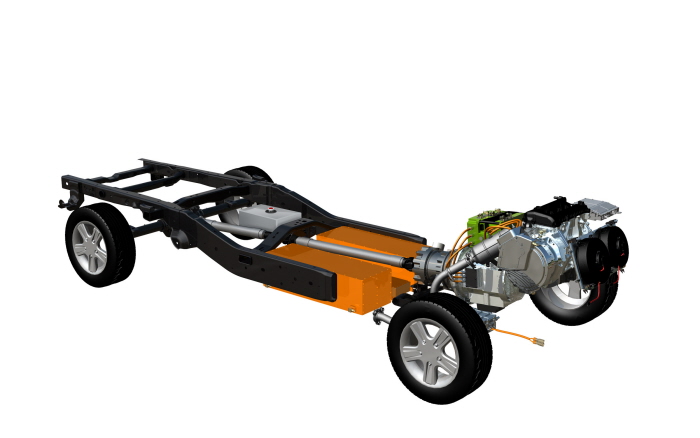

Illustrations of hybrid drivetrains and their components I produced for marketing and presentations while at ALTe, Powertrain Technologies. I imported KATIA parts from the engineering department into solidThinking software were I than assembled and rendered the models. I finished the cut-away images in PS. The major challenges were the limitations of computer processing ability: I had to strategically build the parts of models in separate scenes and render them, than complete the assembly in PS.
