Josh McGuckin

I have been working on some Concrete and wood designs, I like the idea of wood supporting concrete rather than a more traditional approach of having the concrete support the wood. Designed in Solidworks.

Brainstorming an iPad flip down for a car. This would work the same as a flip down monitor, however it would hold an iPad in a spring loaded enclosure. Designed in Solidworks.

Anthem Branding: Brainstorming for an award, this would be "The gift that keeps on giving" Designed in Solidworks.

Kern Racing: When designing a new mounting system for an aero element for the RaceKern.com Pikes Peak Evo, I developed this model and system for stabilizing the element. Designed in Solidworks.

Kern Racing: While brainstorming splitter designs this quick sketch eventually became the basis of the new front splitter on the RaceKern.com Pikes Peak evo. Designed in solidworks.

Project Baja: An assembled view of the Transmission mount for our 1970 VW bug Class 11 project. Designed in SolidWorks

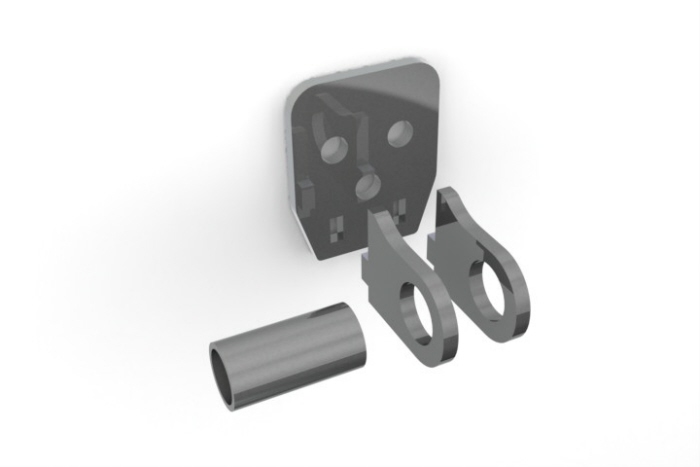

Project Baja: An exploded view of the Transmission mount that I designed as an alternative to machining a solid mount. This design saved us a lot of cost by eliminating 3 axis machining and instead utilizing Laser cutting. Designed in Solidworks.

Anthem Branding: This is a table design that was eventually fabricated and installed at Anthem Branding in Boulder Colorado

Anthem Branding: This Render shows a monitor stand that sits on some of the tables in the Anthem Branding Installation. Designed in Solidworks.

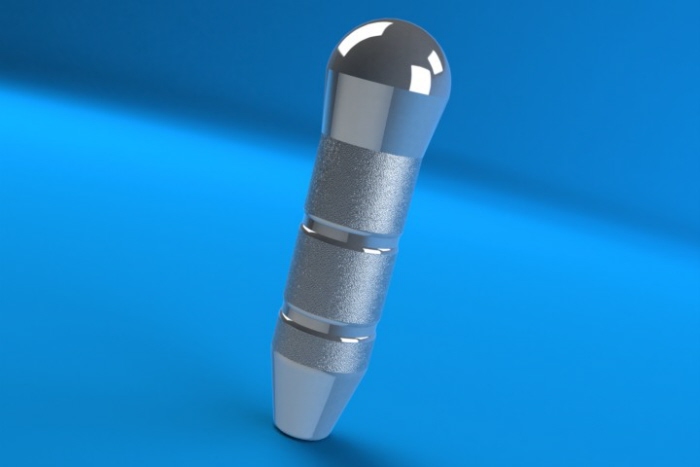

In an effort to create a suitable shifter for the Rally BMW I modeled a shifter knob that would not only provide multiple shifting positions but also extend the length of the shifter as well. Designed in Solidworks.

Remodel concept drawing done in Sketchup.
