Initial concepts based on traditional kitchen knife forms
Initial concepts based on large extended finger guards
Initial concepts based on bulbous rounded handles easier, which take less effort to grip.
Initial concepts based on angled ergonomic handles

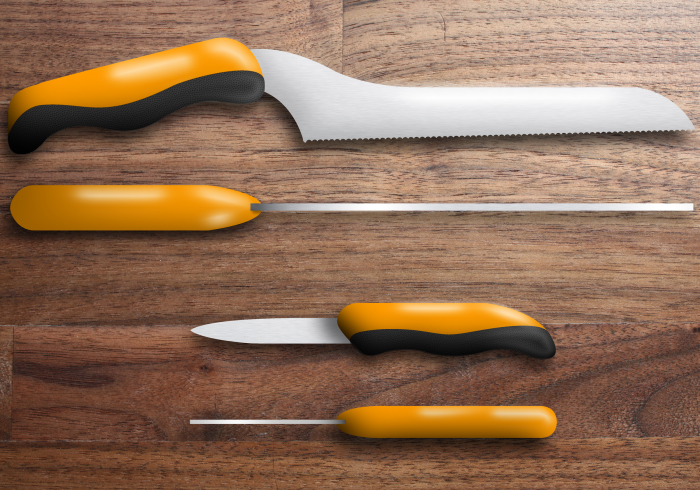

Developed concept based on dual top and bottom finger guards

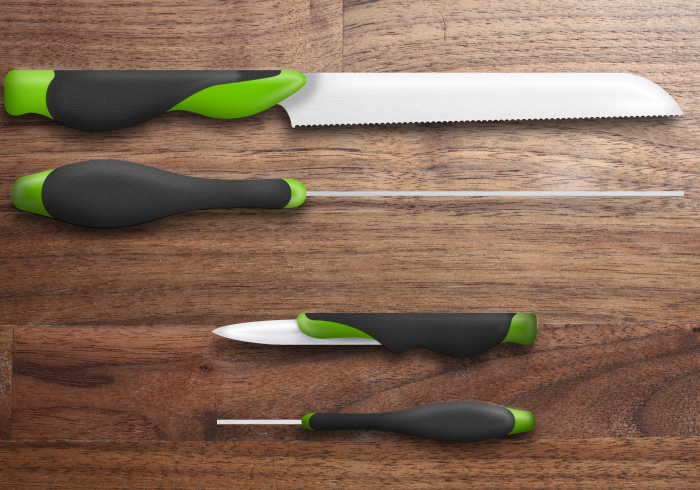

Developed concept based on extended finger guards.
Interim Presentation Visuals, (Created with Adobe Illustrator/Photoshop)

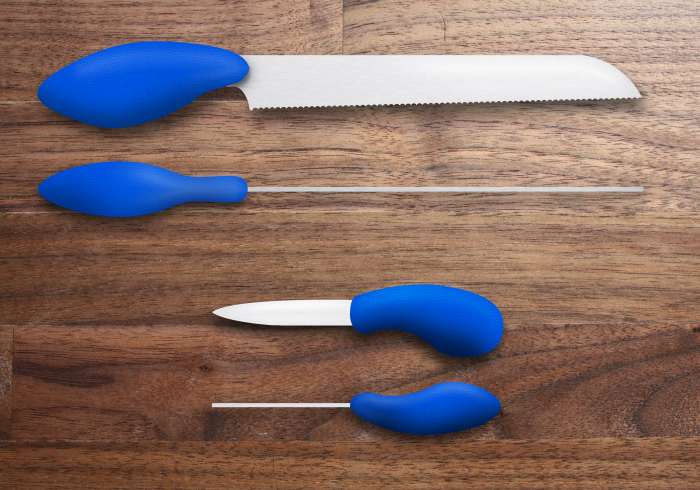

Developed concept based off bulbous rounded handles.
Interim Presentation Visuals, (Created with Adobe Illustrator/Photoshop)

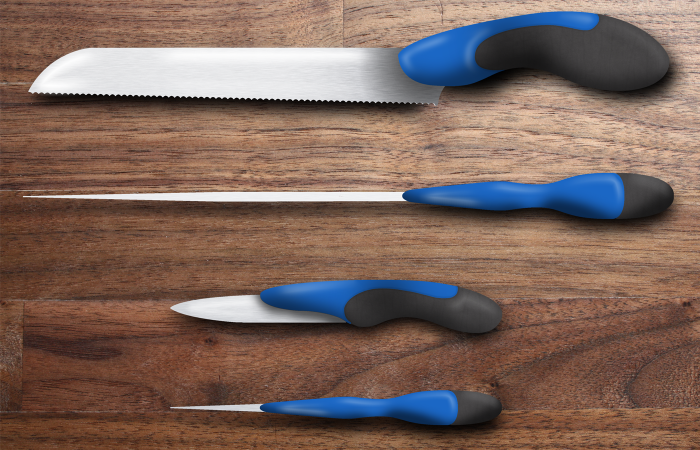

Developed concept based off angled ergonomic handles.
Interim Presentation Visuals, (Created with Adobe Illustrator/Photoshop)

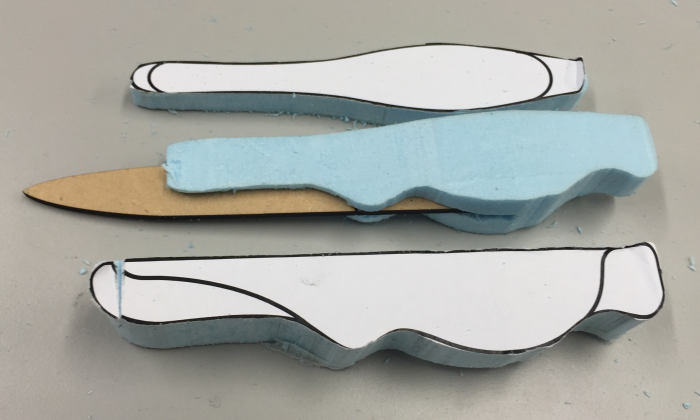

Raw cut geometry straight off the band saw, with laser-cut mock blade and the illustrator outlines used as a guide.
First (of three) generations of model used both for empathy testing and presentation to the user group.
Developments inspired by both the empathy testing and the insights of the users from the second workshop.
Developments inspired by both the empathy testing and the insights of the users from the second workshop.
Developments inspired by both the empathy testing and the insights of the users from the second workshop.
Second generation concept based on extended finger guards.
Second generation concept based on slightly angled and bulbous handles.
Using empathy tools to simulate a user with arthritis: with a paring knife concept model.
Using empathy tools to simulate a user with arthritis: with a bread knife concept model.
Final development of the paring knife based on physical models and empathic user testing.
Final development of the bread knife based on physical models and empathic user testing.

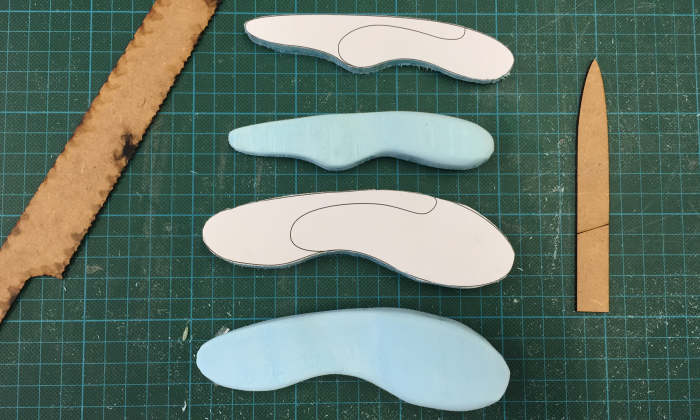

Guides and geometry models for the final design
Final sketch development and ideation before the CAD process begun.

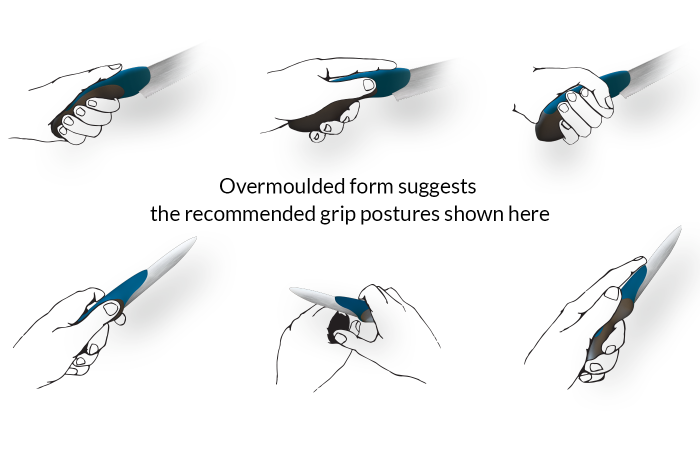

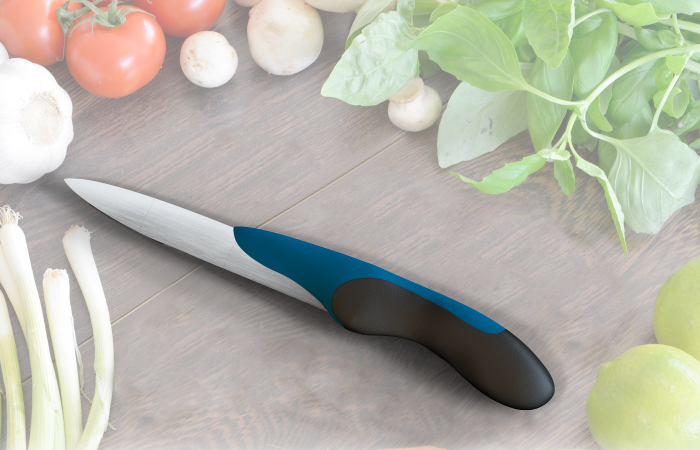

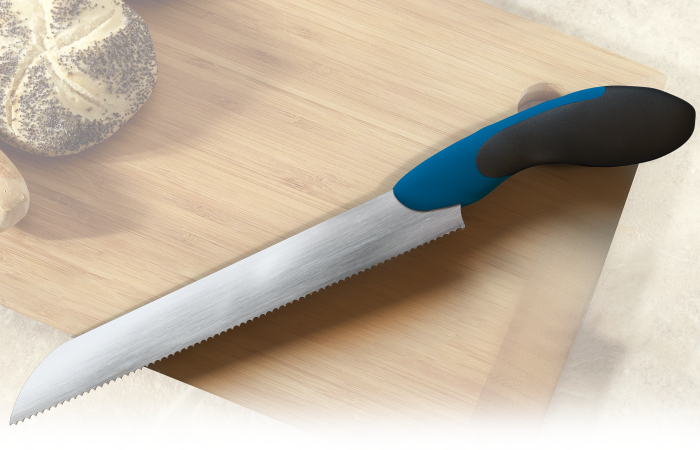

Final Presentation Visuals, (Created with Adobe Illustrator/Photoshop)

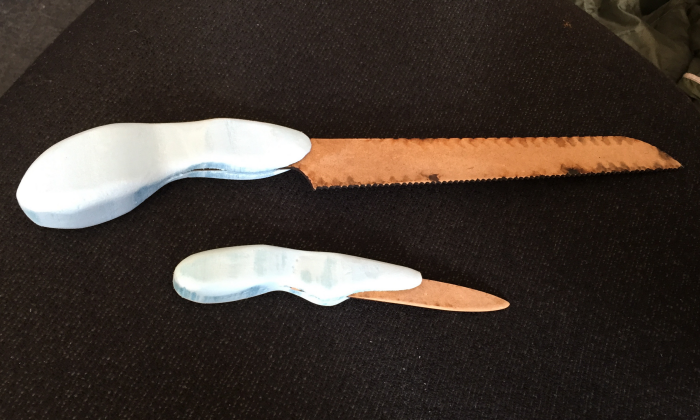

Completed final concept model with laser-cut mock blades.
The three types of model used to test the final design: Foam Form Exploration, FDM ABS Handling Model and Z-Corp Visual Model

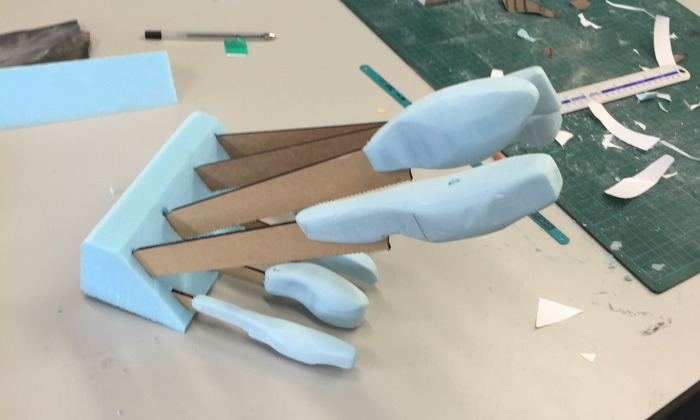

All the models in chronological sets (left to right) showing the main concepts that lead to the final solution
gLike
Kitchen Utensils for older users
> Fourth university project of third year
> Brief: To re-design certain kitchen utensils, taking into account the physical and cognitive needs of older users.
> Utensils given to re-design: Bread Knife and Paring Knife, two knifes used for very different purposes.
> Both knives are designed to support older users, by allowing more comfortable and ergonomically sound postures during use.
> A heavy use of foam modelling and empathic research tools aided me in the creation of suitable form.
> Modelled in PTC Creo and rendered in Autodesk 3ds Max.
