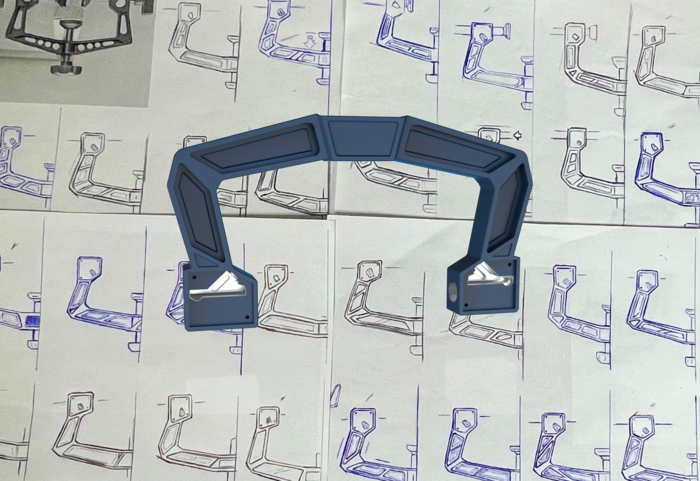

These are my sketches, but the ideation was done in collaboration with another designer on the team and his ideation had a good influence on how the body and quick release triggers ended up.

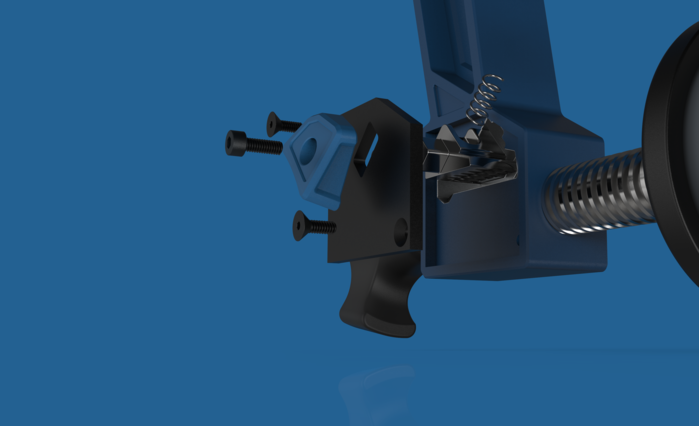

The new quick release thread is metal to solve the issue of the old plastic one stripping under maximum pressure.
gLike

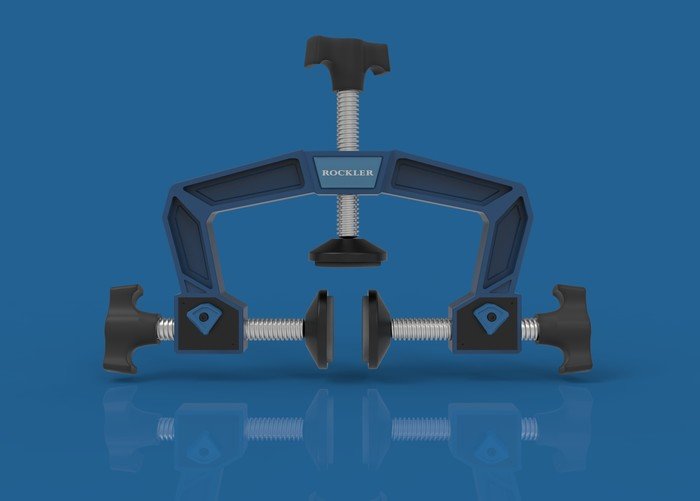

Rockler 3-Way Clamp (Re Design)

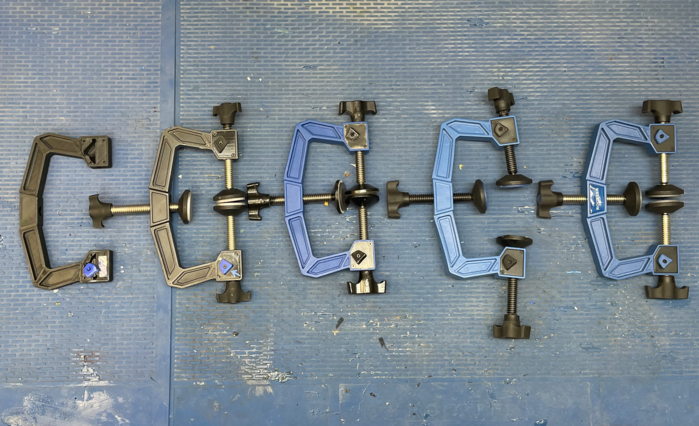

This is a re design of the old Rockler 3-Way Face Frame Clamp. The goal was to update aesthetics and ergonomics to match new Rockler clamps, and also fix some issues that were presented with the old clamp. Like all other Rockler products in my portfolio, while I was the primary designer. These were developed in collaboration with a small team of designers and woodworkers who all help make these products a success.
