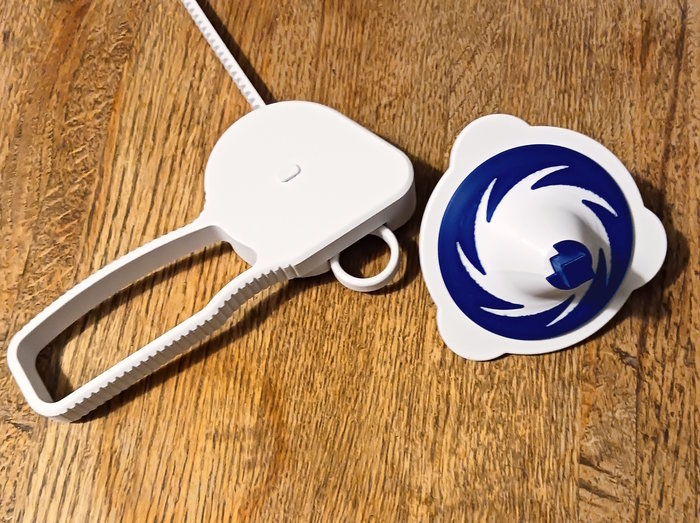

The final iteration.

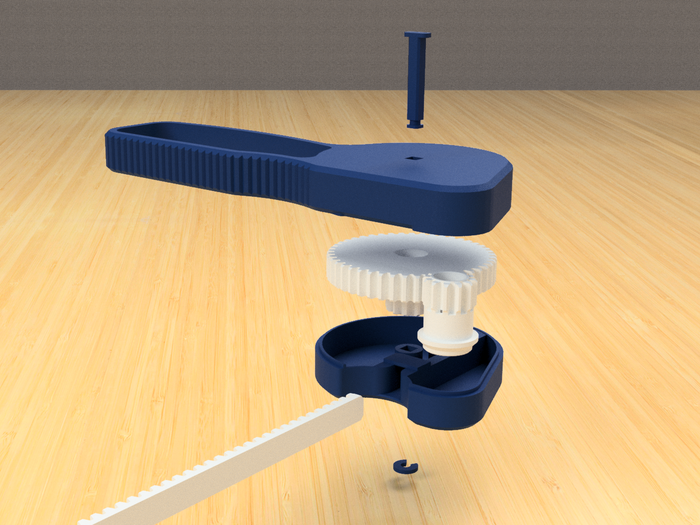

Exploded view of launcher. Note the simplicity of assembly, everything is fastened with one central cip.

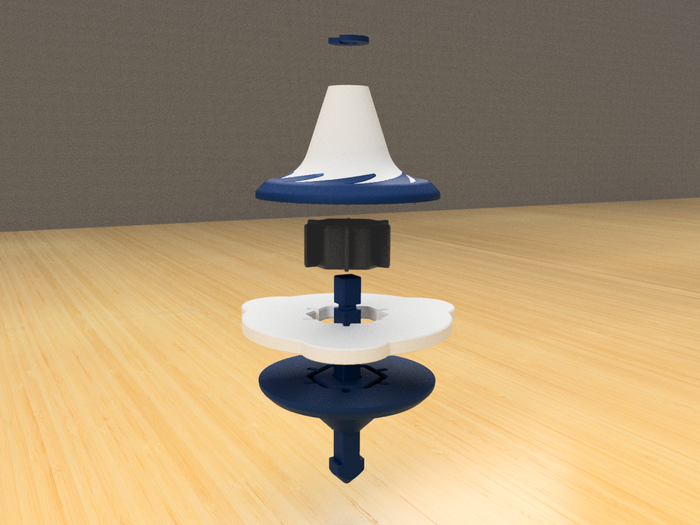

Exploded view of top itself. As with the launcher, note the simplicity of assembly. A central core piece allows multiple blades to be securely mounted.

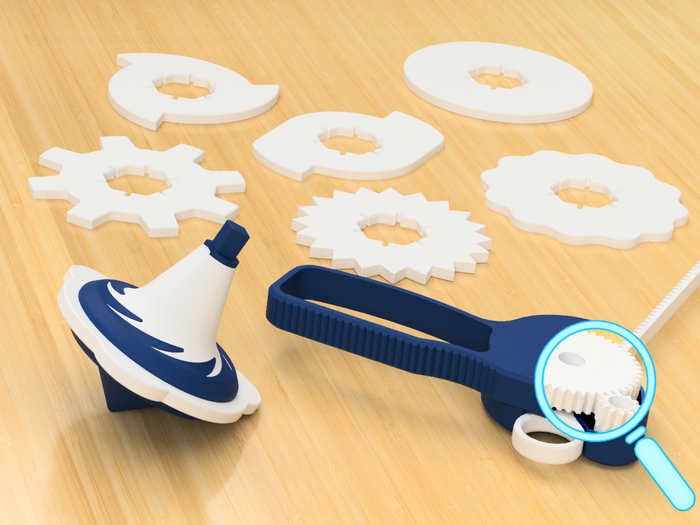

Render that also shows interchangeable blades.
gLike
Battle Top Toy with Geared Launcher
Created as part of an online contest. This is a toy designed for "battle" with other tops. This includes a pull cord launcher with ergonomic grip that uses gearing to multiply speed. Everything is designed for support free 3D printing, and with clearances for easy assembly. The design permits the user to interchange different blades for battle.
