The Smart Check is a device designed for individual women who have survived Breast Cancer and its reprocussions. These women can use the device on a weekly basis to check their breast for abnormalities, which provide them with peace of mind and decreased paranoia from possible recurrence.This device would use non-invasive near-infrared light to dectect abnormal blood levels.
Alias Studio Tools & Photoshop
This image is a scene from a scenario that I created in order to "realize" this product in real life settings. While the woman is primping, she charges the device for future use. This device is very usable and portable, and seamlessley integrates into the user's lifestyle.
This is another scence from a scenario that I created that shows the device being used. The lights flash at a consistant pace while the user thorougly examines the breast region. If it detects an abnormality the light flashing increases and it takes picture of the mass which encourges the user to seek a physician where the images can be retrieved.

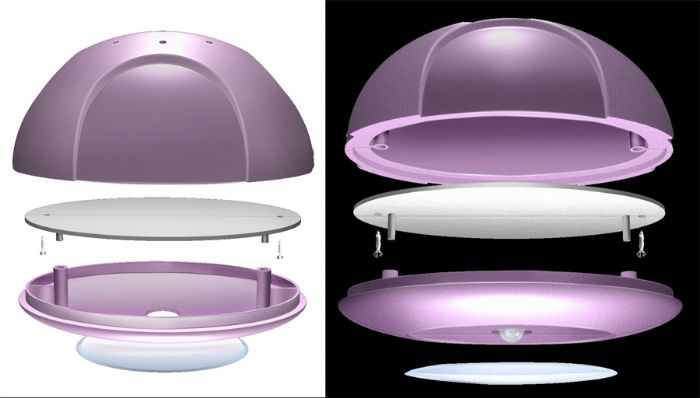

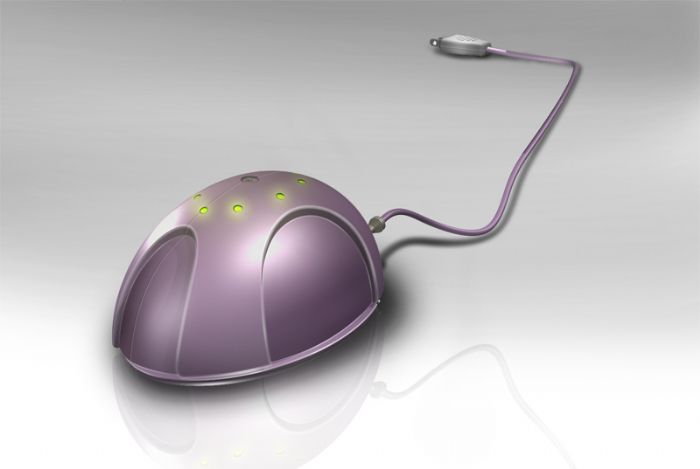

Constructed and rendered in Alias/photoshop/Illustrator
  • o
Project - Smart Check- Individual Breast Examination Device

Smart Check-Individual Breast Examination Device
