In-Line Connector - I developed and engineered this In-Line connector for use with the Aluminum Extrusion pictured. After designing the in-line connection, I then developed the prototype and a jig to be used for manufacturing large quantities. This is the final rendering of the Prototype done using 3D Studio Max.

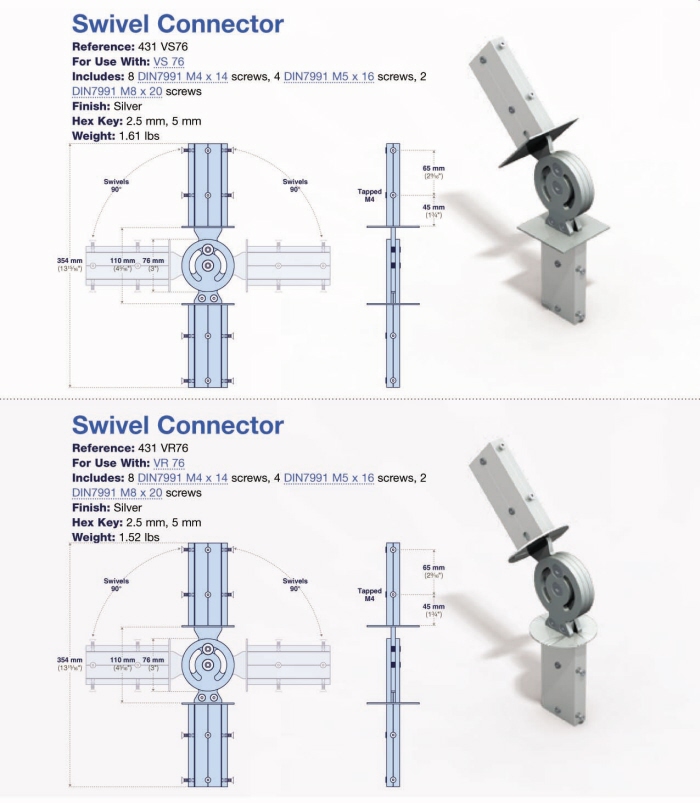

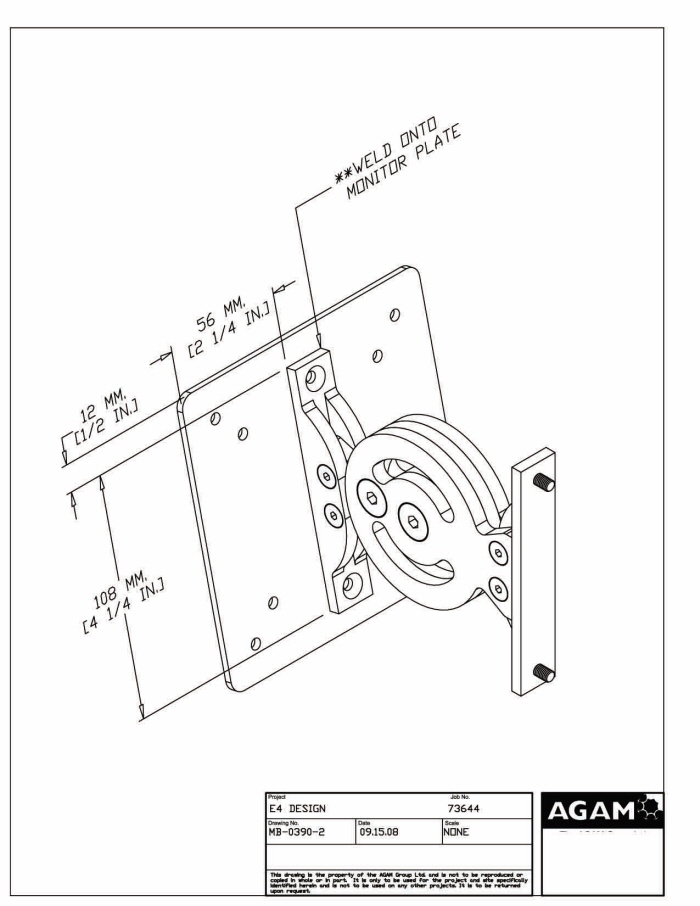

Swivel Connector - I had the pleasure to be apart in designing and building this Prototype with my coworker. I also completed the rendering with techincal drawings as well.
Swivel Connector
Tunnel Exhibit - Exhibits from previous projects. This was drawn in 3D in AutoCAD. From there it was rendered using 3D Studio Max.

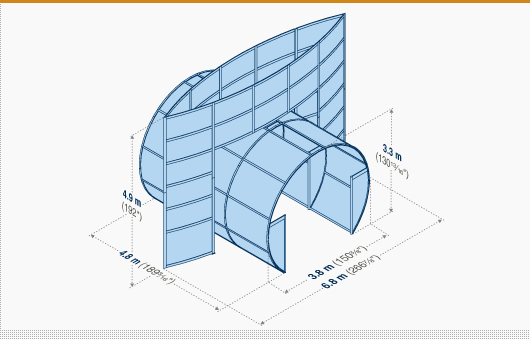

Tunnel Exhibit-Top View - Exhibits from previous projects.

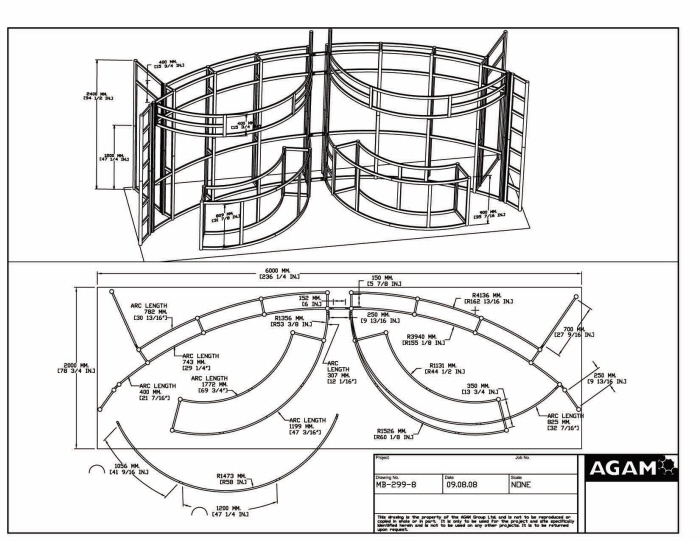

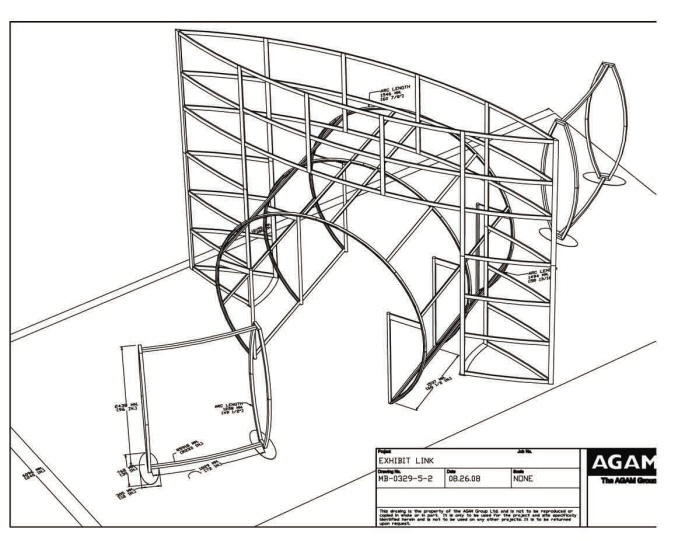

Tunnel Exhibit Line Drawing

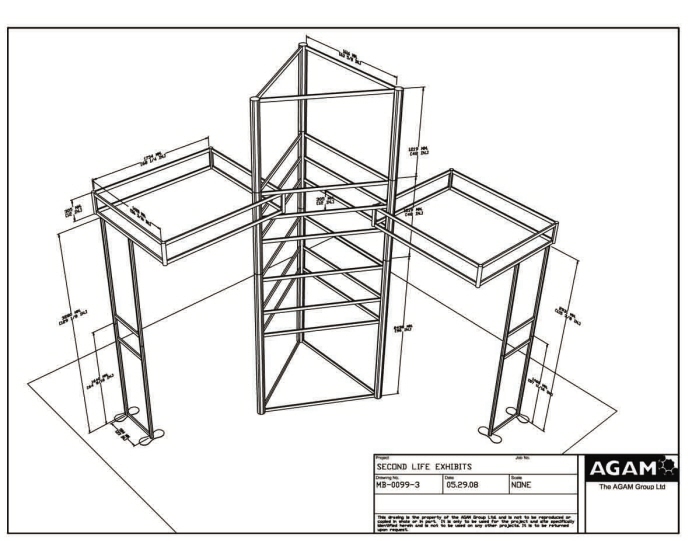

Tunnel

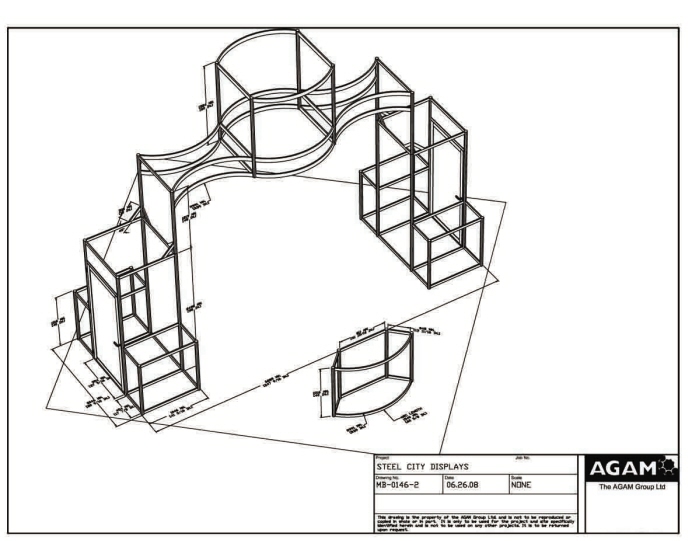

Exhibits from previous projects.
View PDF

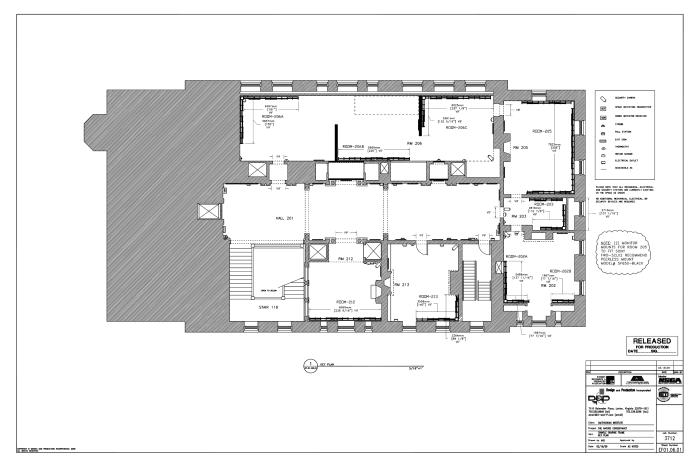

Building Layout - This is a multi-page PDF file showing the layout of where certain Exhibits are to be placed within the building. The Exhibit structures are shown on the next pages.
