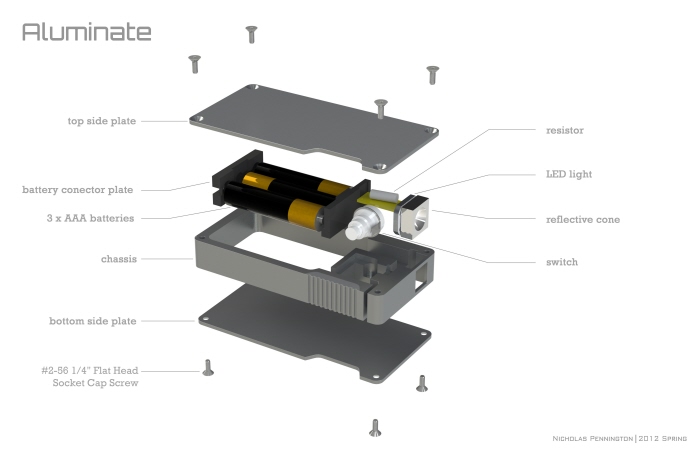

A store-bought flashlight was used for parts. The electronics were soldered together and insulated from the aluminum body.
  • o
Aluminate Flashlight

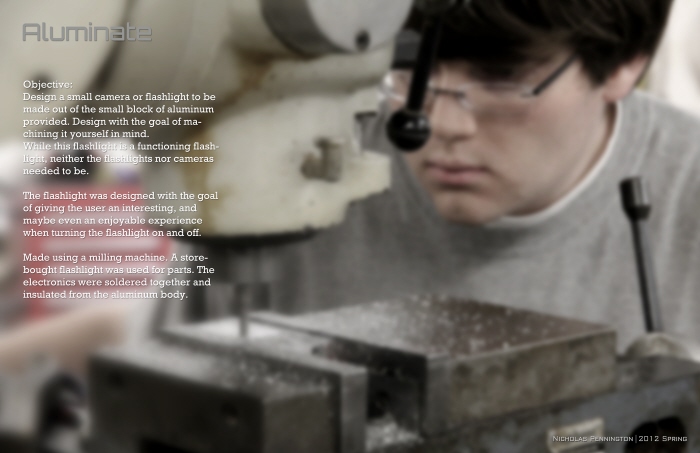

Objective:

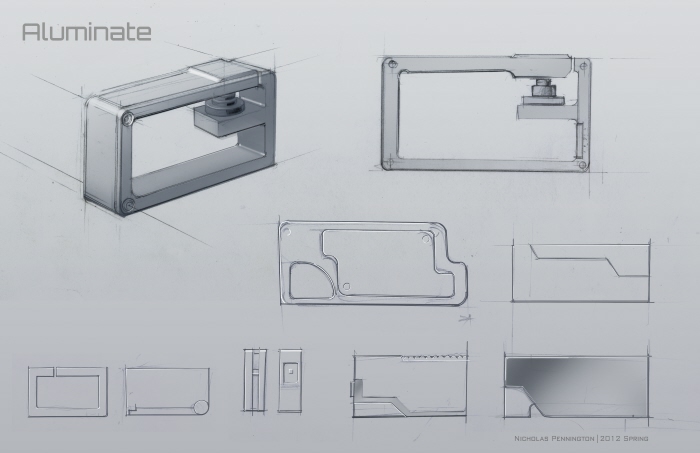

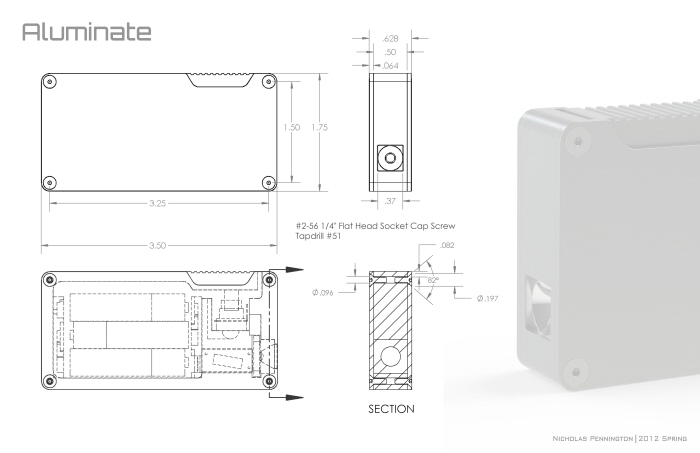

Design a small camera or flashlight to be made out of the small block of aluminum provided. Design with the goal of machining it yourself in mind.
While this flashlight is a functioning flashlight, neither the flashlights nor cameras needed to be.

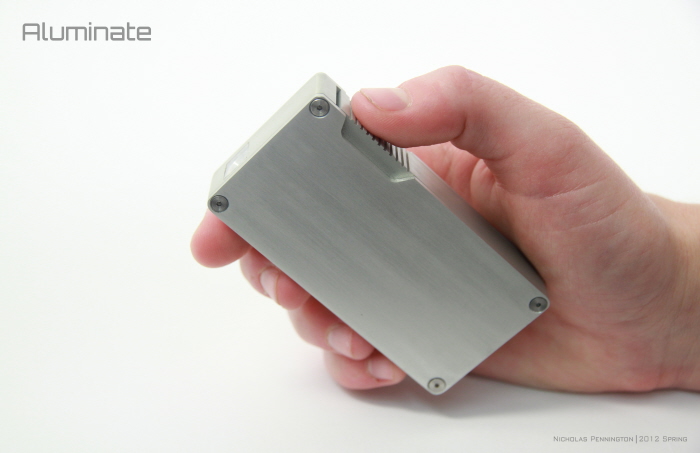

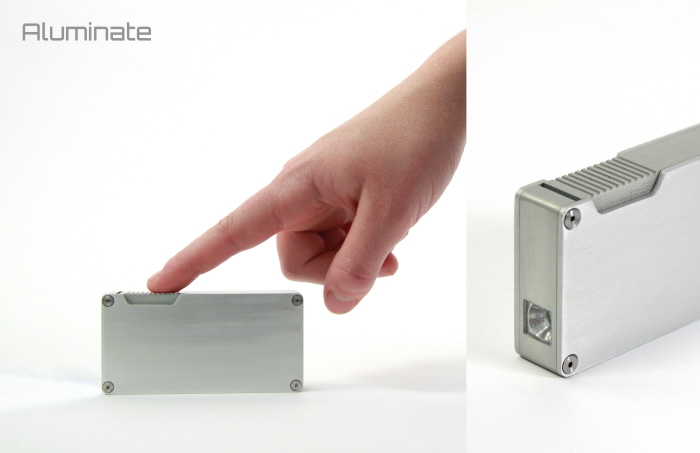

The flashlight was designed with the goal of giving the user an interesting, and maybe even an enjoyable experience when turning the flashlight on and off.

Made using a milling machine. A store-bought flashlight was used for parts. The electronics were soldered together and insulated from the aluminum body.
