Mezzanine Floor Structural Drawings – Holiday Inn, Qatar
A set of structural shop drawings prepared for a proposed mezzanine extension at Holiday Inn Hotel, Najma, Doha, Qatar.

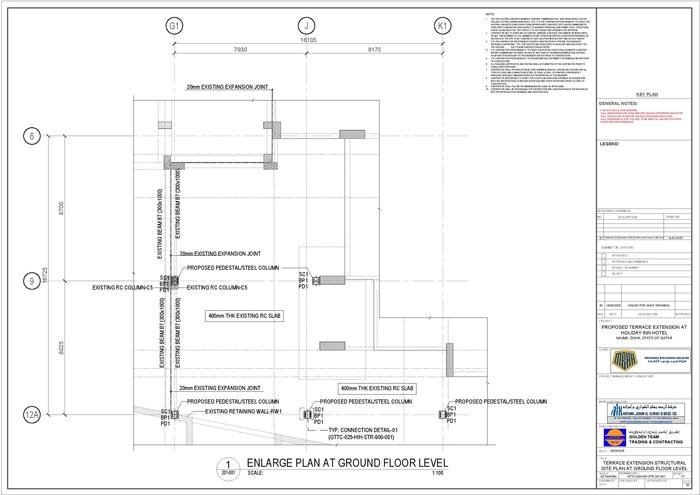

The drawing package includes:
Framing layout
Metal deck slab plan
Baseplate and anchor bolt details
Steel connection details
Company: Golden Team Trading & Contracting
Role: Structural Draftsman
Software Used: AutoCAD
Year: 2025
