Bugatti Sports Pick-Up with Parallel Architecture

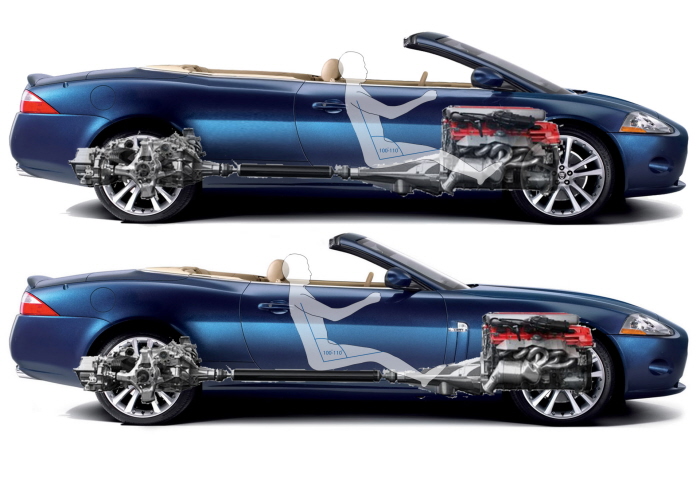

Jaguar XK Convertible with Parallel Architecture

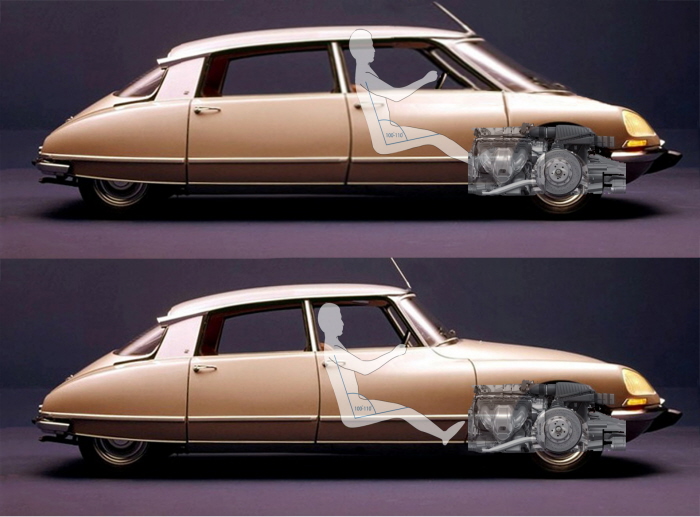

Citroen DS23 with Parallel Architecture

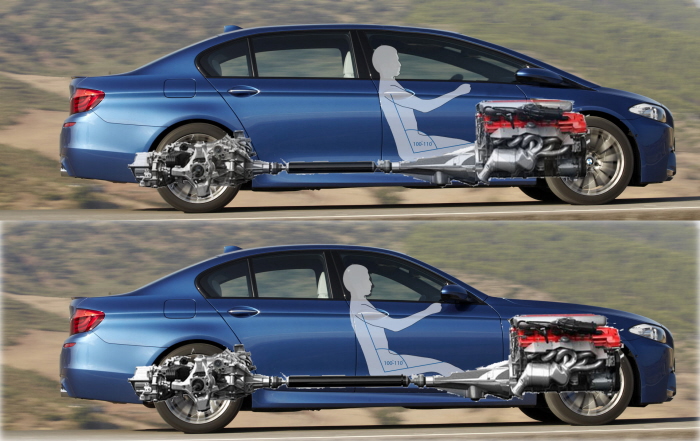

BMW 5-Series with Parallel Architecture

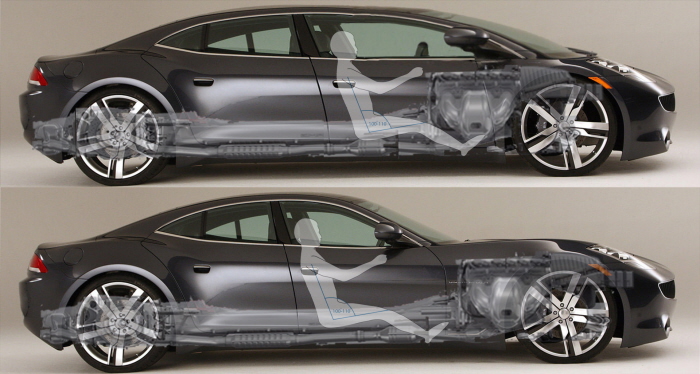

Fisker Karma with Parallel Architecture

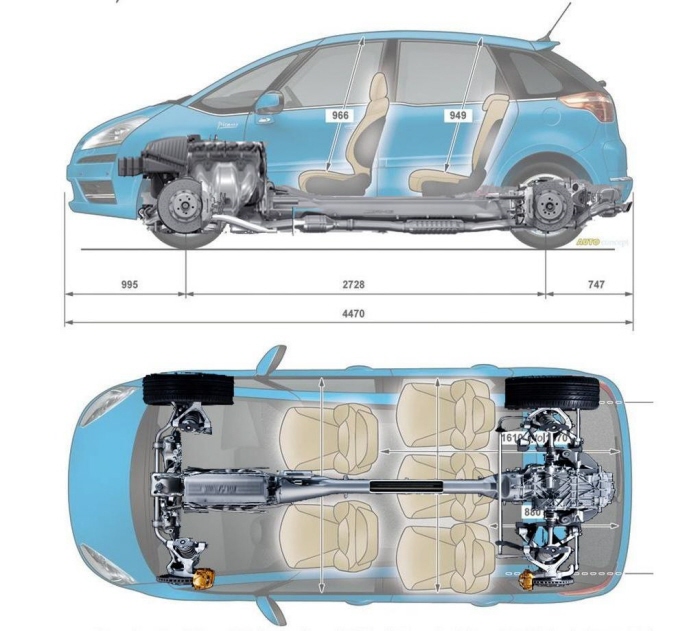

Citroën C4 Picasso with Parallel Architecture

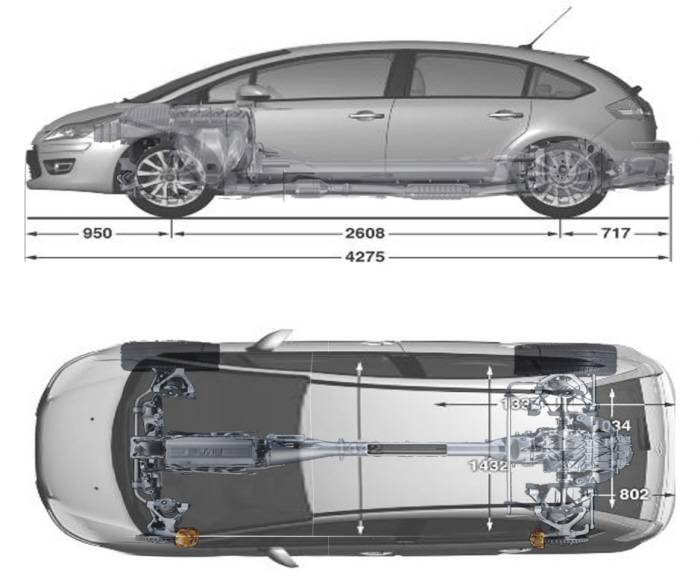

Citroën C4 with Parallel Architecture

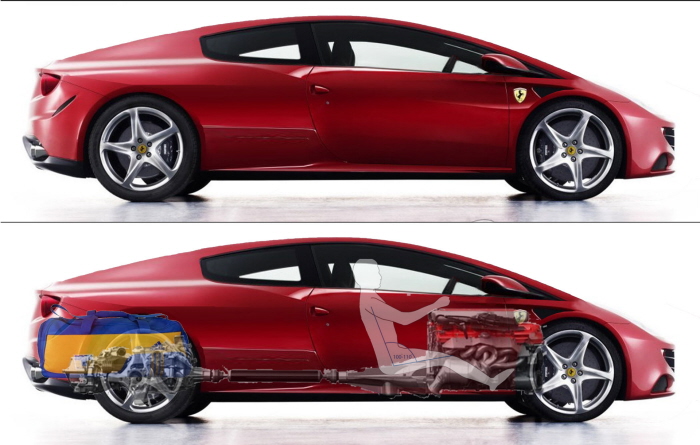

Ferrari FF with Parallel Architecture

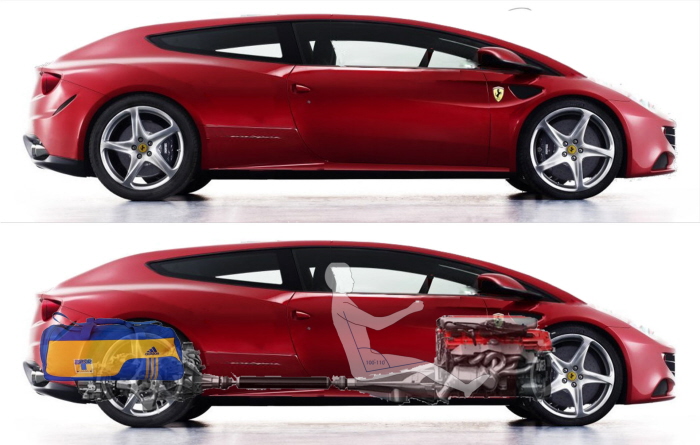

Ferrari FF Coupe with Parallel Architecture
Caterham 7 with Parallel Architecture. Design by Prasanta Gautam

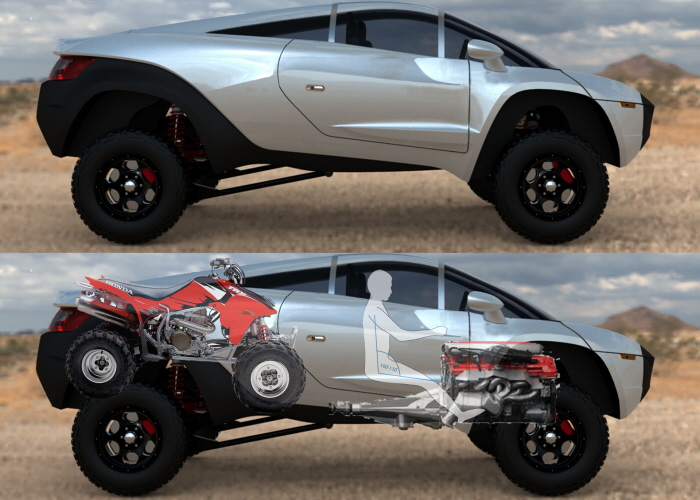

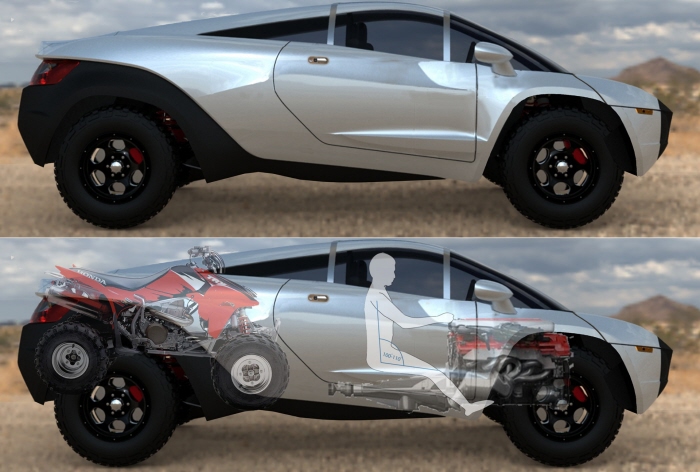

Local Motors Rally Pick-Up with Parallel Architecture
Local Motors Sport Pick-Up with Parallel Architecture
Renault Samara with Parallel Archtecture. Design by @jfrosales82

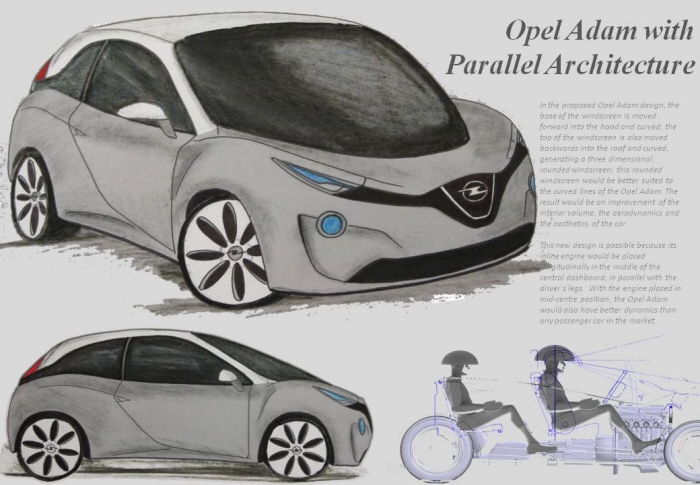

Opel Adam with Parallel Architecture. Design by @jfrosales82

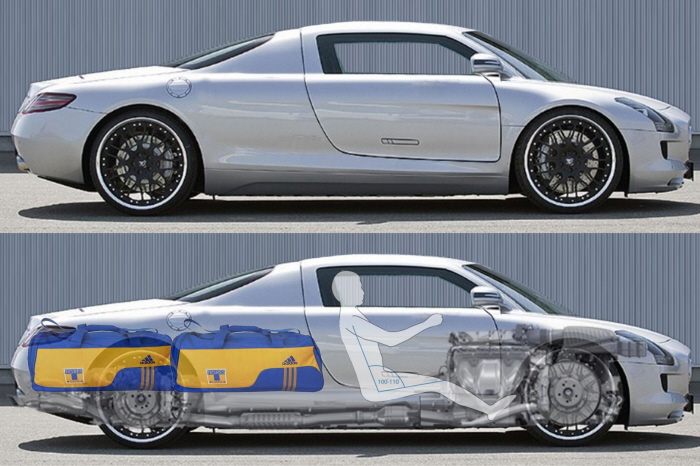

Mercedes SLS Pick-Up with Parallel Architecture
gLike
Parallel Architecture Examples

Parallel Architecture Examples - Some examples of real cars as it would be if designed with Parallel Architecture.

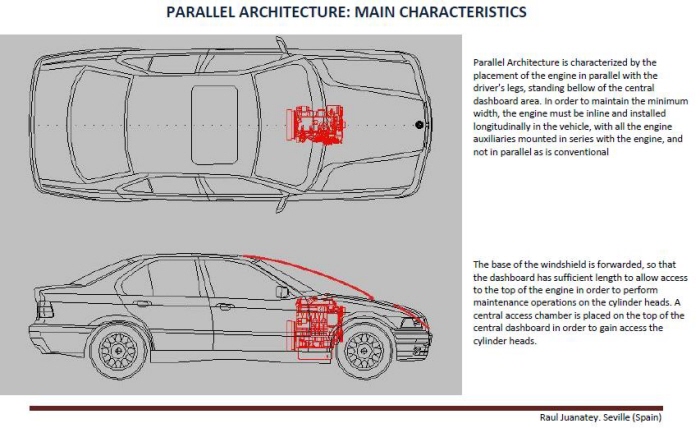

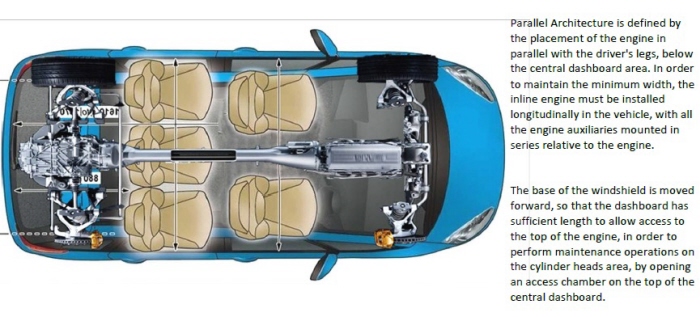

Parallel Architecture is defined because the engine is placed inside the central dashboard, in Parallel with the driver´s legs. In order to fit into this narrow space, the engine has to be inline, placed longitudinally in the car, and with all its auxiliary elements placed in series with the engine. In the top central dashboard, there is an access to the cylinder heads area when needed, but all typical maintenance work in the engine is done from the bonnet, as in normal cars.
