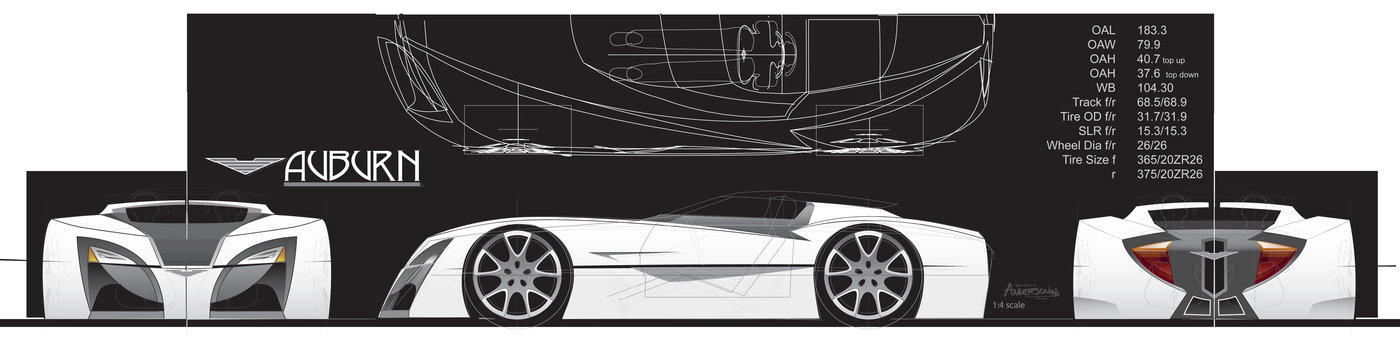

Package Design Model - Adobe Illustrator package model. Curves from this model where imported to ALIAS to start 3D modelling

Side view of ALIAS model - All effects modeled and rendered in ALIAS. Text added in Illustrator

Interior sketches

Front Three-Quarter View - Race Version - All effects modeled and rendered in ALIAS. Text added in Illustrator

Plan view sketch of "Pitstop" - Sketched with Adobe Illustrator

Final Milled Foam Model - Model milled directly from ALIAS data in 40lb foam. Upper roof/glass area vacuum formed from foam milled tool. Model painted with automotive finishes.

FInal Milled Foam Model

Final Milled Foam Model
