a concept product showing a custom printed bottle finished for best optical clarity and an Olive wood lid turned in shop.
for printer capability presentation, I took an existing CAD file and printed on an Objet Connex 350 and a Projet460plus. The left bottle is a store bought bottle. The middle has been printed on the Projet with all graphics and color printed directly on the bottle. The right image was printed on the objet. The bottle was post processed, sanded, and then sent to paint. The label was printed in house as well.

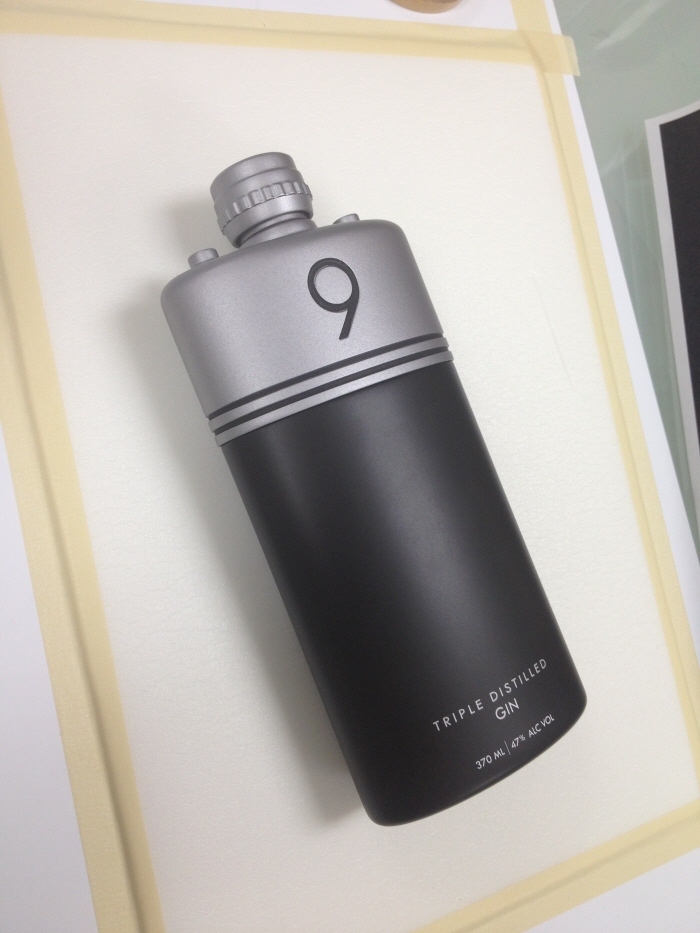

The 3Nine's concept was developed by a co-worker. My part was to take an existing CAD file and modify for 3d Printing and finishing purposes.
Yankee Candle Scent-Plug Shade. Shown is the final concept 3d Printed, allowing approval to head to production.
Yankee Candle Scent-Plug Shade. Shown is the final concept 3d Printed, allowing approval to head to production.
Yankee Candle Scent-Plug Shade. Shown is the final concept 3d Printed, allowing approval to head to production.
Shade was designed to have two lines of light when plugged in.
A concept line of product for expectant mothers. I was asked to model the bottle from specific client supplied dimensions. The bottle colors/pattern were direct printed using a Projet 460plus. The caps were sanded and painted. The ampersand emblem was printed and adhered separately. Concept bottles were shown at local conference.
Concept secondary carton for the bottles.
Additive Manufacturing; 3D Printing

These represent several Additive Manufacturing pieces I either created directly or managed.

Steven Richardson
Senior Structural Designer Manger Cincinnati, OH
