Initial sketch and proposed materials for premium (platinum level) box
initial sketch and proposed materials for gold and silver level greyboard construction boxes
early exploded BOM line render of hinged paperboard box designs, showing die cut insert, contents, and 'belly band' outer sleeve

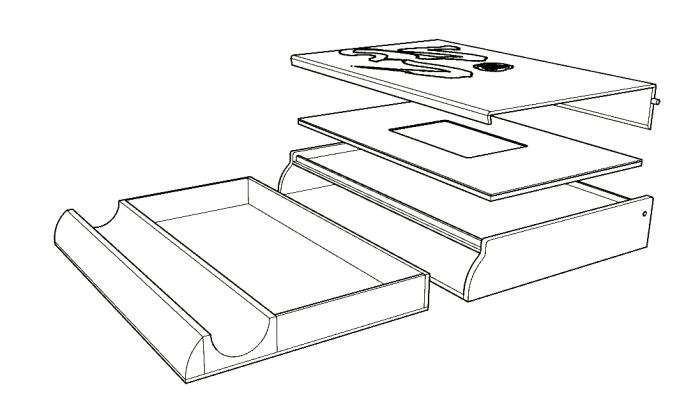

early exploded BOM line render of acrylic premium platinum level box with die cut insert

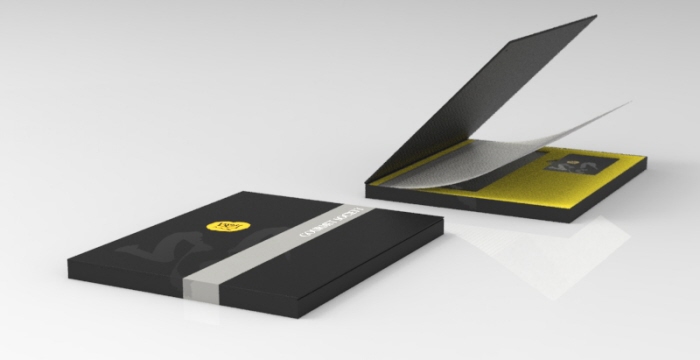

quick render of assembled paper box with folding living hinge

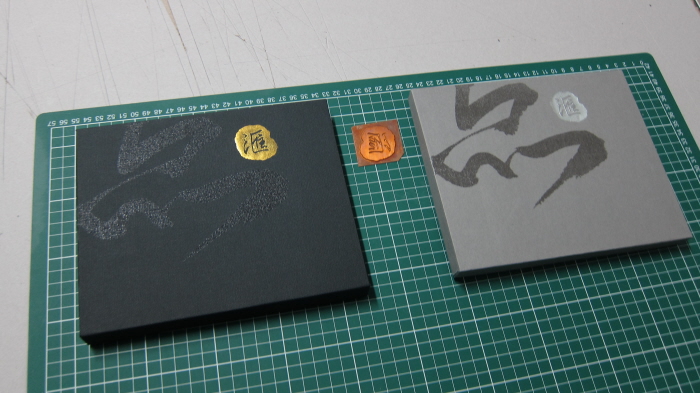

prototype paperboard boxes with spot UV kanji graphic and foil stamp tool

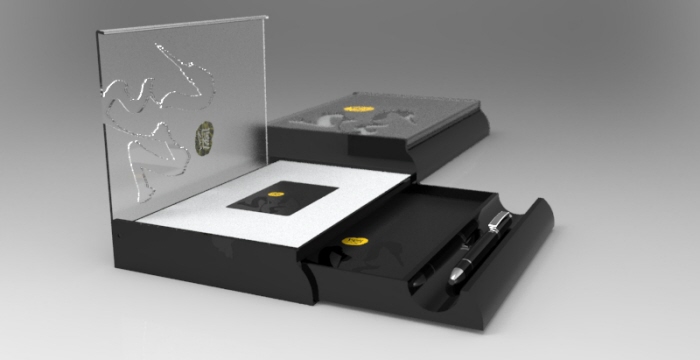

early render of v01 premium box design

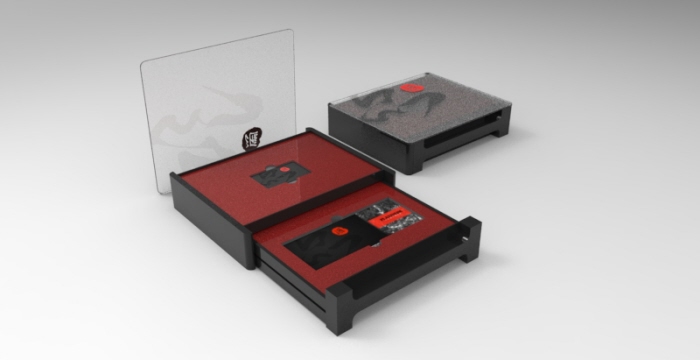

render of final design version platinum box

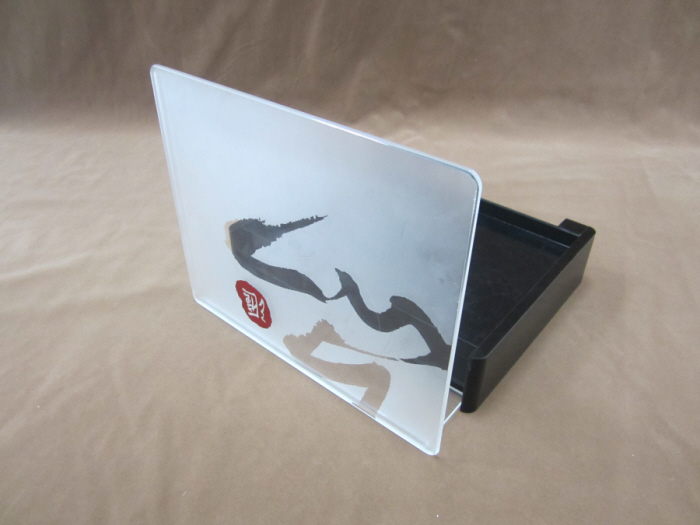

prototype platinum level acrylic box with frosted and foil stamped lid

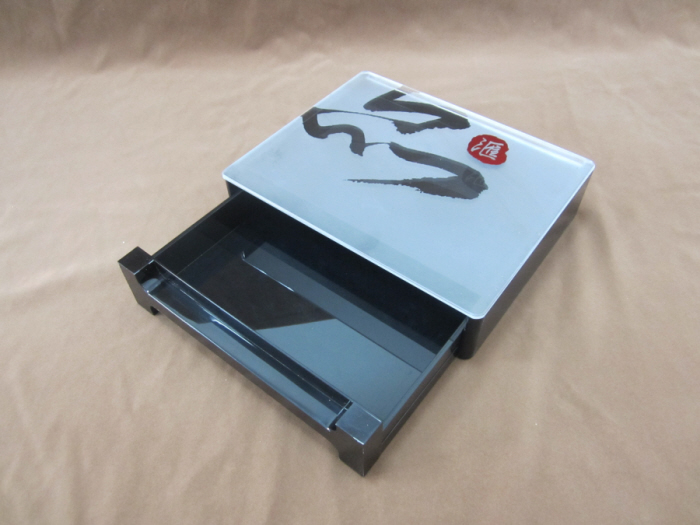

prototype platinum level acrylic box with frosted and foil stamped lid

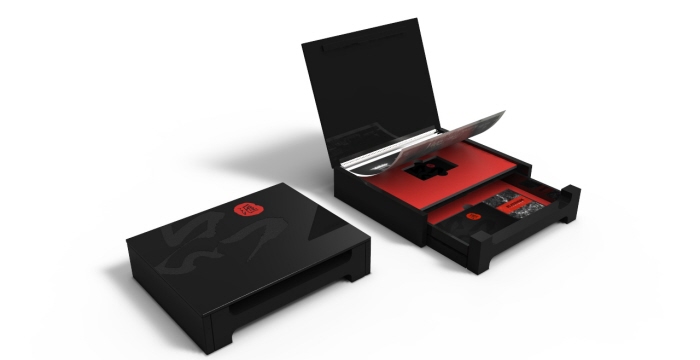

alternative design concept using a piano hinge for the lid and an all opaque acrylic construction
gLike
Westin VIP Gift Boxes
Working as a freelancer with a local graphic design firm, my design brief was to develop VIP gift packaging for one of the Shanghai Westin Hotel's guest rewards program. In addition to CMF, detailed production drawings, and realistic renderings, I also sourced manufacturing and specified and audited production materials and developed pre-production samples.
