CAD of the front master cylinder assembly.

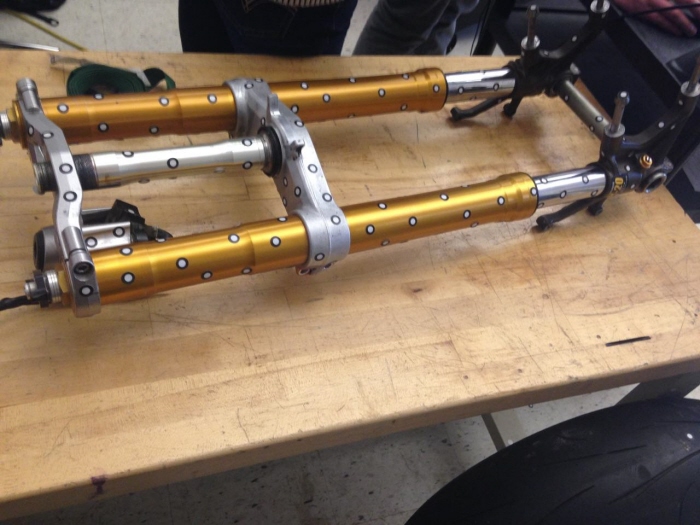

Front fork of the motorcyle.

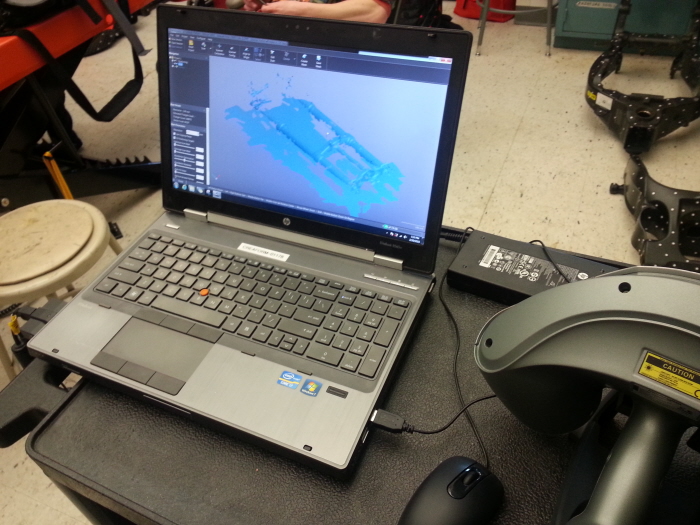

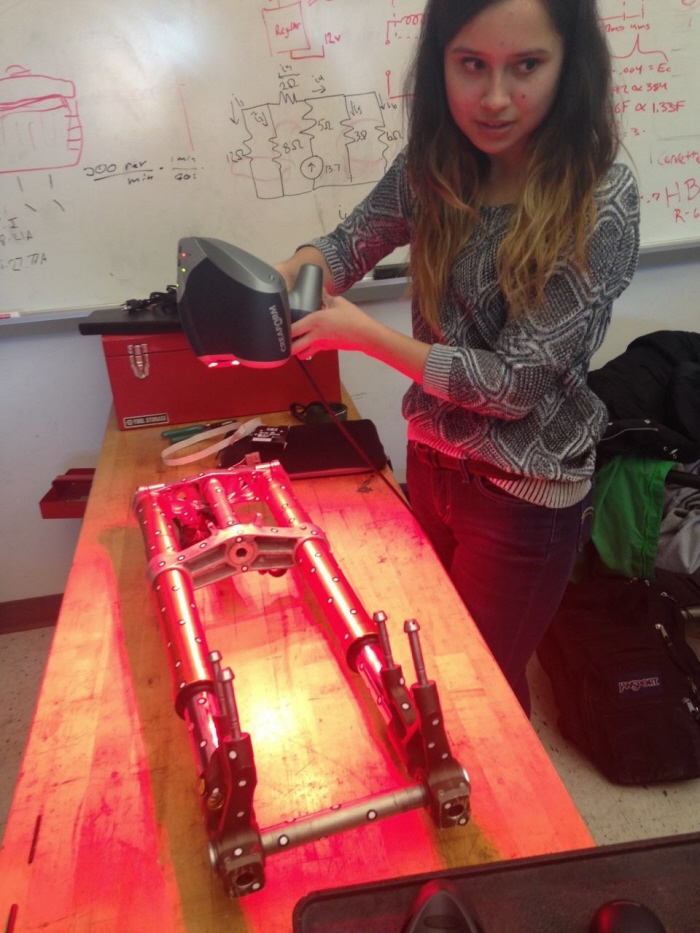

Scanning the front fork using a Creaform scanner. 2015

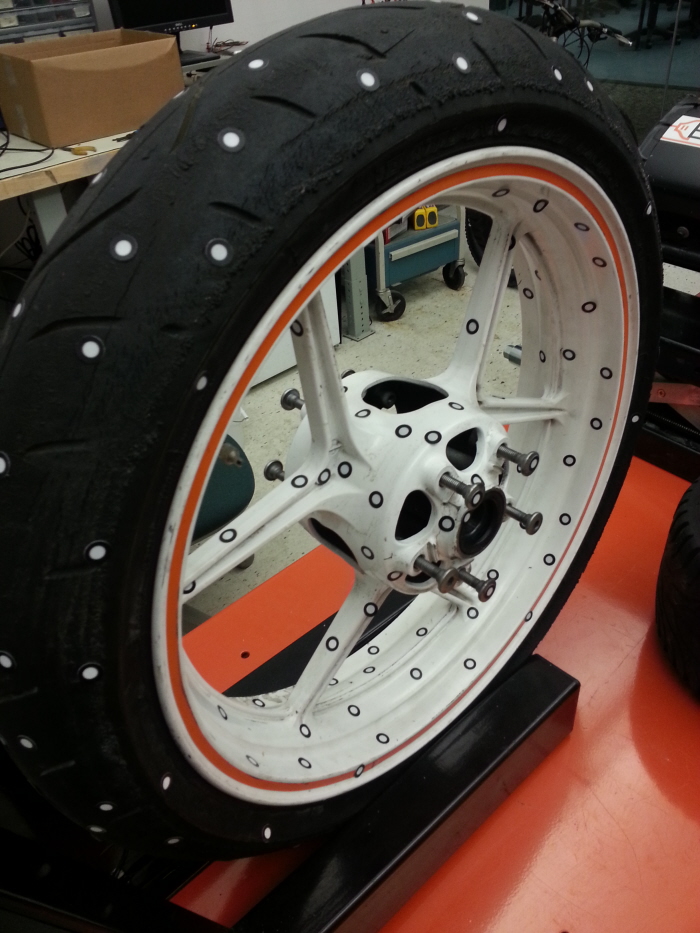

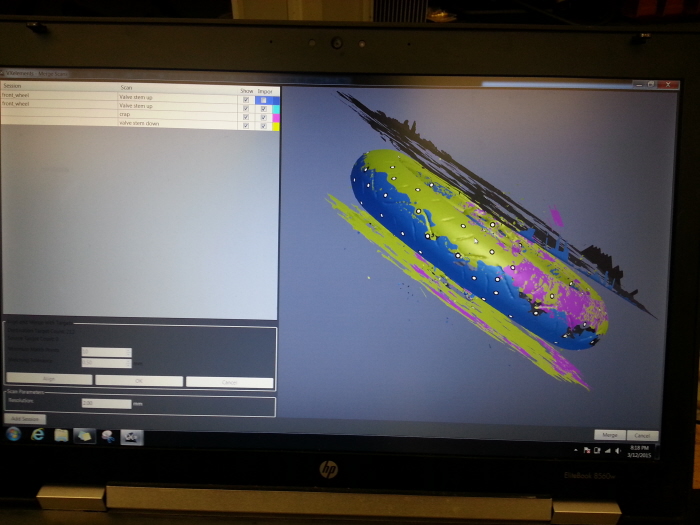

Preparing the rear wheel for 3D scanning. 2015

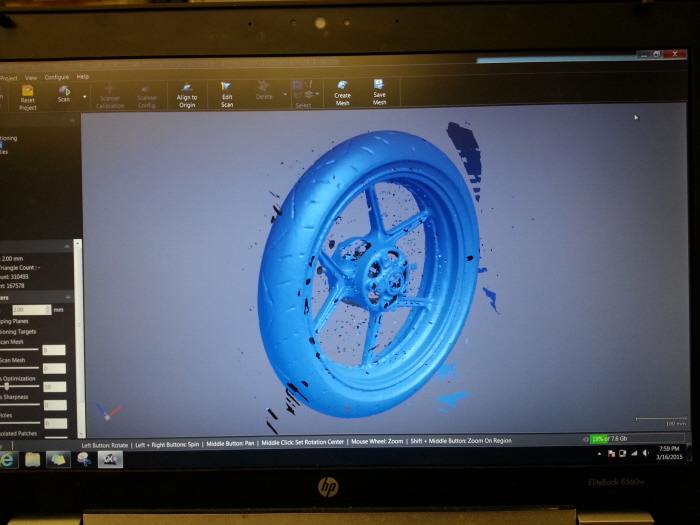

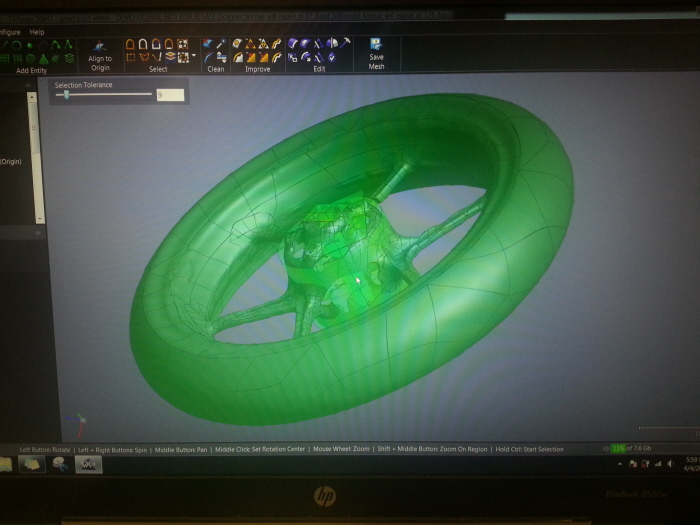

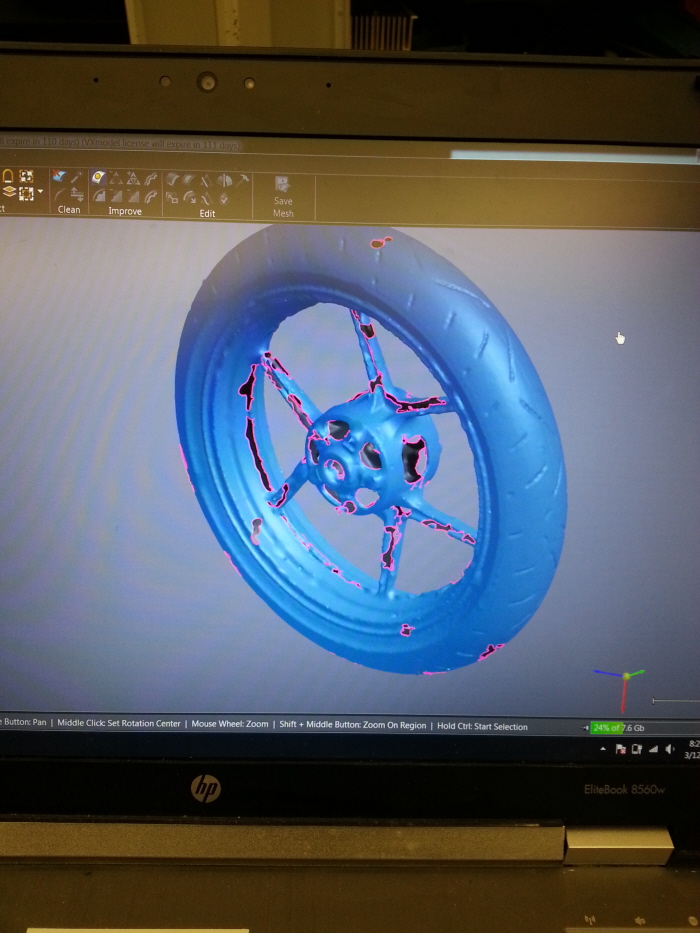

Final 3D scan of the rear wheel. 2015

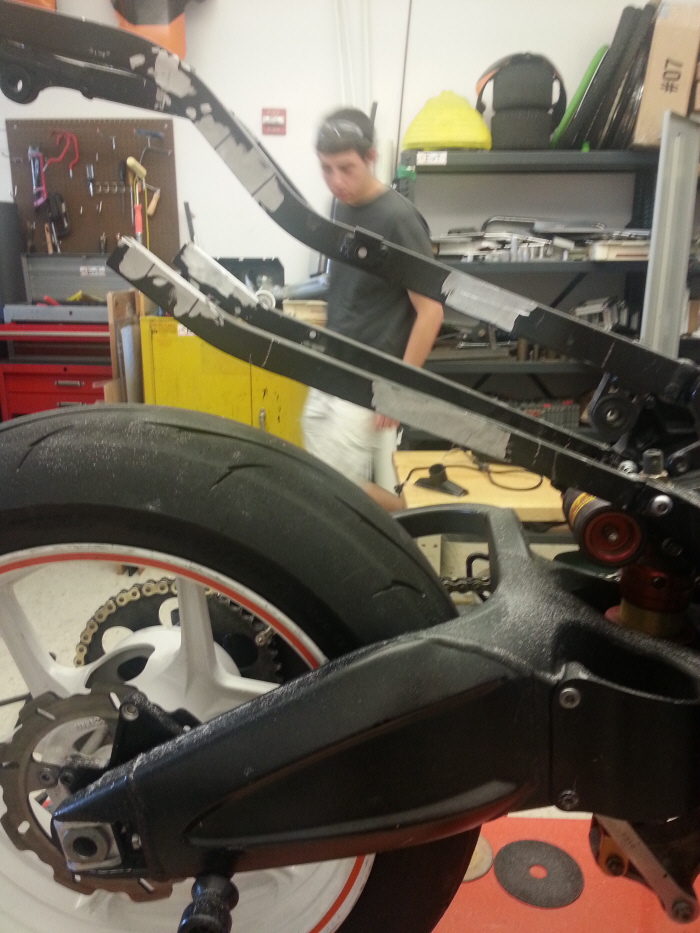

Disassembled the rear sub-frame to make room for the motor controller. 2015

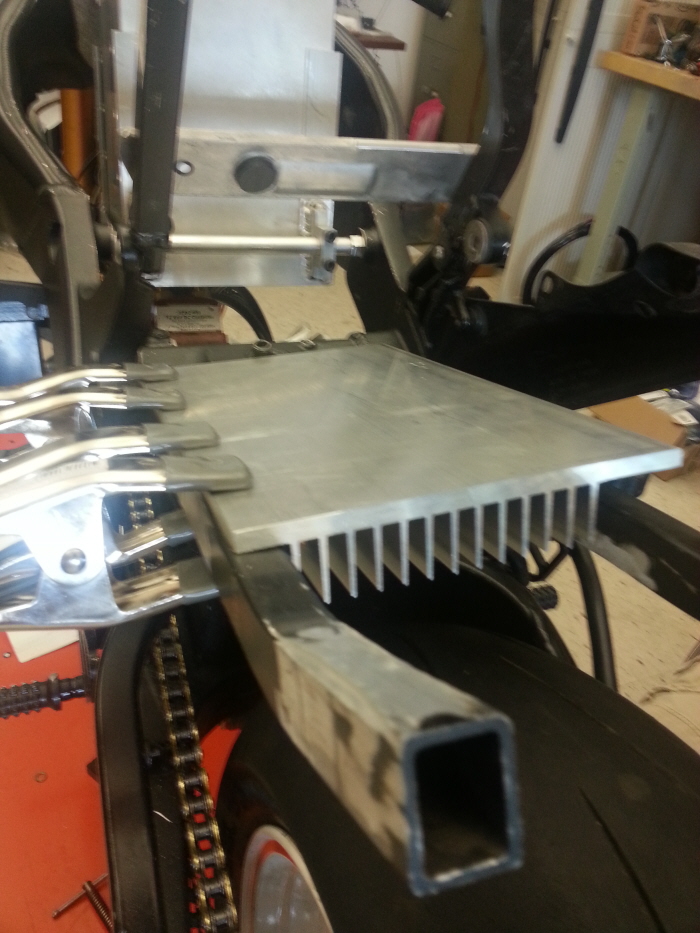

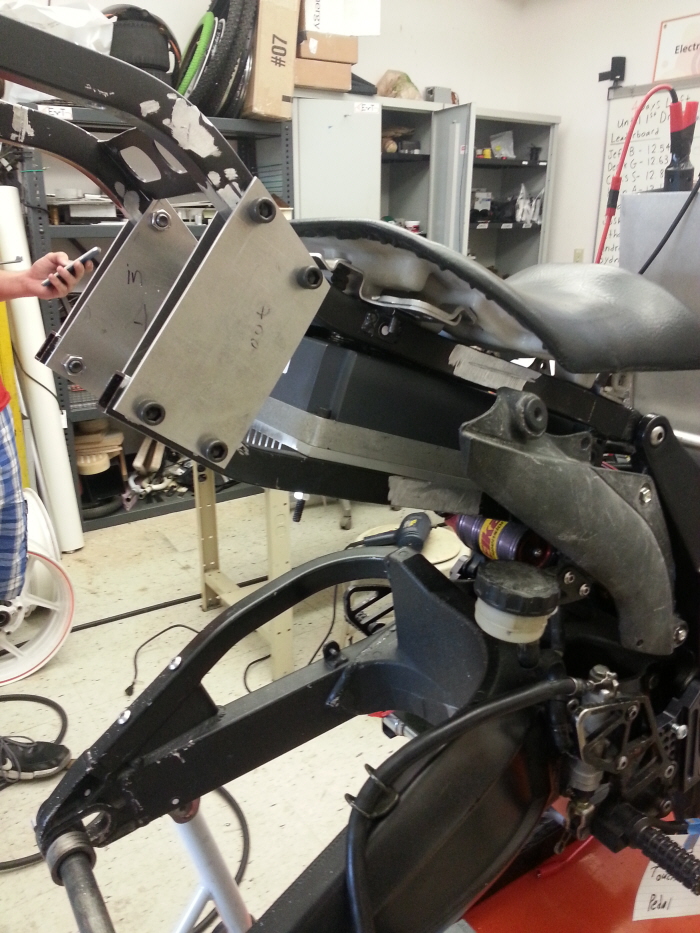

Fitting the heat sink to the sub-frame. 2015
Final motor controller mounting, summer of 2015.

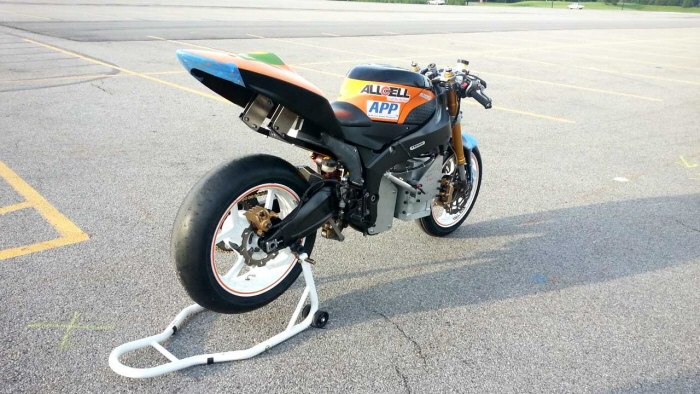

Finished motorcycle, summer of 2015.
Our driver Karl racing our bike at the 2015 eMoto Racing Series in New Jersey.
gLike
EVT REV1 2014-15
The RIT Electric Vehicle Team designed and built an electric motorcycle to compete in the July 2015 eMoto Racing series in NJ, where we won the intercollegiate race. In addition to general CAD work, I designed the motor controller mounting within the existing sub-frame of the motorcycle.
