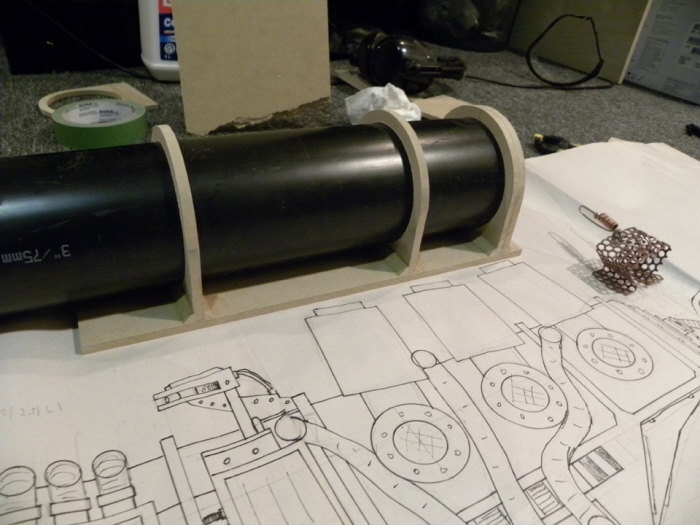

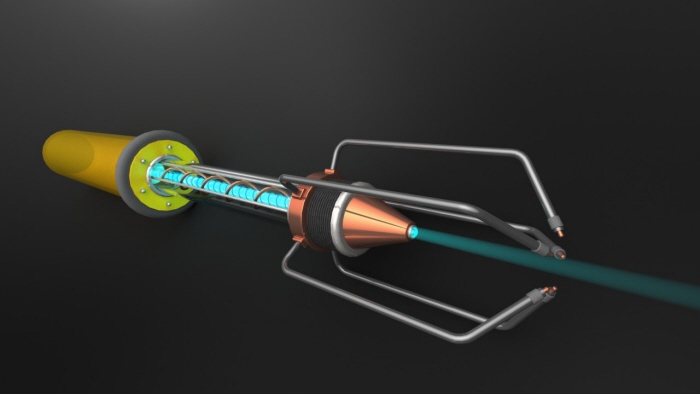

Blueprint - Full scale drawing of plasma rifle prop
stage 1 main body
pressure chamber
viewing ports
back door

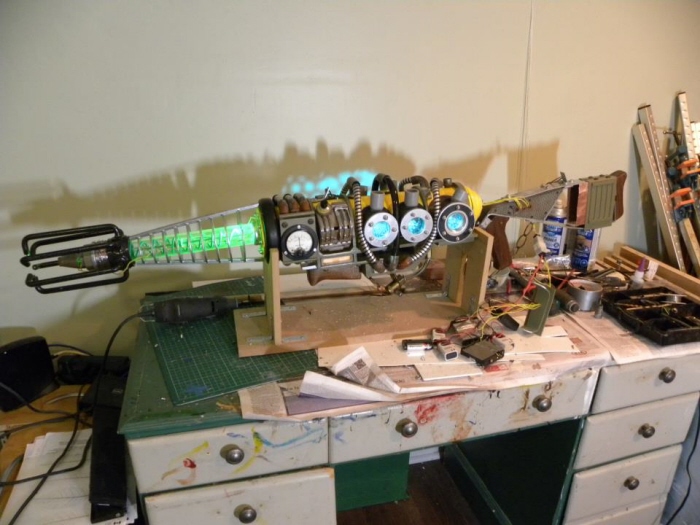

Lighting Stage 1 - It's ALIIVVEEE!!!
dials and switches
heat vents
rifle main body 1

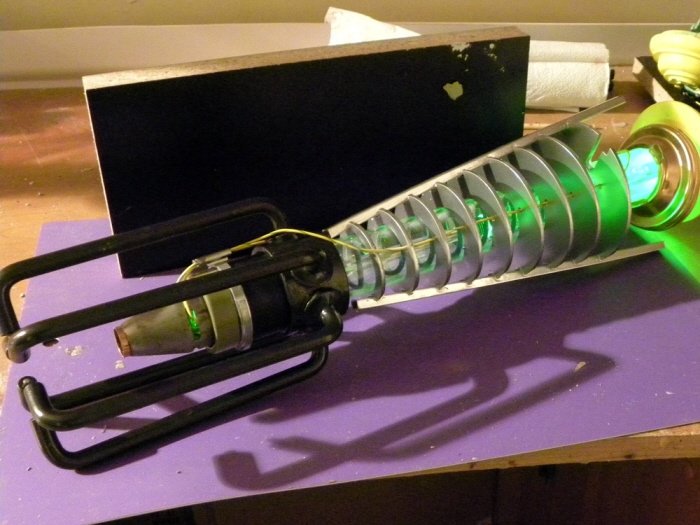

electromagnetic array

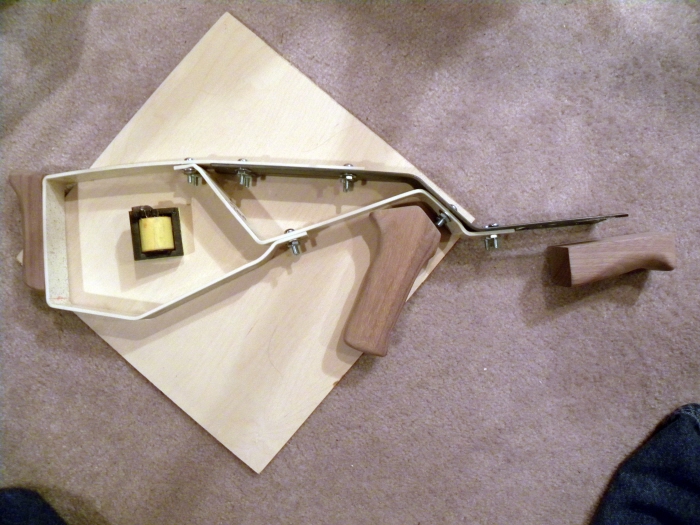

stock assembly

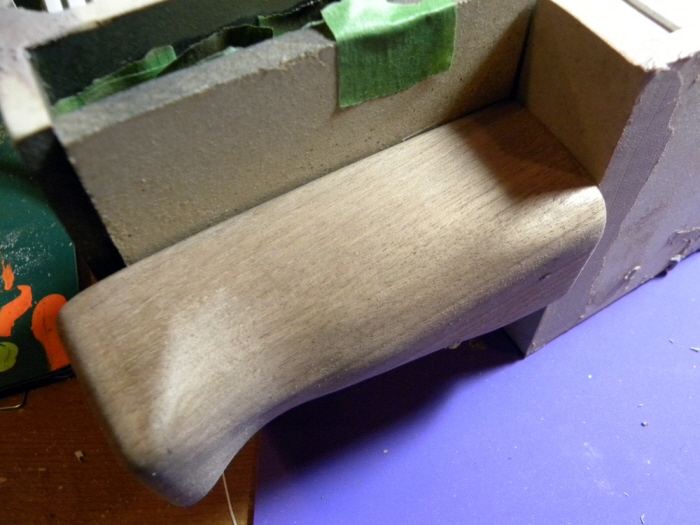

walnut grips
label trials.. needs cleaning up..

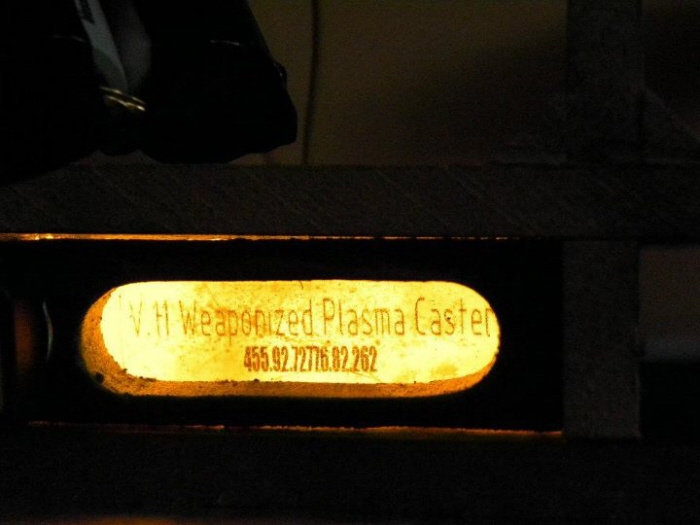

Brand name

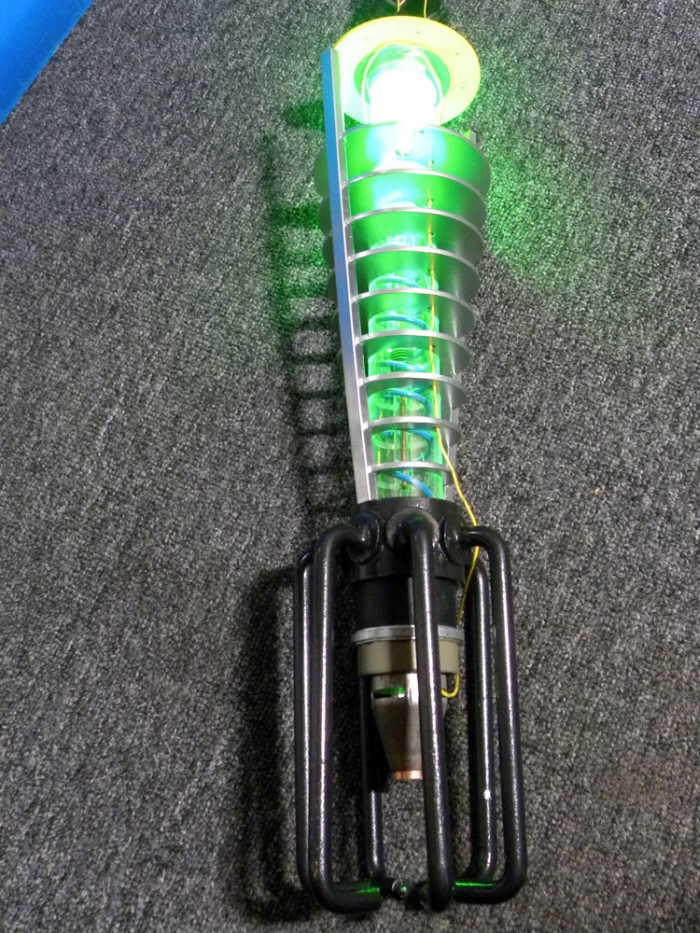

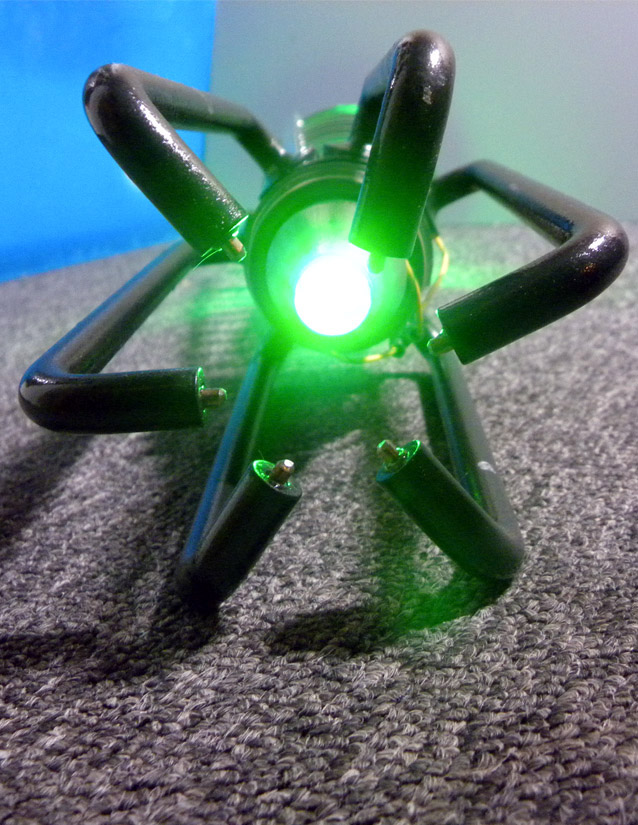

The Business End - The light in the barrel comes from an LED array at the far end of the tube. This light is transferred down to the end of the barrel via an acrylic tube. Still needs weathering and final paintjob (plus the back 3/4 of the rifle :) )

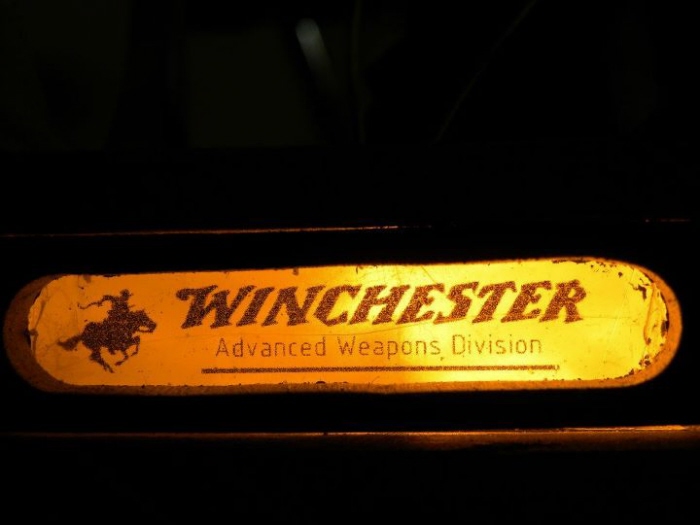

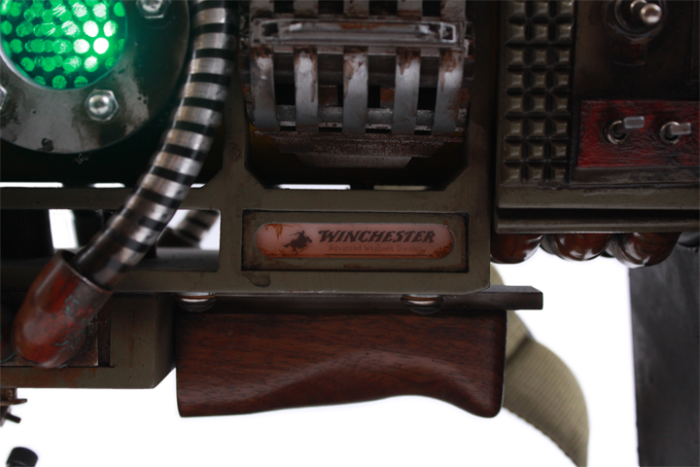

Better Branding Panels.. router trumps drill and scroll saw any day :)

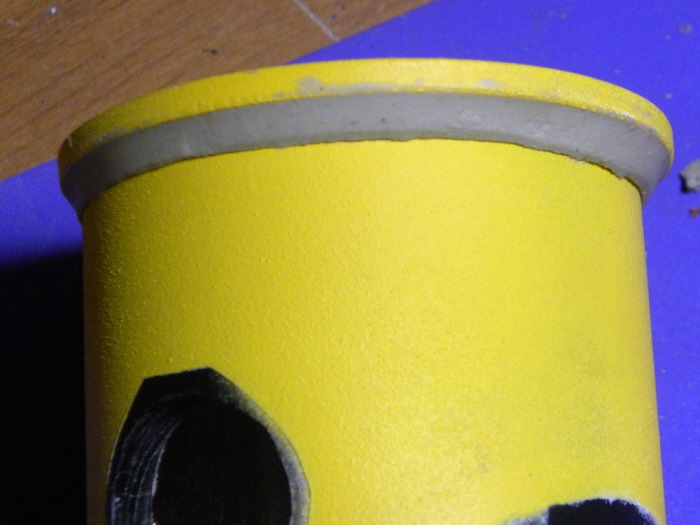

The bondo process...

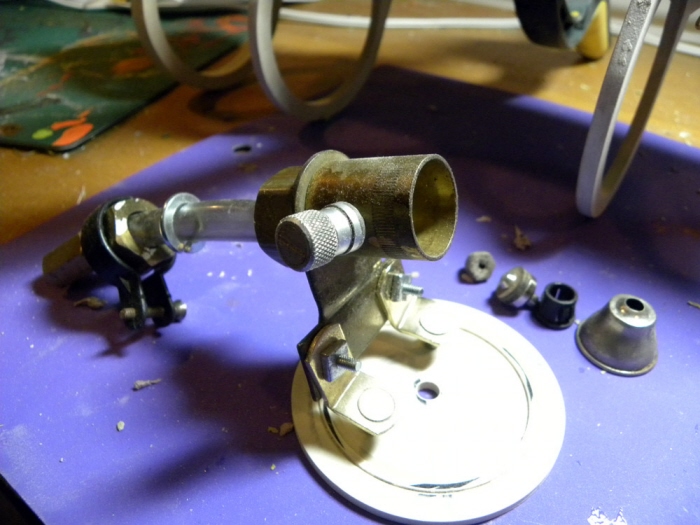

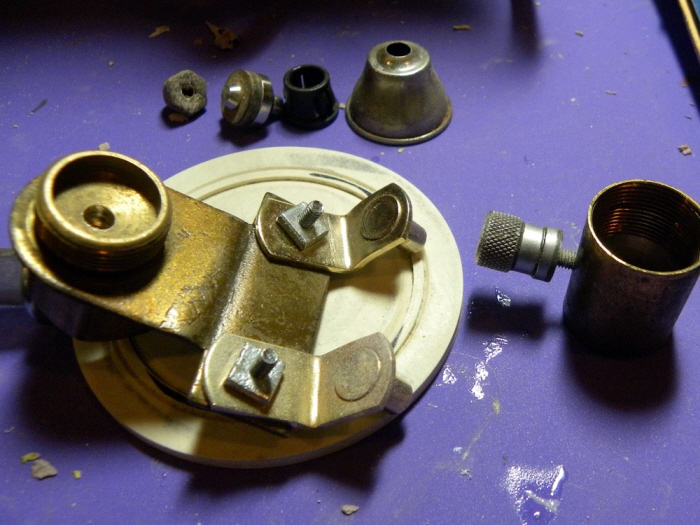

old hardware.. nice to have some stuff pre-weathered :)
glue up of the main body sections... I can't wait to paint this part !
Body frame finally done! - Now just another few coats of primer, bondo, and hours of sanding :)

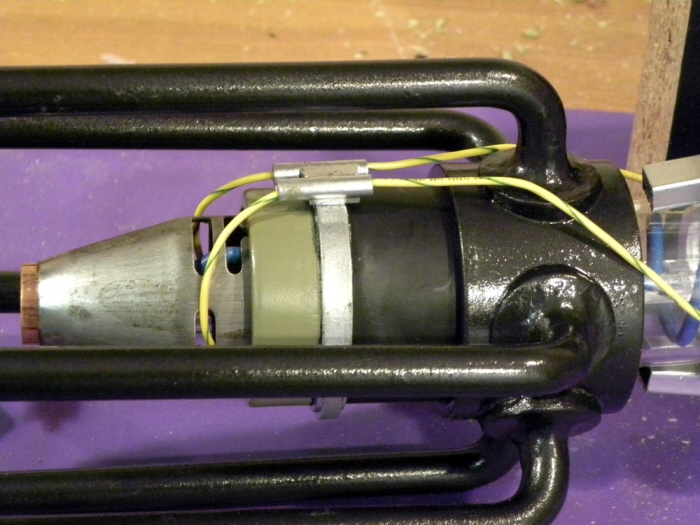

Internal workings of the barrel.
Mobile upload.. better pics to come. Still need to weather and add better sling.
mobile upload
mobile upload
mobile upload
gLike

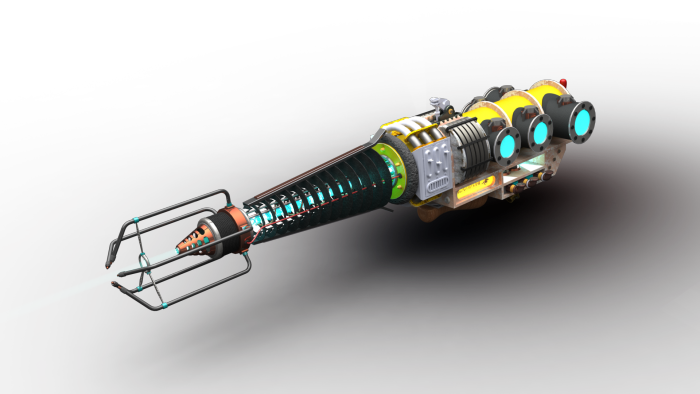

The Plasma Rifle
MANY THANKS TO SUNSET6 STUDIOS FOR THE FINAL PHOTO SHOOT!
