Concept rendering of tradeshow booth design for IBS 2018 in Orlando. A Solidworks Assembly file was imported into the Keyshot program. 3D figures were also imported into Keyshot.
Concept rendering importing a Solidworks Assembly file into the Keyshot program. 3D figures were imported into Keyshot.

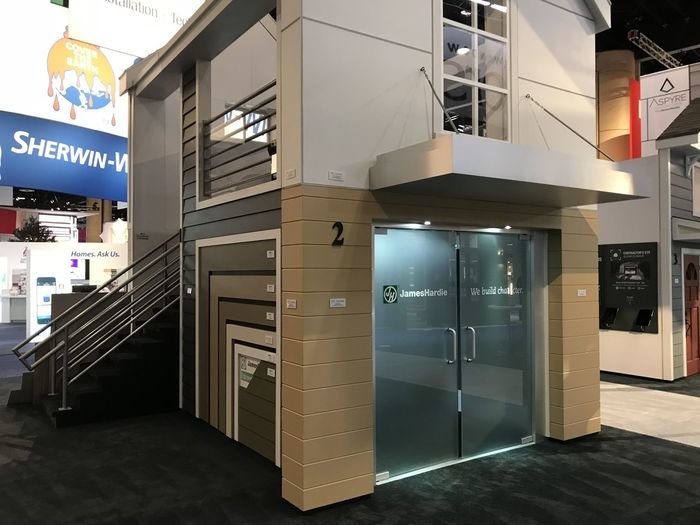

Mixed Use Display for IBS Show - This Mixed Use Display is one of four large sections to this large booth. The product displayed would be used for both commercial and residential applications. I designed every detail in this section including a Trim product display seen behind the front desk.
Sketch of modular tradeshow booth that can be set up as a 10' x 10' or 10' x 20' booth. Photo of actual booth setup before shipping is in following slide.

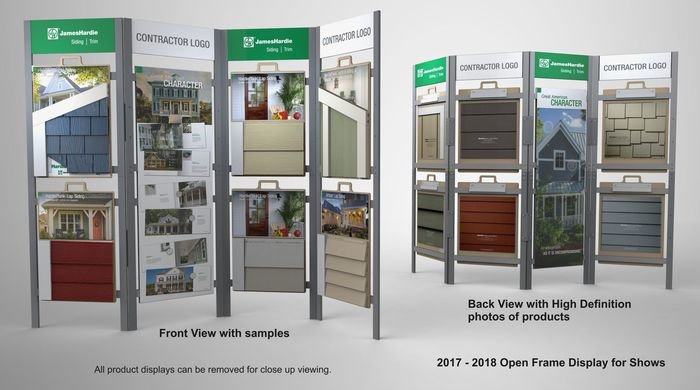

A 10' x 10' modular open-framed tradeshow booth that can be set up by show attendee. Individual product displays can be removed for individual showing or arranged in any order during setup.
gLike
Trade Show Booth Design
All of these displays and tradeshow booths were designed to show the product when installed. Installation details were sometimes shown by a cutaway that showed each layer of construction. These designs were developed in 3D CAD using the Solidworks program and then usually rendered using the Keyshot program.
