2017 Racecar - Suspension Lead

This was a learning year, which consisted of some sensor data analysis to develop roll rate requirements, and a partial redesign of the suspension linkage and anti-roll bar system, including Delrin machined bushing mounts.

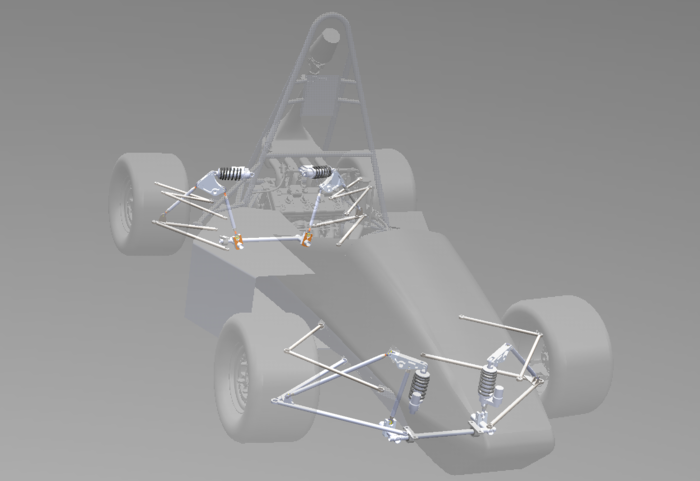

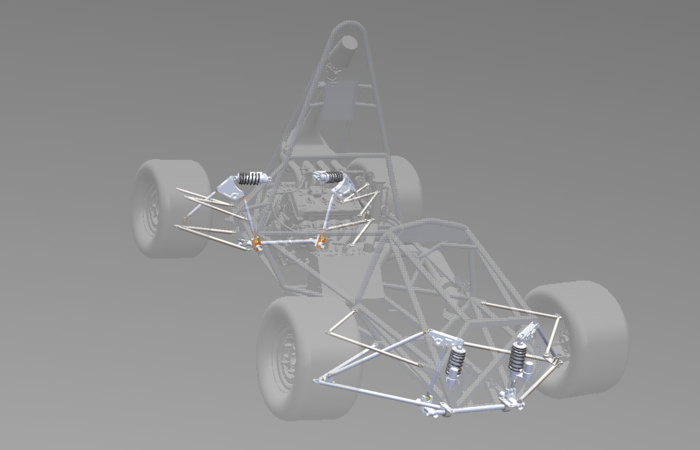

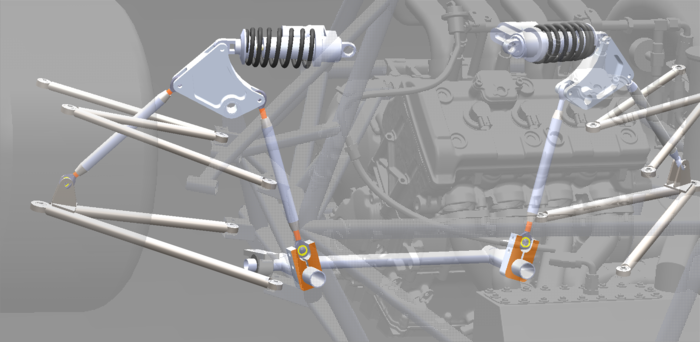

The car assembly, with the non-transparent items being either designed by me completely or with direct involvement.

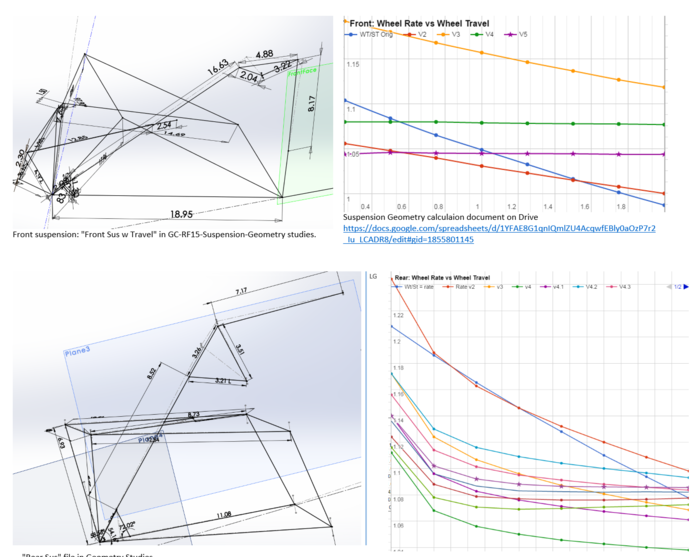

Various iterations of the linkage motion ratio.

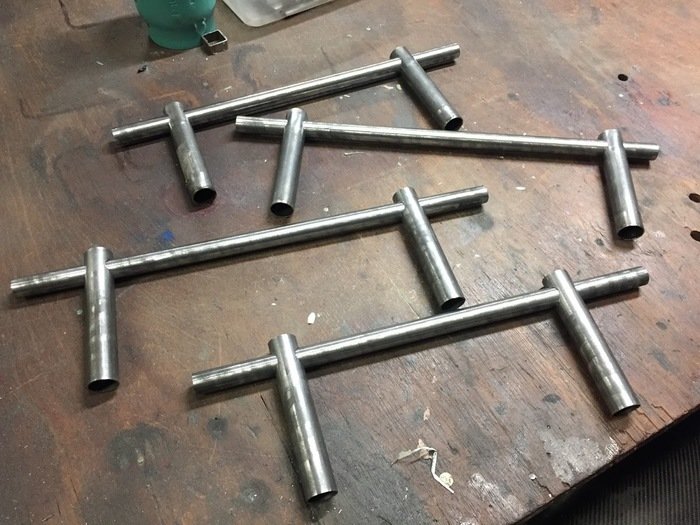

These were the antiroll-bars, ready for welding.
