Rendering of the detailed Product (SolidWorks)

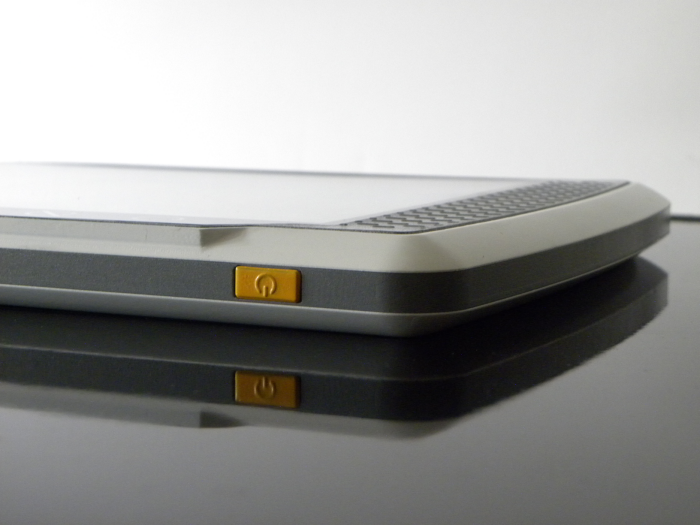

1:1 modell of one of the handheld concepts
Dialysis Steps: the diagram shows all necessary interaction steps between User (Nurse/Doctor) the Dialysis Machine and the Patient.
The Diagram is based onto a Task-Analysis, which was done in several Dialysis Clinics (Result of a Research in the Users Environment)

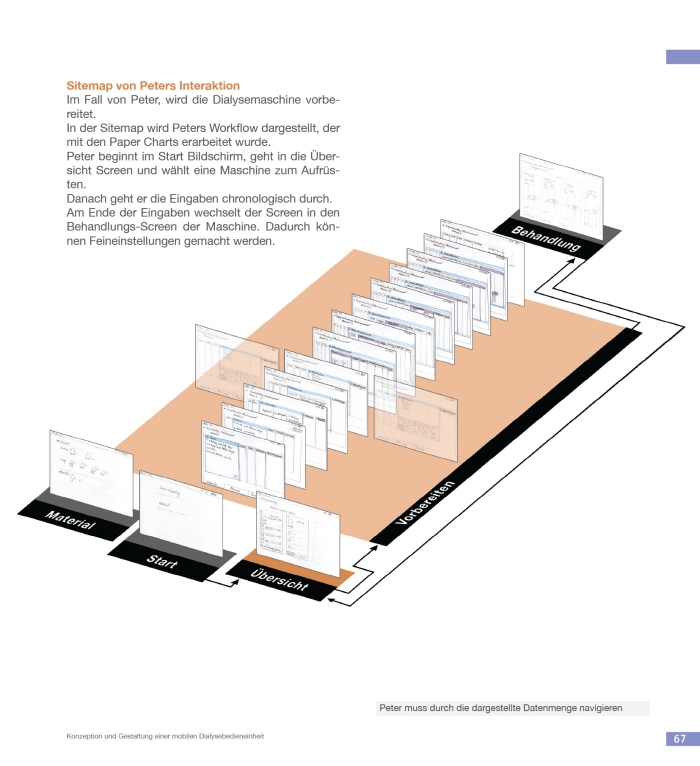

workflow
hierarchy of functions

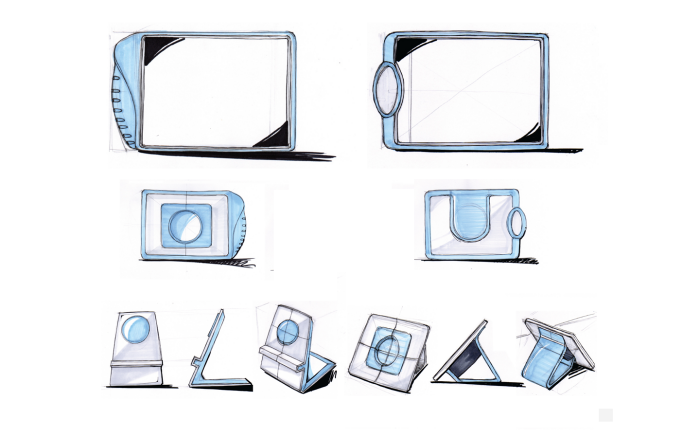

First Sketches of the Handheld
Renderings of one Design (non-detailled) -Rhino
gLike
Dialysis: Mobile Device for Dialysismachines
For a Dialysismachine, I created a mobile device and an interaction concept, including user interface design. The idea of the device is, to monitor one or several machines from distance.
This was my Master Thesis.
