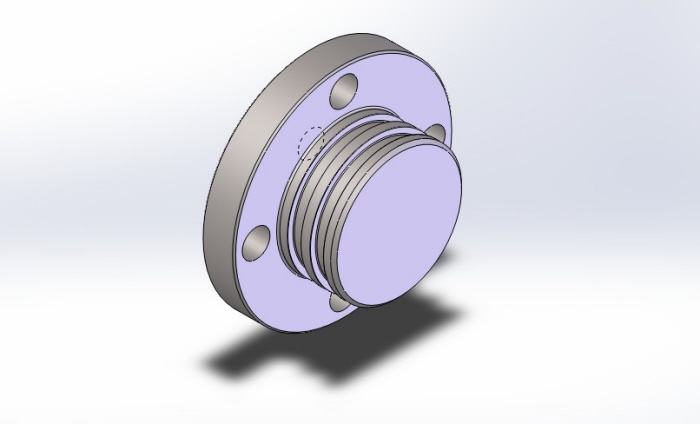

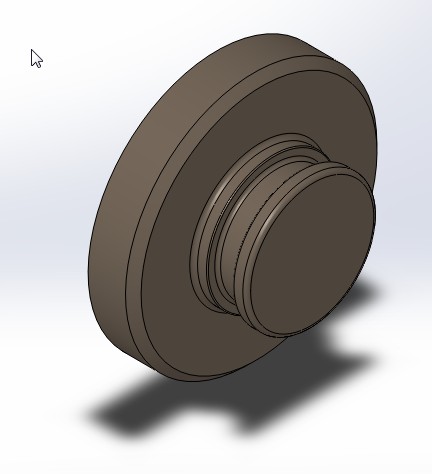

End Cap Fixture

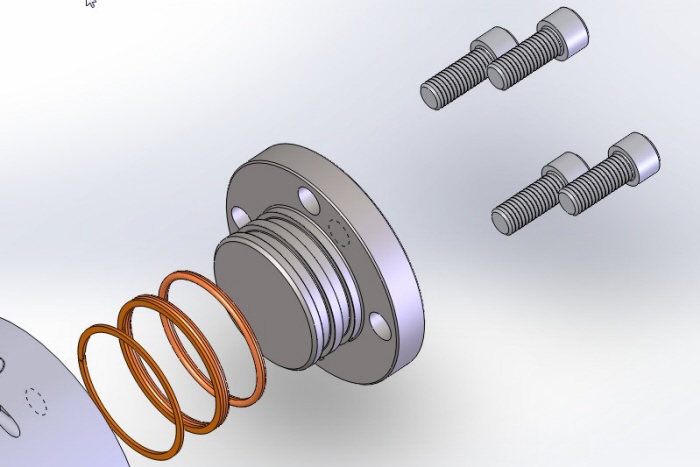

Exploded view of end cap, screw, and o-ring assembly.

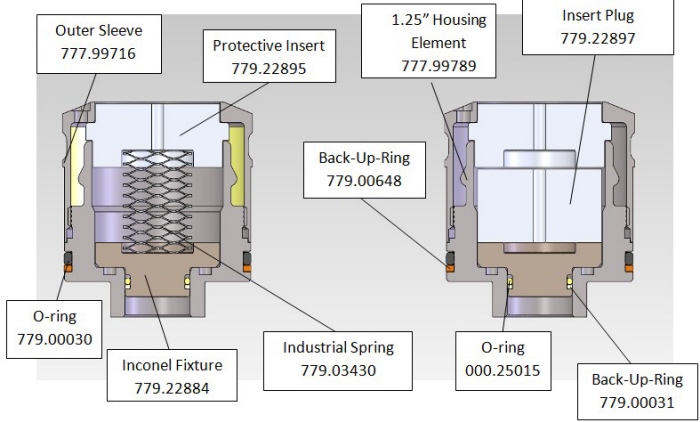

Cross-Sectional Views of Elements that are housed in the two port holes.

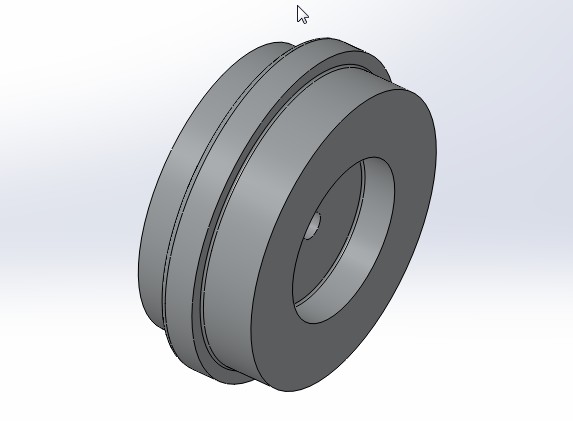

Inconel Insert
Protective Insert
Housing Element
Isometric of Outer Sleeve

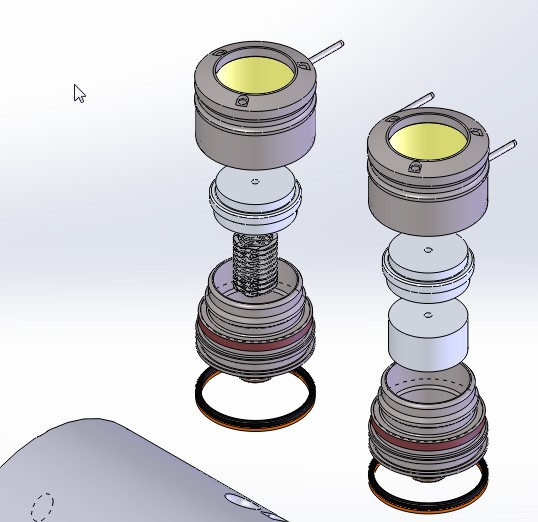

Breakout View of Elements in port holes

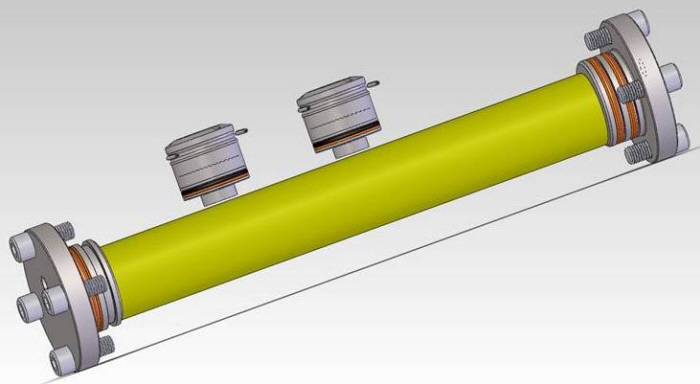

Assembly view without Mandrel

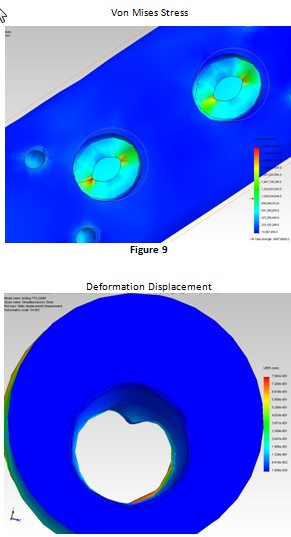

FEA analysis on the chasis and port holes.

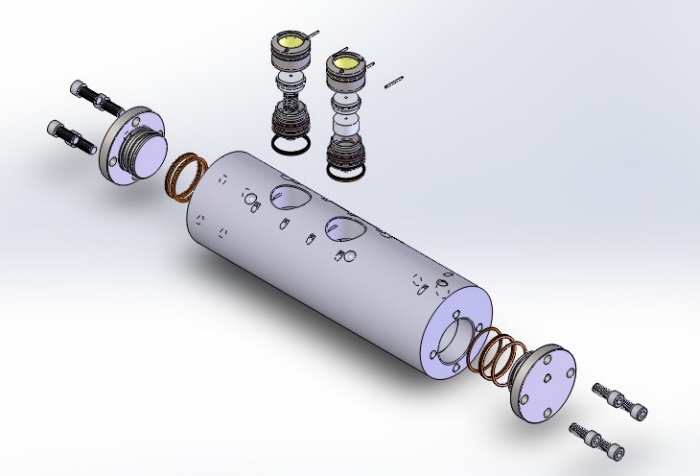

Full Assembly Breakout
gLike
Pressure Testing Assembly and Parts Creation
As a Schlumberger Mechanical Engineering intern, I worked with designers and engineers to help design parts and pressure test to help validate the rating of an oil exploration tool. The two holes were the area in question, so sealable end caps, tool housing cuts, and parts similar to the sensor placed in the holes had to be designed, machined, and tested. Testing at different environments/pressures were conducted. FEA analysis was conducted and a final testing/project report was written.
