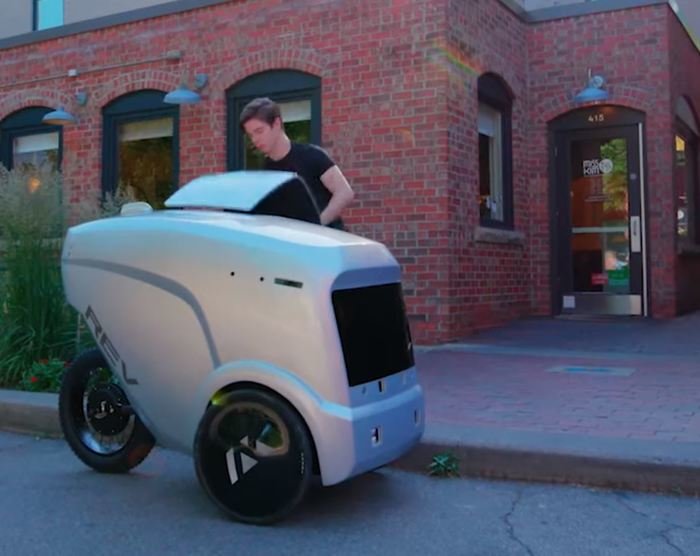

Competitive products
Three wheel inspiration
Platform
Three wheel inspiration

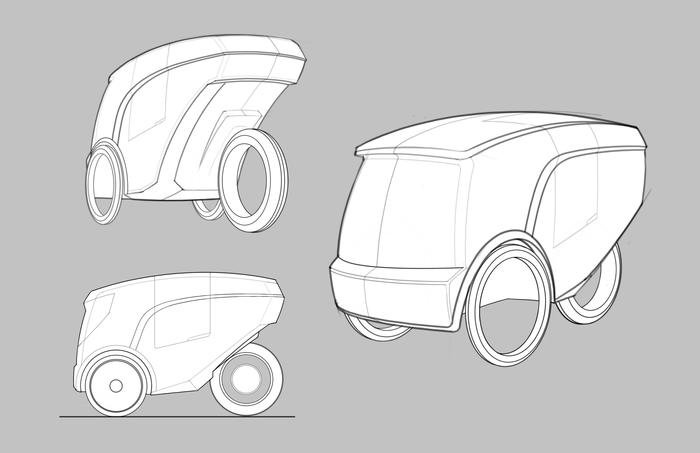

First round of sketches to set compass needle with client and I
No. 9 and No. 11 were the two selected for further quick development. to narrow it down to one.
No. 9 was chosen and this image was created to show scale and context.
Quick Isometric view
One to one side view provides the center line for clay model development
CFM inspiration
CFM inspiration
CFM Inspiration
